Pinnacle GOS197 Manual

HD PREMIUM SHELVING UNIT
1600H x 1270W x 610Dmm
ITEM NO: GOS197
Very Important: Unpack the unit and confirm that you have all the parts listed. Assemble the unit on
a solid, level surface. Avoid carpet. You will need the assistance of a second person during assembly.
Safety tip: For added safety and support we recommend you fix unit to a wall.
You will need the following: 2x Adjustable Spanner and rubber mallet.
Please note: When moving shelving unit lift using the uprights.

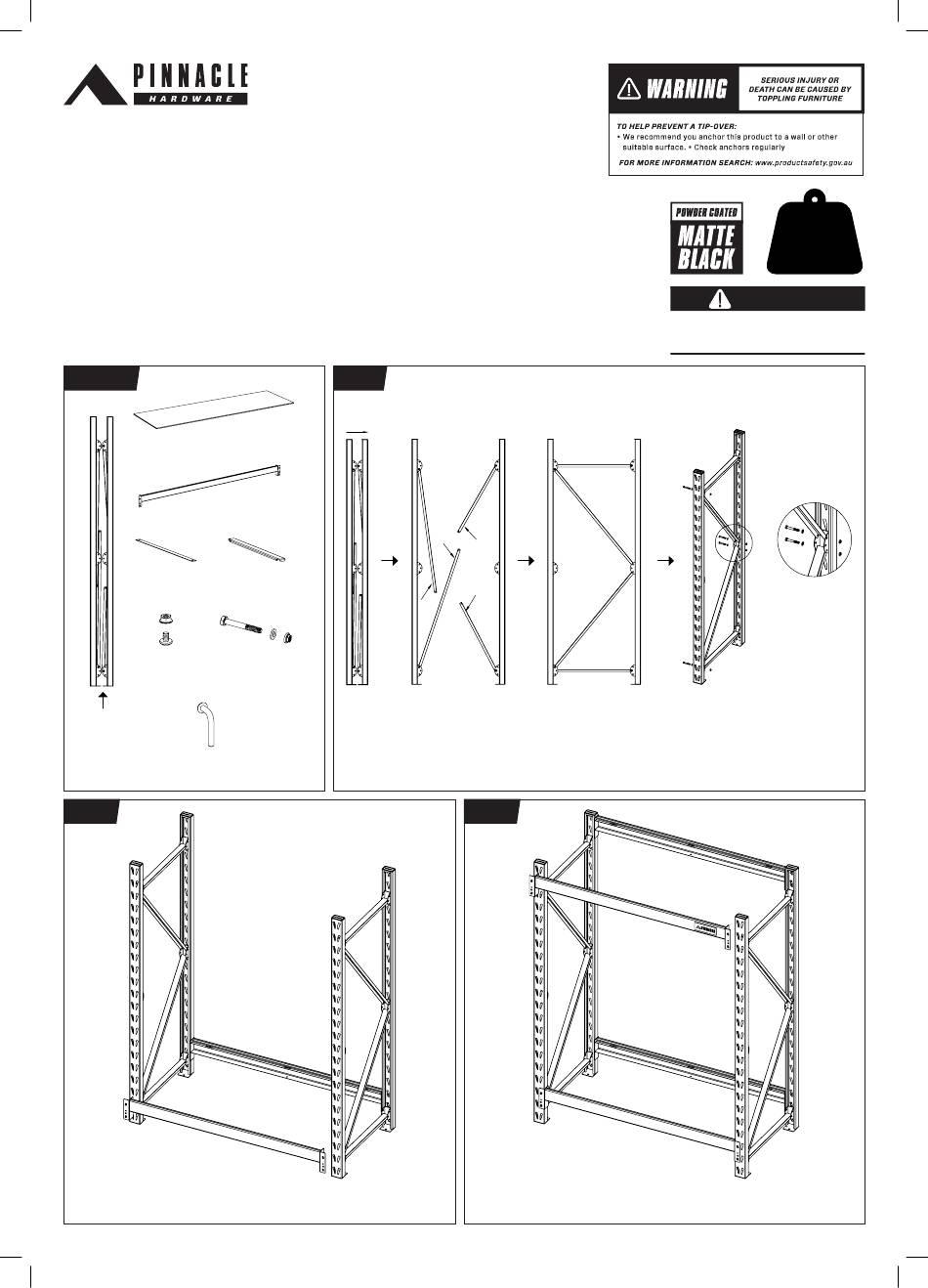

Parts List
Laminate Shelves x 3
Beams 'B' x 6
Brackets 'C' Braces 'D'
x 3
Bolts 'E' Bolts 'F'
x 6
Uprights 'A' Rivets 'G'
x 2 x 12
NOT TO SCALE
Step 2
Attach Beams 'B' to each Upright 'A' using the bottom keyholes
and tap into place using a rubber mallet.
Step 1
x 9
x 8
Separate legs of first Upright 'A', unfold the attached braces (as per the above diagram)
and fix the legs together using the provided Bolts 'F'. Please note: washers should be
positioned on either side of each brace. Repeat above steps for second upright.
Step 3
Repeat this step using two Beams 'B' for the top keyholes, tapping
them into place with a rubber mallet.
800
kg
PER SHELF
SAFETY TIP:
When assembling or installing
this product wear protective
gloves and eyewear.
