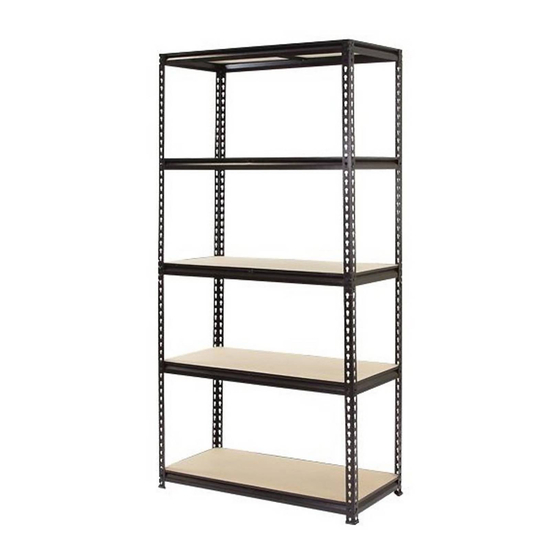

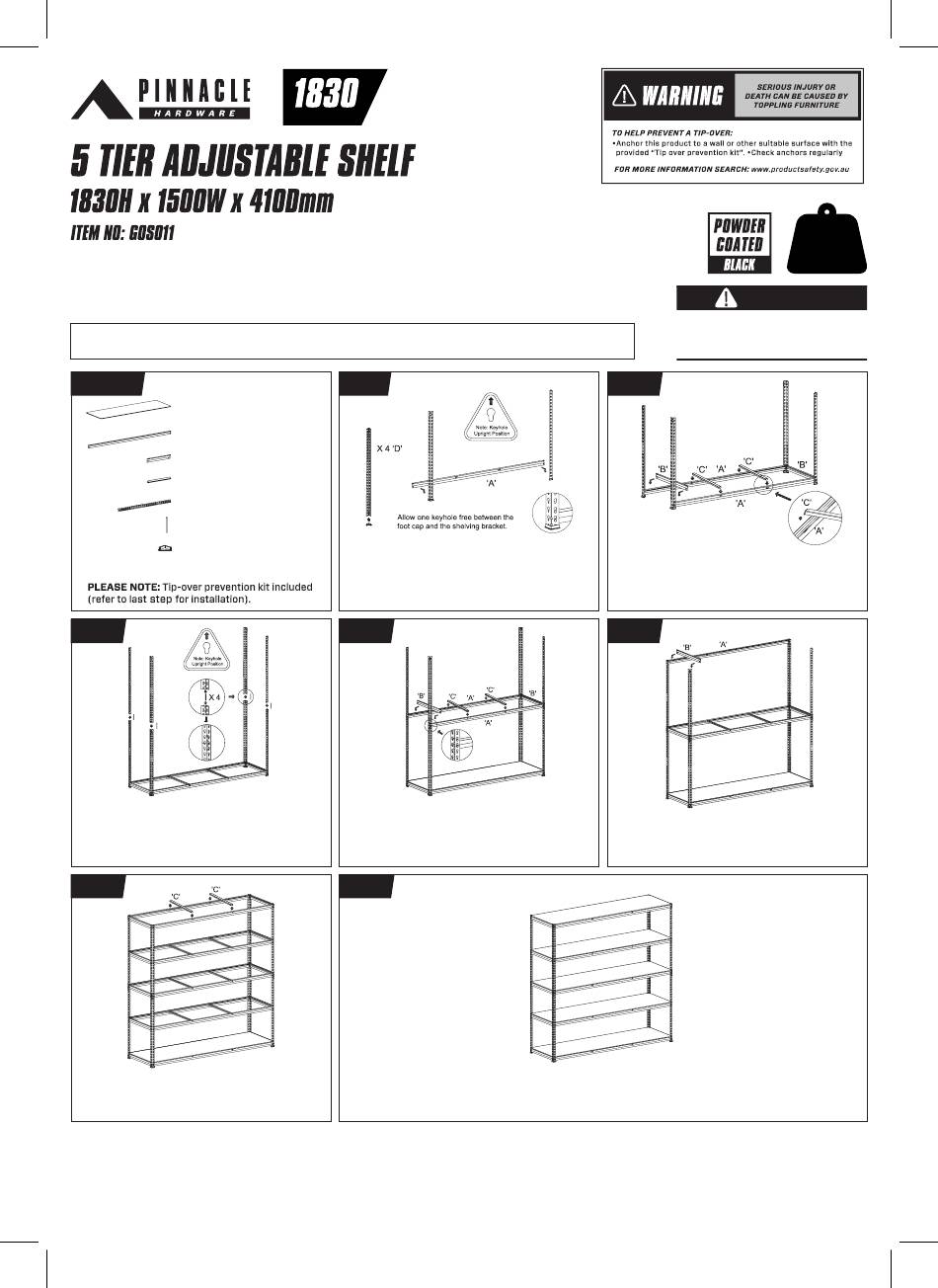

Pinnacle 1830 Series Instructions

Very Important: Unpack the unit and confirm that you have all the parts listed. Assemble the unit on
a solid, level surface. Avoid carpet. You will need the assitance of a second person during assembly.
Safety tip: For added safety and support we recommend you fix unit to a wall.
You will need the following: Rubber Mallet.
Please note: When moving shelving unit lift using the bottom leg uprights.
For evenly spaced shelves (from bottom shelf): 12 Free Keyholes, 11 Free Keyholes, 12 Free Keyholes,
11 Free Keyholes.

Parts List

MDF Shelves
Brackets 'A
Brackets 'B'
Braces 'C'
Legs 'D'
Connector Pins
Foot End Caps
NOT TO SCALE
Step 3
Join the upper legs to the lower legs 'D' with the
connector pins. Note: The legs are designed to sit
directly on top of each other - do not overlap
them. Handy Hint: Flathead screwdriver may be
used to tap in connector pins.
Step 6
Fix remaining brackets to your desired height.
Ensure that braces 'C' are fixed to all shelves.
WARRANTY CONDITIONS: Any claim under this warranty must be made within 1 year of the date of purchase of the product. To make a claim under this warranty, take the product (with proof of purchase) to any
Bunnings store (for AUS customers see www.bunnings.com.au and for NZ customers see www.bunnings.co.nz for store locations). Pinnacle Hardware bears reasonable, direct expenses of claiming under the
warranty. You may submit details and proof of purchase to our support centre for consideration. The warranty covers manufacturer defects in materials, workmanship and finish under normal use. This warranty is
provided in addition to other rights and remedies you may have under law: Our goods come with guarantees that cannot be excluded under the Australian consumer law or Consumer Guarantees Act 1993 (NZ). You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure. This warranty excludes damage resulting from product misuse or product neglect, any modifications, additions or alterations to the product
including the addition of extra shelves. Additions or modifications can compromise the structure and safety of the product. The warranty covers domestic use only and does not apply to commercial applications. This
warranty is given by Pinnacle Hardware, ABN 87 614 496 196, 28 Hudson Court, Keysborough Vic 3173, 1800 349 776, Email: support@pinnacle.net.au. Products sold in New Zealand are imported by Bunnings New
Zealand. 'Pinnacle' is a trademark. © Pinnacle Hardware. Suitable for model number GOS011.
SERIES >>
Step 1
x5
x10
x10
x10
x8
x4
x8
Place foot end caps onto the bottom of the legs 'D'.
Note upright position. Place bracket 'A' onto the
legs 'D'. A rubber mallet can be used to lightly tap
all brackets into the keyholes on the legs.
Step 4
Place MDF board on bottom shelf to minimise
buckling. Fix brackets 'B' so that top rivet sits on
the upper legs and the bottom rivets sit on the
lower legs. Repeat with brackets 'A', followed by
braces 'C' as shown.
Step 7
Place the MDF boards in the shelves. Ensure that they are sitting flush against the
edge of the shelf brackets.
PLEASE NOTE: Refer to next page for attaching the provided Tip-over prevention kit.
SAFETY TIP:
When assembling or installing
this product wear protective
gloves and eyewear.
Step 2
Use shelf bracket 'B' for the side brackets using
the bracket 'A' from Step 1 as a guide for height.
Use same shelving brackets for opposing sides as
shown in the diagram. Place brace 'C' as shown.
Step 5
Fix brackets 'B' and 'A' to the top of legs 'D'.
Note: MDF shelf should sit flush with the top of
legs 'D'.
200
kg
PER SHELF
