Summary of Contents for Iso ISOJET Cleaner 6

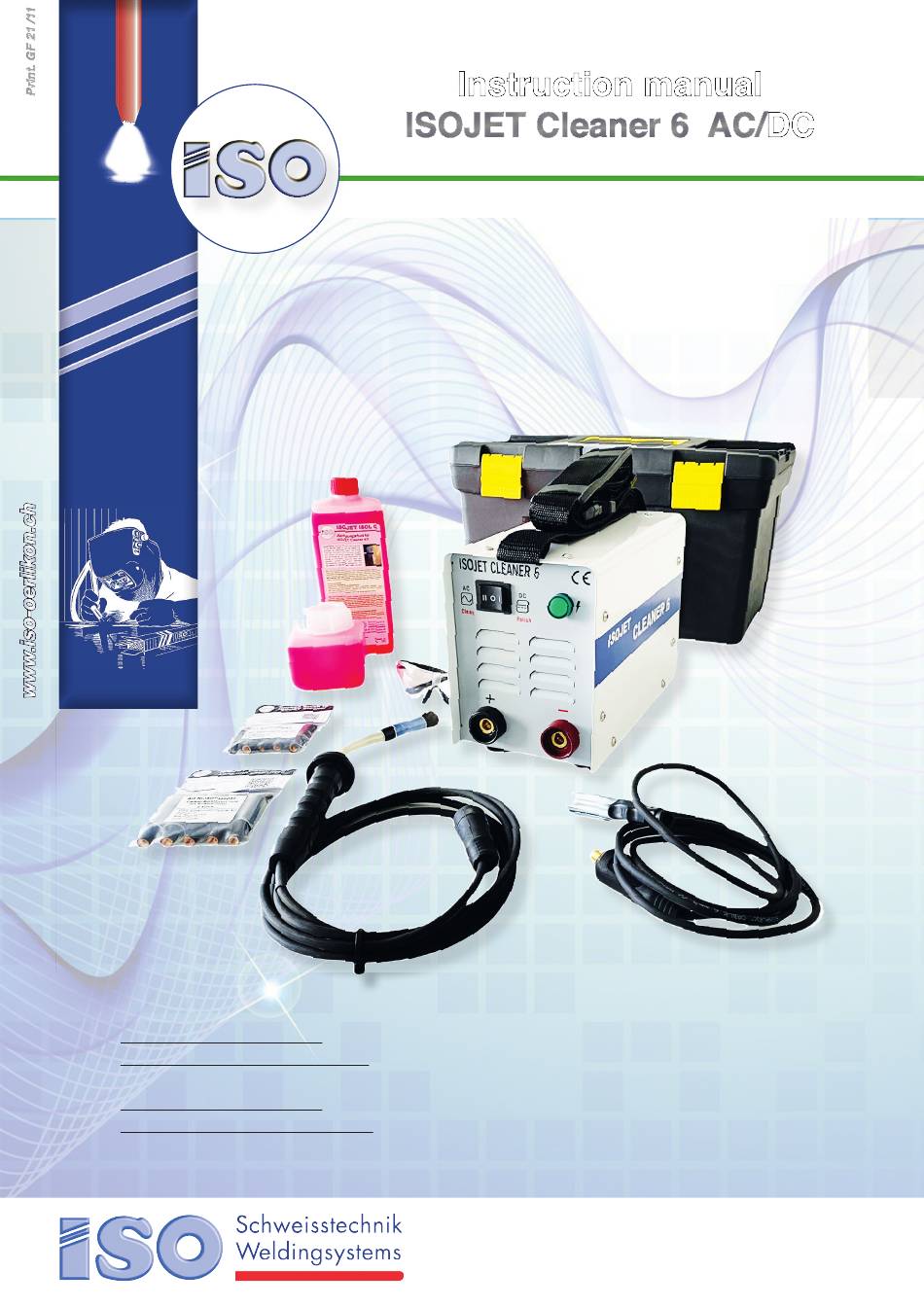

- Page 1 Aktion Aktion Instruction manual Instruction manual Type ISOJET Cleaner 6 Red = primary voltage 110 V Type ISOJET Cleaner 6 Blue = primary voltage 230 V Welding with you! Welding with you!
- Page 2 ISO-Oerlikon AG Schweisstechnik Hauptstrasse 23 CH - 5737 Menziken - Tel.: +41 (0) 62 771 83 05 - Fax: +41 (0) 62 771 84 54 - E-Mail: info@isoarc.ch...
- Page 3 ISO-Oerlikon AG Schweisstechnik Hauptstrasse 23 CH - 5737 Menziken - Tel.: +41 (0) 62 771 83 05 - Fax: +41 (0) 62 771 84 54 - E-Mail: info@isoarc.ch...
- Page 4 Making a movie requires a tiff/eps/ or jpeg file. Then a tool is manufactured for making print films - which are used with ISOL ES 2 and the ISOJET Cleaner 6 to make a mark using electrochemi- cals. The print films can be reordered at any time.
-
Page 5: About The Device
About the device With your new ISO-JET Cleaner 6 you have acquired an efficient and flexible system for gentle and fast removal of weld tarnish on stainless steel from material no. 1.4301 and higher. The unit is specially designed for very easy and fast handling. -
Page 6: Important Note Regarding Product Liability
Important note regarding product liability Due to the EU-Guidelines in force since 01.01.1990, the manufacturer is liable for his product only if all parts originate from the manufacturer and the device was correctly assembled and operated. If third-party accessories or replacement parts are used, the liability and the warranty may be comple- tely or partially invalid. -
Page 7: Device Protection
Dispose of the packaging material separately for recycling or at a collection point for recyclable materials. Remove one carbon brush from the blister pack. The remaining replacement brushes in the blister pack and the refill container with ISO-JET ISOL C can be stored away. You will not need these products for quite a while. - Page 8 Scheme workpiece connection Mains-plug red=110V blue= 230V red-plug on - - pol = red socket Ground clamp on black +pol. Carbon brush assembly to the applicator handle You have received 2 x 5 pieces of carbon brushes with the basic set. These cover almost the entire possible range of applications and can be used for flat and fillet welds, as well as for corners that are difficult to access.
- Page 9 When the bottle is empty, it is advisable to clean it with absorbent paper and then to refill with a new electrolyte from the ISO-JET ISOL C refill bottle. Immerse the carbon brush into the electrolyte until it is fully soaked.
- Page 10 Attention! Avoid inhalation of the vapors. Ensure sufficient ventilation! Use extraction systems whenever possible. Note! Dripping electrolyte can cause irreversible stains on marble or on other sensitive surfaces. Glide the brush using a slight pulling motion, not pushing, over the seam to be cleaned. High pressure only causes increased wear on the brush.
- Page 11 You also have the option of using art. no. K7000008, which allows you to adjust the hardness of the brush in a wide range by moving a Teflon sleeve. Especially for small seams in tight situations this can be an advantage! Depending on the heat input during the welding process, the seam must be run over several times to remove the oxidation completely.
-
Page 12: Troubleshooting
Parking the applicator During work interruptions and when transporting the device, switch off the device and place the applicator in the handle recess provided for this purpose. When transporting the device, wrap the cables around the device drum. You can grip the applicator at the same time when carrying it. The mass clamp is usually clamped to the rear equipment nipple. -
Page 13: Spare Parts
PU / 1 Pc. ISO7000028 Ground cable with terminal 60A, Black, SK 25 1 Pc L= 1,85m PU / 1 Pc. ISO7000006 ISOJET Cleaner 6 power source (without acc.) 110 V PU / 1 Pc. ISO7000004 ISOJET Cleaner 6 power source (without acc.) 230 V PU / 1 Pc. - Page 14 Aktion Aktion...
