Summary of Contents for Iso ISOJET Cleaner 5

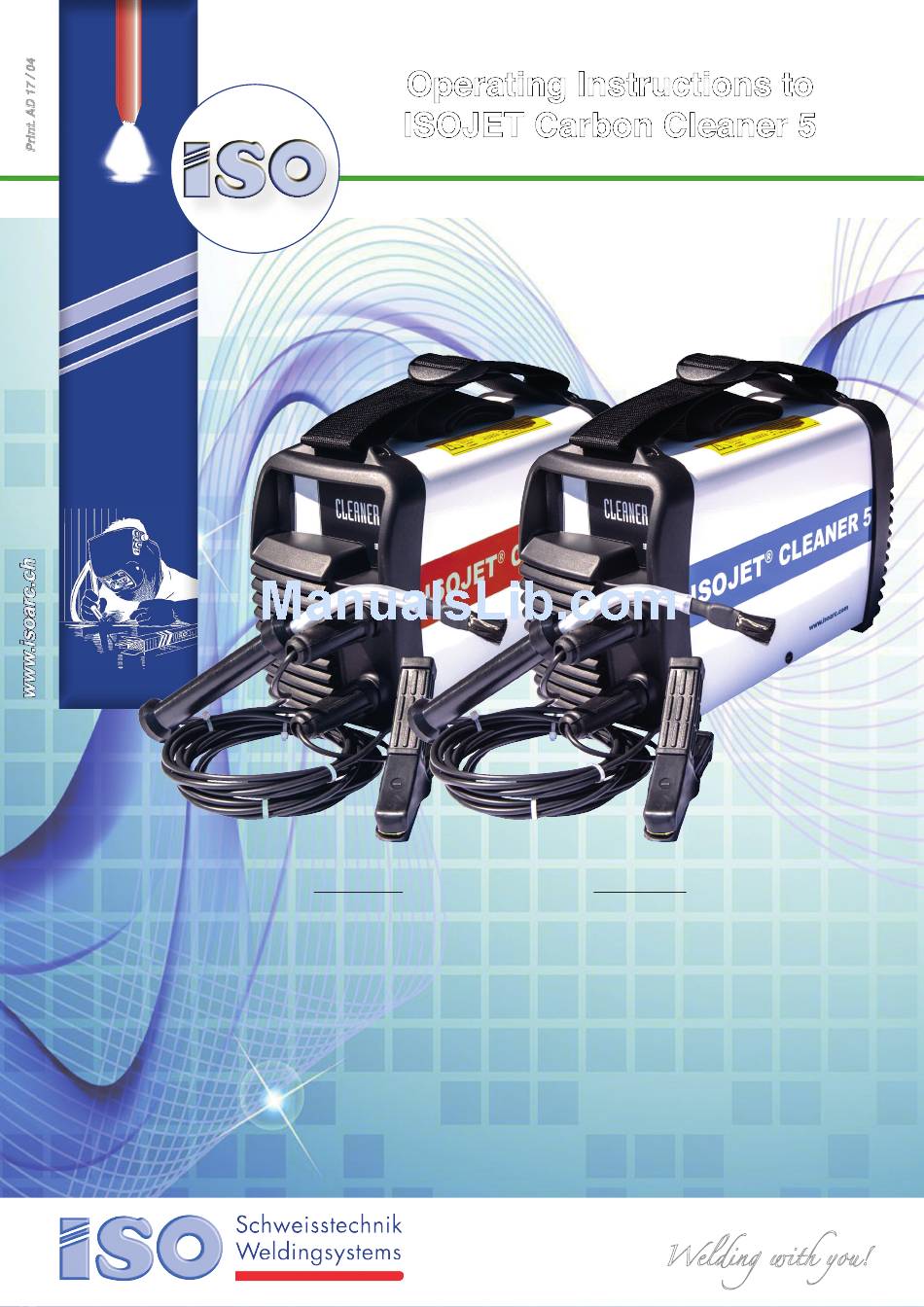

- Page 1 Aktion Aktion Operating Instructions to Operating Instructions to ISOJET Carbon Cleaner 5 ISOJET Carbon Cleaner 5 Red 110 V Blue 230 V Welding with you!
- Page 2 Managing Director ___________________________________ Ogni intervento o modifi ca non autorizzati dalla ISO ELEKTRODENFABRIK AG faranno decadere la validità di questa dichiarazione. Any tampering or change unauthorized by ISO ELEKTRODENFABRIK AG shall immediately invalidate this statement. Eingriffe und Änderungen ohne die Genehmigung von ISO ELEKTRODENFABRIK AG machen die vorliegende Erklärung ungültig.
- Page 3 Our products come with a one year guarantee as from date of purchase. The device With your new ISO-JET Cleaner 5 you have acquired an efficient and flexible system in order to carefully, quickly remove tarnish from Stainless Steel welds from materials 1.4301 and higher.
- Page 4 Important Notice regarding Product Liability According to the since 01.01.1990 valid EU-Guidelines, the manufacturer is only then liable for the product when all parts of the device originate from the manufacturer and the device was correctly assembled and operated. With the use of foreign accessories or parts, the liability and guarantee of the manufacturer either falls away entirely or partly.
-
Page 5: Device Protection
Deposit the packing materials in the respective recycling bins. Take out the carbon brush from the bubble pack. The rest of the replacement brushes and refill container ISO-JET ISOL C can be stored in its original packaging for later as these are usually only required later. - Page 6 Diagram Work Piece Connection Carbon brush assembly to the applicator handle You received 5 carbon brushes in the standard set. These almost cover every possible area of application and can be used for fl at welds, corner welds as well as diffi cult to reach corners. Attention! 1.
- Page 7 During use, the electrolyte becomes increasingly black. This discolouration is quite normal and generally does not infl uence the cleaning process. When the container is empty, dry it with absorbent paper and refi ll with new electrolytic substance from the refi ll container ISO-JET ISOL C.
- Page 8 Attention! Avoid the inhalation of fumes. Ensure suffi cient air-fl ow! Note! Dripping electrolytic solution can cause irreversible marks on marble or other delicate surfaces. Glide the brush using a slight pulling motion, not pushing motion over the, to be cleaned weld. More pressure only causes the brush to wear faster.
- Page 9 Furthermore using the carbon brush Art No. K7000008 you are able to regulate the hardness of the brush by moving the Tefl on housing. This can be especially useful for small welds in tight areas. Depending on the heat input during welding, you need to go over a number of times to remove all the oxidation.
-
Page 10: Troubleshooting
Parking the Applicator When not using the device or transporting it, replace the applicator in the bracket made for it. When transporting the device, wind the cable round the drum. You carry the applicator together with the device. The earth clamp is normally attached to the device at the back. - Page 11 ISOJET MCT 201 400 g PU / 1 pc renalpg ISOJET MCT 201 1000g PU / 1 pc 007hs ISOJET ISO MAGIC 750 ml PU / 1 pc 00744lt ISOJET ISO MAGIC 5000 ml PU / 1 pc corylS ISOJET MCT 800 Spray...
- Page 12 Spare Part Handle Rear cover Cover Trafo Mains cable Front cover Straight clamp round cable Green Led Bipolar switch Dinse...
- Page 14 Aktion Aktion Technical specifications ISOJET® Cleaner 5 Cleaner 5 230 V Cleaner 5 110 V CE-EN 61588-1 / 2006/42 61588-1 / 2006/42 Main voltage 230V / 50/60 Hz 110V / 50/60 Hz Fuse 1Ph / 10A 1Ph / 10A Insulation classifi- IP 23S cation Duty cycle AC...
