TC 42
TIMER/PULSE COUNTER/
DIGITAL ELECTRONIC
POWER LIMITER
User Manual
23/01 - Code: ISTR_M_T42_E_01_--
ASCON TECNOLOGIC S.r.l.
Viale Indipendenza 56, 27029 - VIGEVANO (PV) ITALY
TEL.: +39 0381 69871 - FAX: +39 0381 698730
sito: http:\\www.ascontecnologic.com
e-mail: info@ascontecnologic.com
PREFACE
D
This manual contains the information necessary for
the product to be installed correctly and also instruc-
tions for its maintenance and use; we therefore recom-
mend that the utmost attention is paid to the following
instructions and to save it.
This document is the exclusive property of Ascon Tecnologic
S.r.l. which forbids any reproduction and divulgation, even
partially, of the document, unless expressly authorized.
Ascon Tecnologic S.r.l. reserves the right to make any formal
or functional changes at any moment and without any notice.
Ascon Tecnologic S.r.l. and its legal representatives do not
assume any responsibility for any damage to people, things
or animals deriving from violation, wrong or improper use or
in any case not in compliance with the instrument features.
D
Whenever a failure or a malfunction of the device may
cause dangerous situations for persons, thing or animals,
please remember that the plant has to be equipped with
additional devices which will guarantee safety.
Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 1
Index
1. Instrument description ............................................... 1
1.1
General description ........................................................... 1
1.2
Front panel description ..................................................... 2
2. Programming ............................................................... 2
2.1
Set Points (timings) programming ..................................... 2
2.2
Standard mode parameters setting ................................... 2
2.3
Parameter protection using a password ............................ 3
2.4
(parameters programming level) ......................................... 3
2.5
Reset parameters to default value .................................... 3
2.6
Keyboard lock function ...................................................... 3
3. Usage warnings ........................................................... 3
3.1
Allowed Usage .................................................................. 3
4. Installation warnings ................................................... 4
4.1
Mechanical Mounting ........................................................ 4
4.2
Electrical connections ....................................................... 4
5. Operating mode ........................................................... 5
5.1
Timer, Pulse counter or Power limiter ............................... 5
5.2
Operation as a timer ......................................................... 5
5.3
Operation as a Pulse counter ........................................... 9
5.4
Operation as a Power limiter ........................................... 10
6. Accessories ............................................................... 11
6.1
Parameters configuration with A01 ................................. 11
6.2
Parameters configuration with AFC1 .............................. 11
7. Programmable parameters table .............................. 12
8. Problems and maintenance ...................................... 15
8.1
Cleaning .......................................................................... 15
8.2
Disposal .......................................................................... 15
9. Warranty and repairs ................................................. 15
10. Technical data ............................................................ 15
10.1 Electrical data ................................................................. 15
10.2 Mechanical characteristics .............................................. 15
10.3 Functional features ......................................................... 15
11. How to order .............................................................. 16

1. INSTRUMENT DESCRIPTION

1.1

General description

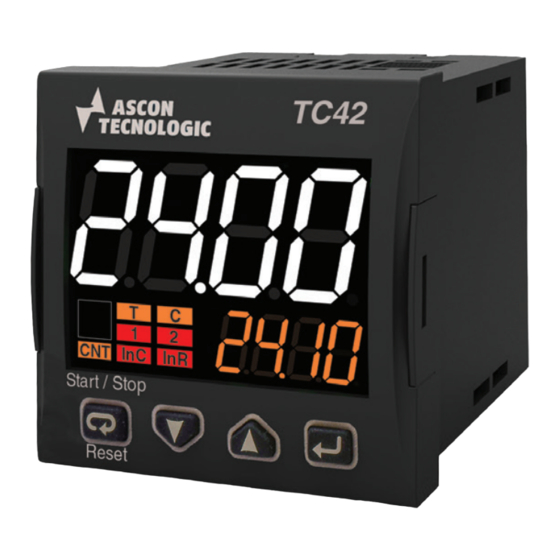

TC42 is a microprocessor based digital timer/pulse coun-
ter/power limiter.
The instrument used as a timer offers the possibility to
program: up to 3 timings (Set point), 6 operating modes for
OUT1 output, 10 operating modes for OUT2 output, 4 time
scales (which allow a count from a maximum of 9999 hours
to a minimum of 0.01 seconds), 6 counting enabling func-
tioning modes and 2 counting modes (UP or DOWN).
The instrument used as a pulse counter offers the pos-
sibility to program: up to 2 Set points, 3 operating modes
for OUT1 output, 4 operating modes for OUT2 output and
offers the possibility of counting division.
Moreover, the instrument can also be used as a power
limiter by programming a duty-cycle from 0 ÷ 100% and a
total cycle time from 1 ÷ 900 s.
The upper 4-digit display normally shows the counting
status while the lower 4-digit display the selected timing
(set-point), the status of the outputs is shown by 2 LEDs.
The instrument has 1 counting/counting enabling input
(CNT) and 1 digital input with programmable operation
(RESET or reverse counting) whose signals can come from
free of voltage contacts, from devices with NPN or PNP
transistor output. It can have up to 2 relay outputs or for
driving Solid State Relays (SSR).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC 42 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ascon tecnologic TC 42

  • Page 1: Table Of Contents

    0.01 seconds), 6 counting enabling func- Ascon Tecnologic S.r.l. reserves the right to make any formal tioning modes and 2 counting modes (UP or DOWN). or functional changes at any moment and without any notice.
  • Page 2: Front Panel Description

    Timer. key, the upper display shows the parameter code and the lower one its value that can be changed with the Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 2...
  • Page 3: Parameter Protection Using A Password

    – Once the parameter is selected, if the SET LED flashes, by the above mentioned rule must adopt all the necessary the parameter is programmable only entering the pass- protective measures. Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 3...
  • Page 4: Installation Warnings

    Battery enable Out1 Voltage inputs +0.6 Out2 Inputs C (+) Internal Supply Out 12 VDC Buzzer (max. 20 mA) PNP free NPN free of voltage of voltage contacts contacts Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 4...
  • Page 5: Operating Mode

    Activating the CNT input and keeping it active, the timer always acts as a Reset, i.e. blocks and resets the count resets and starts counting, disabling the CNT input the Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 5...
  • Page 6 Out1 output; Out1 is disabled when OUT1 S. t 1 time has elapsed. The output can be reactivated only after a Reset and a new Start signal. Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 6...
  • Page 7 F . o 1t = 2 only. In this case, the display shows the t1 time OUT2 count, elapsed which it switches to display the t3 time and then the time t2. Reset Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 7...
  • Page 8 (e.g. the instrument was counting with a bistable command when the power was lost); Reset The count continues if the internal battery is present and enabled by connecting terminals 15 and 16. Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 8...
  • Page 9: Operation As A Pulse Counter

    For this reason it is recom- mended to use the count inversion function only when the Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 9...
  • Page 10: Operation As A Power Limiter

    By setting F. o 2C = oF, the Out2 output is always disabled or And more precisely, Out1 will be activated for the time: can operate as an external buzzer if F. b uC = 4. [S. t c x P/100] Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 10...
  • Page 11: Accessories

    “AT UniversalConfig” configuration software the operating parameters can be configured. To use the device A01 it is necessary that the device or in- strument are being powered directly or through the key. Power supply Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 11...
  • Page 12: Programmable Parameters Table

    6 S. t 2 and S. t 3; 7 S. t 1, S. t 2 and S. t 3; keys 8 Only S. t 1 directly using keys. 9 Only S. t 2 directly using Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 12...
  • Page 13 9 Only S. t 2 directly using 0 Active Set point during count; 1 S. C 1; 2838 Value shown on the lower dislay C. d dn 2 S. C 2; 3 S. t r Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 13...
  • Page 14 2842 Inputs logic NPN/PNP t. L i P PNP. Display flashing at count end 0 Display flashing at count end; 2843 EndC (Timer or Counter mode) 1 Display steady ON at count end. Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 14...
  • Page 15: Problems And Maintenance

    99 min 59 s, the shipment authorisation. 99 s 99 hundreds of second; The defected product must be shipped to Ascon Tecnologic with Display resolution: Based on the time scale used: the detailed description of the failures found and without any fees or charge for Ascon Tecnologic, safe different agreements.
  • Page 16: How To Order

    (pitch 5.00)(fixed part only) Display J = White-Orange K = Red-Green TC42 - d e f g h i mm nn j, k, l: Reserved codes; mm, nn: Special codes. Ascon Tecnologic - TC42- - OPERATING INSTRUCTIONS - PAG. 16...
