Translated from German to English - www.onlinedoctranslator.com

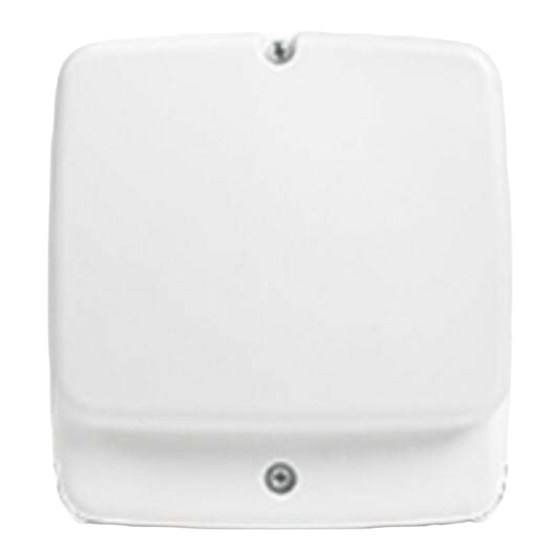

ATW-TAG-02
Gateway
INSTALLATION AND OPERATION MANUAL MANUAL DE
INSTALACIÓN Y FUNCIONAMIENTO INSTALLATION AND
OPERATION MANUAL MANUEL D'INSTALLATION ET DE
FONCTIONNEMENT MANUALE D'INSTALLAZIONE E
D'USO
MANUAL DE INSTALAÇÃO E DE FUNCIONAMENTO
INSTALLATIONS- OG BETJENINGSVEJLEDNING
INSTALLATIEN- EN OPERATIONSHANDLEIDING
INSTALLATION- OCH DRIFTHANDBOK
Advertisement
Table of Contents
Related Manuals for Hitachi TaHoma System ATW-TAG-02
Summary of Contents for Hitachi TaHoma System ATW-TAG-02
- Page 1 Translated from German to English - www.onlinedoctranslator.com ATW-TAG-02 Gateway INSTALLATION AND OPERATION MANUAL MANUAL DE INSTALACIÓN Y FUNCIONAMIENTO INSTALLATION AND OPERATION MANUAL MANUEL D'INSTALLATION ET DE FONCTIONNEMENT MANUALE D'INSTALLAZIONE E D'USO MANUAL DE INSTALAÇÃO E DE FUNCIONAMENTO INSTALLATIONS- OG BETJENINGSVEJLEDNING INSTALLATIEN- EN OPERATIONSHANDLEIDING INSTALLATION- OCH DRIFTHANDBOK...
- Page 2 - Do not open the case. - Do not use this product outdoors. Do not place the connection cables outside. - Any use or modification of the device not foreseen by Johnson Controls-Hitachi Air Conditioning Spain, SAU could present a hazard during use.
- Page 3 3.1. Dimensions 80.79 3.2 Description of Items A. Transformer B. Fuse (300mA, 300V) C. External power source D. "Prog" switch E. "Link" indicator F. H-LINK communication bus with HITACHI devices G. "Prog" indicator 12 PMML0423A rev.2 - 09/2016...
- Page 4 3.3 Description of the box 3.4 Technical Information • Supply voltage: 230V/50Hz (30mA) • Wattage: 7W (Maximum) • Dimensions (mm): 123x115x37 • Weight (g): 214g. • Class 2 reinforced insulation equipment. • Overvoltage Category: Class 2 • Pollutant class: Class 2 •...
- Page 5 - Also, do not install the gateways in the vicinity of people with cardiac pacemakers. - Also, do not install the gateways in damp environments (e.g. bathrooms). 4.3 Product connection - Connect the HITACHI communication cable. The port is usually labeled TB2-1&2. See the heat pump installation manual to confirm the number of connections.
- Page 6 Johnson Controls-Hitachi Air Conditioning Spain, SAU declares that the equipment is in compliance with the essential requirements of Directive 1999/5/EC.
