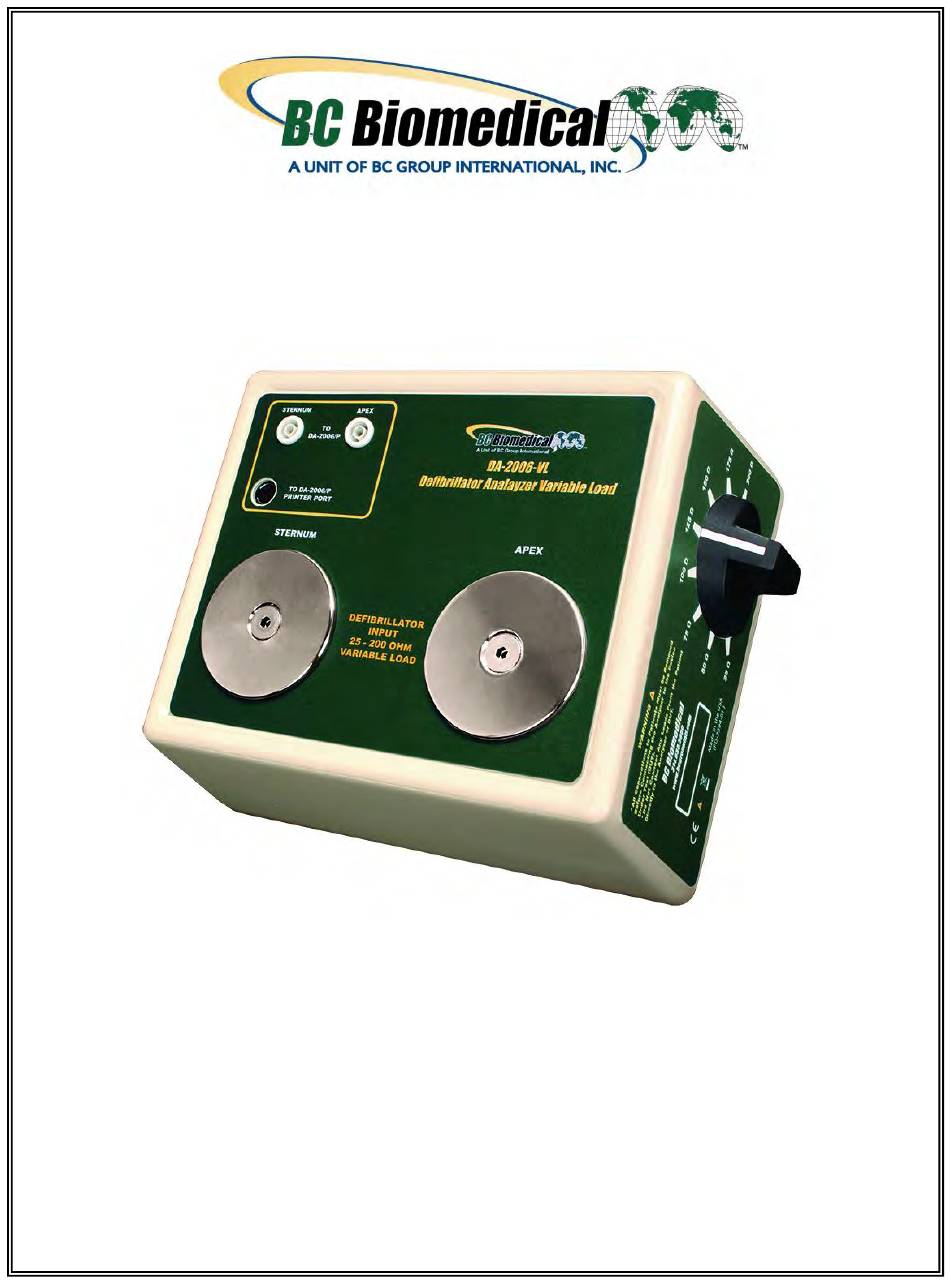

- Page 1 DEFIBRILLATOR ANALYZER VARIABLE LOAD DA-2006-VL USER MANUAL...
-
Page 3: Table Of Contents
BC BIOMEDICAL DA-2006-VL TABLE OF CONTENTS WARNINGS, CAUTIONS, NOTICES ................ii DESCRIPTION ......................1 LAYOUT ........................2 INSTRUCTIONS……………………………………………………………………………... MANUAL REVISIONS ....................4 LIMITED WARRANTY ....................4 SPECIFICATIONS ....................... 5 NOTES ......................... 6... - Page 4 WARNING - USERS The DA-2006-VL is for use by skilled technical personnel only. WARNING - USE The DA-2006-VL is intended for testing only and they should never be used in diagnostics, treatment or any other capacity where they would come in contact with a patient. WARNING - MODIFICATIONS The DA-2006-VL is intended for use within the published specifications.
- Page 5 CAUTION - SERVICE The DA-2006-VL is intended to be serviced only by authorized service personnel. Troubleshooting and service procedures should only be performed by qualified technical personnel. CAUTION - ENVIRONMENT Exposure to environmental conditions outside the specifications can adversely affect the performance and accuracy of the DA-2006-VL.
- Page 6 CAUTION - INSPECTION The DA-2006-VL should be inspected before each use for obvious signs of abuse or wear. The DA- 2006-VL should not be used and should be serviced if any parts are in question. NOTICE – SYMBOLS Symbol Description Caution (Consult Manual for Further Information) Per European Council Directive 2002/95/EC,...
- Page 7 NOTICE – CE The DA-2006-VL bears the mark Based on the following testing standards: ELECTROMAGNETIC COMPATIBILITY DIRECTIVE EN 61326-1:2006 According to the Guide for the EMC Directive 2004/108/EC, section 1.1.4 the DA- 2006-VL is inherently benign equipment and does not require EMC testing. LOW VOLTAGE DIRECTIVE EC –...
- Page 8 NOTICE – DISCLAIMER BC GROUP INTERNATIONAL, INC. WILL NOT BE RESPONSIBLE FOR ANY INJURIES SUSTAINED DUE TO UNAUTHORIZED EQUIPMENT MODIFICATIONS OR APPLICATION OF EQUIPMENT OUTSIDE PUBLISHED INTENDED SPECIFICATIONS. NOTICE – DISCLAIMER BC GROUP INTERNATIONAL, INC. RESERVES THE RIGHT TO MAKE CHANGES TO ITS PRODUCTS OR SPECIFICATIONS AT...
- Page 9 This Page Intentionally Left Blank...
-
Page 10: Description
BC BIOMEDICAL DA-2006-VL DEFIBRILLATOR ANALYZER VARIABLE LOAD The Model DA-2006-VL is an adjustable load box used in conjunction with the DA-2006 Series Analyzers in the testing of defibrillators. It allows for analysis of defibrillators over a 25-200 ohm range with 25 ohm steps. The following are highlights on some of the main features: DA-2006-VL (Basic Features): ... -
Page 11: Layout
LAYOUT This section looks at the layout of a DA-2006-VL and gives descriptions of the elements that are present. DA-2006 series interface connections Load Selection Knob Banana connections for Sternum/Apex 25-200 Ohm loads with jumpers. Mini din connector for 25 Ohm increments interface control. -
Page 12: Instructions
INSTRUCTIONS FOR USE Connecting to a DA-2006 series analyzer This unit is connected to the DA-2006 series analyzer through three included cables, BC20-00139. The two black jumper cables run from the Sternum/Apex jacks on the top of the DA-2006-VL to the corresponding defib plates on the DA-2006 Series Analyzer as shown below. -
Page 13: Manual Revisions
LIMITED WARRANTY WARRANTY : BC GROUP INTERNATIONAL, INC. WARRANTS ITS NEW PRODUCTS TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP UNDER THE SERVICE FOR WHICH THEY ARE INTENDED. THIS WARRANTY IS EFFECTIVE FOR TWELVE MONTHS FROM THE DATE OF SHIPMENT. -
Page 14: Specifications
SPECIFICATIONS DA-2006-VL VARIABLE LOAD MAXIMUM POWER 10 Defibrillator pulses of 360 J every 5 minutes RESISTANCE 25 – 200 Ω, in 25 Ω steps TOLERANCE ±1 % INDUCTANCE < 10 μH DA-2006 HIGH RANGE DA-2006 LOW RANGE PEAK VOLTAGE ≤ 5000 V ≤... - Page 16 BC GROUP INTERNATIONAL, INC. 3081 ELM POINT INDUSTRIAL DRIVE ST. CHARLES, MO 63301 1-800-242-8428 1-314-638-3800 www.bcgroupintl.com sales@bcgroupintl.com DA-2006-VL User Manual 03/15 – Rev 02 LM-7394-UM Copyright © 2015 Made in the USA...
