High-Tech • Made in Switzerland

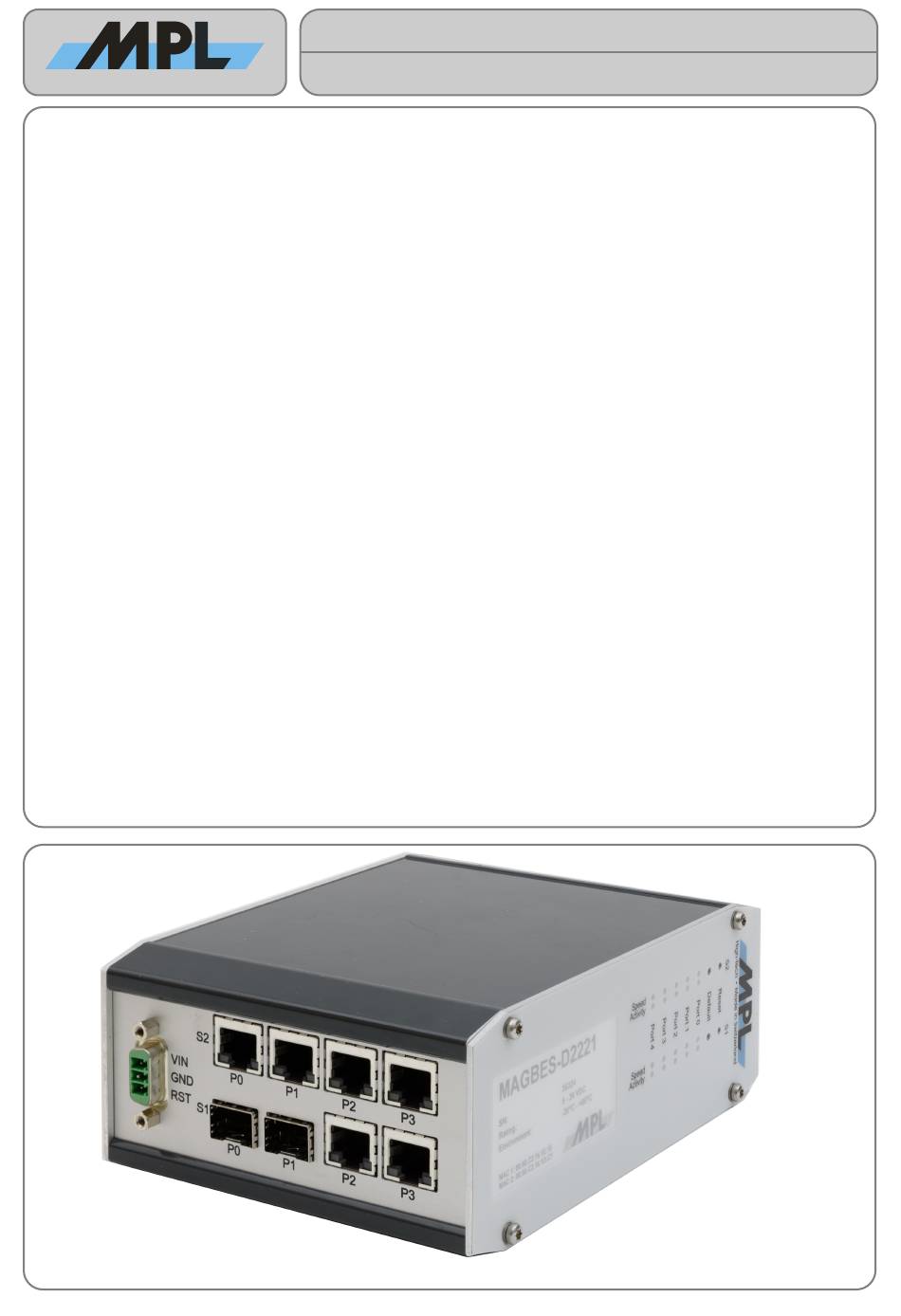

The MAGBES-20 Family is also available as "stacked" Version, which means the 2 MAGBES are cascaded
together to get an 8 port Switch. They are cascaded via the port 4 and both MAGBES are managed individual.
Therefore they would require 2 different IP Addresses, for each management instance.
This document describes the mechanical dimensions of these "stacked" MAGBES, for further information
please refer to the MAGBES-21/-22/-23 User Manual, or the MPL Managed Switch Family Technical Reference
Manual available at www.mpl.ch.
Features:
●
Available in different Port configurations.
●
Open Frame and boxed variants
●
Wide Input Voltage Range 5V to 36VDC
●
DIN-Rail mount or Flange mount Options (boxed
●
variants only)
2017 by MPL AG
8-Port MAGBES
Manual Addendum
8-Port MAGBES
1
MEH-10xxx-001 Rev. X
Advertisement
Table of Contents
Related Manuals for MPL MAGBES-20 Series
Summary of Contents for MPL MAGBES-20 Series
- Page 1 Therefore they would require 2 different IP Addresses, for each management instance. This document describes the mechanical dimensions of these “stacked” MAGBES, for further information please refer to the MAGBES-21/-22/-23 User Manual, or the MPL Managed Switch Family Technical Reference Manual available at www.mpl.ch.
-
Page 2: Table Of Contents
3 CONNECTORS......................11 3.1 M12 X-Coded Ethernet Connectors...................11 3.2 M12 T-Coded Female Power Connector................11 4 COPYRIGHT......................... 12 5 DISCLAIMER........................12 6 TRADEMARKS......................12 7 SUPPORT........................12 7.1 SERIAL NUMBER AND REVISION..................12 7.2 CONTACT MPL AG......................12 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 3: Introduction
1.4 EQUIPMENT SAFETY Great care is taken by MPL AG that all its products are thoroughly and rigorously tested before leaving the factory to ensure that they are fully operational and conform to specification. However, no matter how reliable a product, there is always the remote possibility that a defect may occur. -
Page 4: Manual Revisions
Manual Addendum High-Tech • Made in Switzerland 1.5 MANUAL REVISIONS 1.5.1 RELATED PRODUCTS Manual Related To Revisions • MAGBES-xyyyz Rev. A 1.5.2 REVISION HISTORY Manual Date Description Revisions 2017-08-31 Initial release of this document. 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 5: Related Documentation
The following documents are related to this manual. For detailed Information about a specific xxx feature or setting please refer to this additional manuals. Reference Description Available from MAGBES-21/-22/-23 User Manual MPL AG: www.mpl.ch MPL Managed Switch Family Technical Reference MPL AG: www.mpl.ch Manual 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 6: Ordering Information
Not all variants are on stock. • MIL housings needs to be defined. • The M12 variant is only available as 211 (no SFP) • M12 variant uses a higher housing (82.5mm) • 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 7: Dimensions
Drawing shows a MAGBES-211R, other variants have SFP slots instead of headers on port 0 and port 1. Notes: For all other dimensions please refer to the MAGBES-21/-22/-23 User Manual. • For Connector assignments please refer to the MAGBES-21/-22/-23 User Manual. • 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 8: Boxed Magbes With Rj45
Since both MAGBES are internally connected via port 4, both port 4 LEDs will be on. • On Variants with SFP the Link LED shows the Link Status, the Speed LED remains dark. • Speed LED is red at 10MBit, green at 100MBit and amber at 1GBit. • 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 9: Connector Side
Since there is currently no way to bring the fibre of the SFP to the front within the room the standard 82.5mm housing provides, the only 8 port MAGBES with M12 is the MAGBES-x211M. 2.4.1 Connector side 119.0mm S1P0 S1P1 S1P3 S0P1 S1P2 S0P0 S0P2 S0P3 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 10: Din-Rail Mount Option
8-Port MAGBES Manual Addendum High-Tech • Made in Switzerland 2.4.2 DIN-Rail Mount Option 162.0mm 81.0mm 2.4.3 Flange Mount Option 200.00mm. 188.00mm. 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 11: Connectors
The M12 Variant uses a 4 pin M12 T-Coded male, connector: Phoenix Contact AG, SACC-CI-M12MST-4CON- L180 THR. Pin no Signal Description Phoenix Contact AG, PSC 1,5/3-M-PE) Not Connected Input voltage 5 up to 36V Ground RESET# Active Low Reset Signal 2017 by MPL AG MEH-10xxx-001 Rev. X... -
Page 12: Copyright
For support it is needed that you know the product name, the product variant and the serial number number of your MAGBES. 7.2 CONTACT MPL AG In case of general information questions please feel free to contact us at our homepage ( www.mpl.ch) or per email (info@mpl.ch). In case of sales information questions please send an email to sales@mpl.ch.
