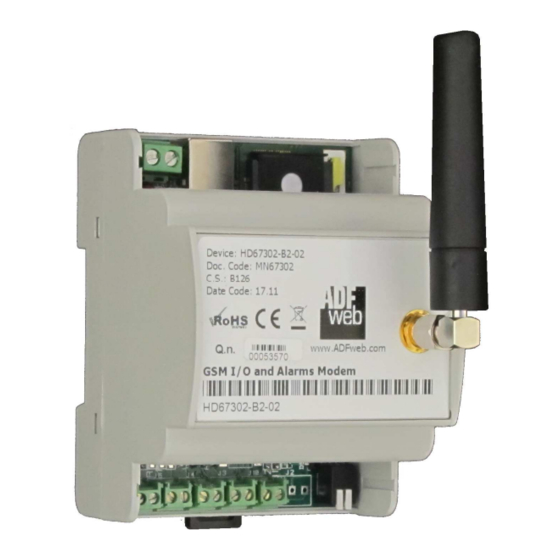

GSM I/O and Alarms Modem
for Website information:
www.adfweb.com?Product=HD67302
for Price information:
www.adfweb.com?Price=HD67302-B2-02
www.adfweb.com?Price=HD67302-B2-20
www.adfweb.com?Price=HD67302-B2-11
Benefits and Main Features:
Very easy to configure
SMS / Call for trigger an output
Wide power input range
Temperature range:
-20°C / +70°C (-4°F / +158°F)
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual GSM I/O and Alarms Modem
Document code: MN67302_ENG
Analyzer / Scanner /Sniffer, M-Bus
www.adfweb.com?Product=HD67031
Multi-Drop Converter RS232/RS485 to Optic Fiber
www.adfweb.com?Product=HD67033M
www.adfweb.com?Product=HD67034M
HD67302-B2-xx
www.adfweb.com?Product=HD67035M
www.adfweb.com?Product=HD67036M
Isolator & Repeater, RS485
www.adfweb.com?Product=HD67149-A1
CAN, CANopen, J1939, DeviceNet, NMEA2000 Analyzer
www.adfweb.com?Product=HD67316
Other
CAN, CANopen, J1939, DeviceNet, NMEA2000 from/to USB
Products
www.adfweb.com?Product=HD67390
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.001
Page 1 of 35
(RS232, SL)
(RS232, DL)
(RS485, SL)
(RS485, DL)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67302-B2 Series
Summary of Contents for ADF Web HD67302-B2 Series
- Page 1 User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 1 of 35 Industrial Electronic Devices User Manual Revision 1.001 English GSM I/O and Alarms Modem for Website information: www.adfweb.com?Product=HD67302 for Price information: www.adfweb.com?Price=HD67302-B2-02 www.adfweb.com?Price=HD67302-B2-20 www.adfweb.com?Price=HD67302-B2-11 Analyzer / Scanner /Sniffer, M-Bus www.adfweb.com?Product=HD67031 Benefits and Main Features: Multi-Drop Converter RS232/RS485 to Optic Fiber...
-
Page 2: Updated Documentation
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 2 of 35 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX Updated UPDATED DOCUMENTATION... -
Page 3: Security Alert
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 3 of 35 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for each individual application, legal and safety regulation. -
Page 4: Installation
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 4 of 35 Industrial Electronic Devices INTRODUCTION: The GSM I/O and Alarms Modem is a powerful, flexible and economic instrument which is used to control Digital and Analog I/O by SMS or Phone Call. - Page 5 User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 5 of 35 Industrial Electronic Devices USE OF COMPOSITOR SW67302: Figure 1: Main window for SW67302 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 6: New Configuration
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 6 of 35 Industrial Electronic Devices NEW CONFIGURATION: By pressing the “New Configuration” button it is possible to create a new project assigning the name in the field near the button “OK”... -
Page 7: Load Configuration
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 7 of 35 Industrial Electronic Devices LOAD CONFIGURATION: By pressing the “Load Configuration” button it is possible to load an existing project by selecting one of the list that appears. -
Page 8: Save Configuration
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 8 of 35 Industrial Electronic Devices SAVE CONFIGURATION: By pressing the “Save Configuration” button it is possible to save the project. There are two possibilities: or save the current configuration, by pressing the button “Save”;... -
Page 9: Update Device
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 9 of 35 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button it is possible to load the created Configuration into the device; and also the Firmware, if is necessary. - Page 10 User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 10 of 35 Industrial Electronic Devices Select the COM port; Select which operations you want to do. You can select only “Write Firmware”, only “Write Configuration” or both of them; Press the “Update Device”...
- Page 11 User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 11 of 35 Industrial Electronic Devices Warning: If the Fig. 6 appears when you try to do the Update before require assistance try these points: Check if the serial COM port selected is the correct one; Check if the Cable is connected between the PC and the device;...
-
Page 12: Software Preferences
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 12 of 35 Industrial Electronic Devices SOFTWARE PREFERENCES: By pressing the “Software Preferences” button it is possible to select the language of the SW67302. Figure 7: “Software Preferences” window ADFweb.com Srl –... -
Page 13: Phone Setting
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 13 of 35 Industrial Electronic Devices PHONE SETTING: By pressing the “Phone Setting” button it is possible to insert the “PIN Code” of the SIM Card. Another thing that is possible to do is enable the Automatic switch of the Time;... -
Page 14: Input Setting
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 14 of 35 Industrial Electronic Devices INPUT SETTING: IGITAL ETTING The device has two Digital Input. For both of them it is possible to do the same operations described in this section. There are two possibilities: Sending a SMS when the Input changing from 0 to 1 by checking the field... -
Page 15: Analog Setting
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 15 of 35 Industrial Electronic Devices NALOG ETTING The device has one Analog Input. The operations are described in this section. There are two possibilities: Sending a SMS when the Input goes above a certain threshold voltage by checking the field “Send follow SMS when Analog Input is Higher than ………... -
Page 16: Output Setting
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 16 of 35 Industrial Electronic Devices OUTPUT SETTING: The device has two Digital Output. For both of them it is possible to do the same operations described in this section. i.e. using SMS and/or Call for trigger an event. - Page 17 User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 17 of 35 Industrial Electronic Devices If the field “Enabled on Phone Number” is checked only the phone number written in the table is able to do the operation to the Digital Output;...
- Page 18 User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 18 of 35 Industrial Electronic Devices Phone Number Enable on Enable on RESET IMPULSE SMS sent, by Result Phone Number Password SO1, a Set Digital Output 1 sStO1, a None sRO1, a...
- Page 19 User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 19 of 35 Industrial Electronic Devices By pressing the field “CALL” it is possible to enable the function of change the state of output using a Phone Call. There are three types of operations: “Automatic hang Up after Hang Up Risings Number”, used for hang up after the numbers of...
-
Page 20: Date And Time Setting
User Manual GSM I/O and Alarms Modem Document code: MN67302_ENG Revision 1.001 Page 20 of 35 Industrial Electronic Devices DATE & TIME SETTING: By pressing the “Date & Time Setting” button it is possible to change the Date & Time of the device and create the Profiles. The Profiles are used for limiting the time of the operations that the users, that have assigned a Profile, can perform.
