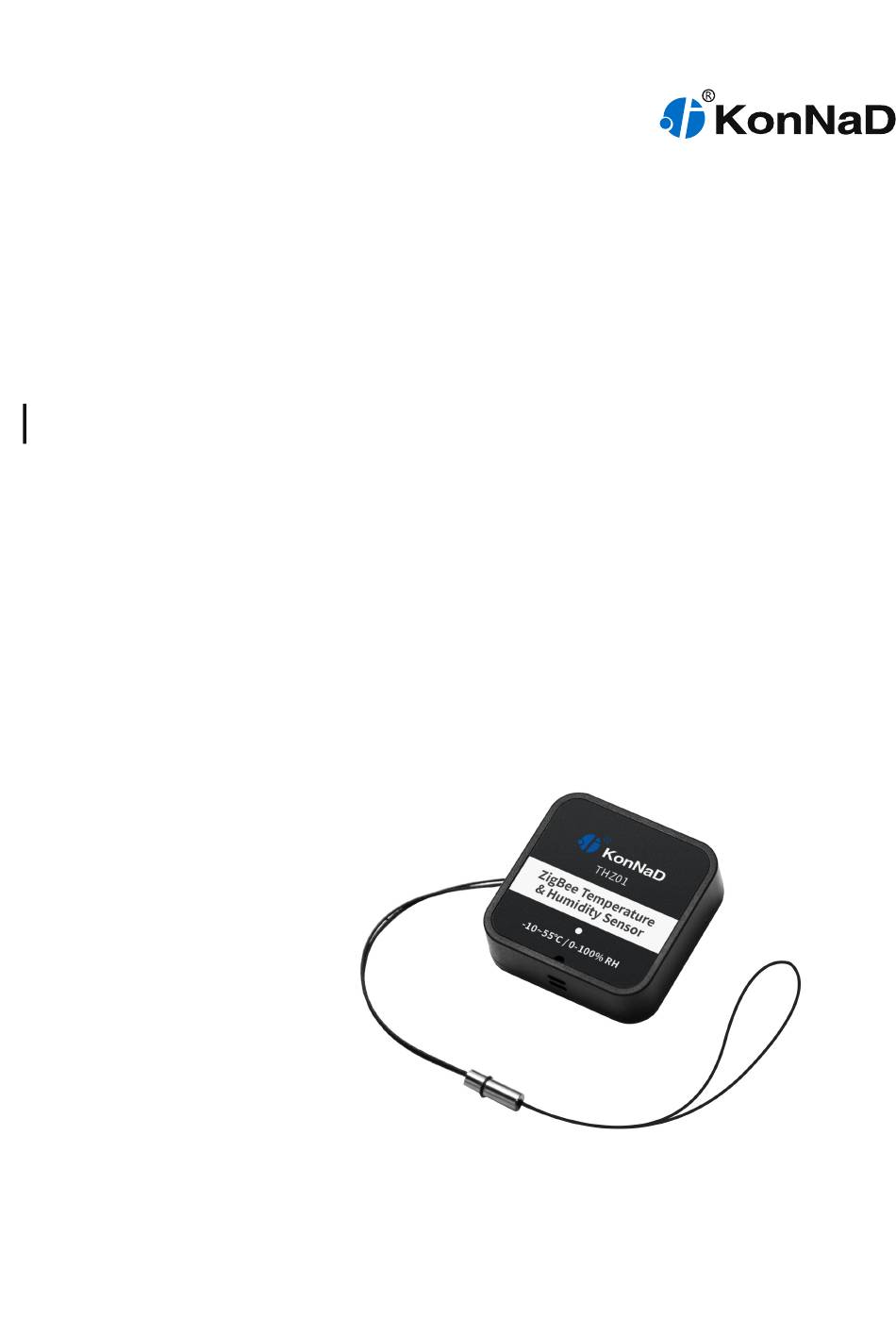

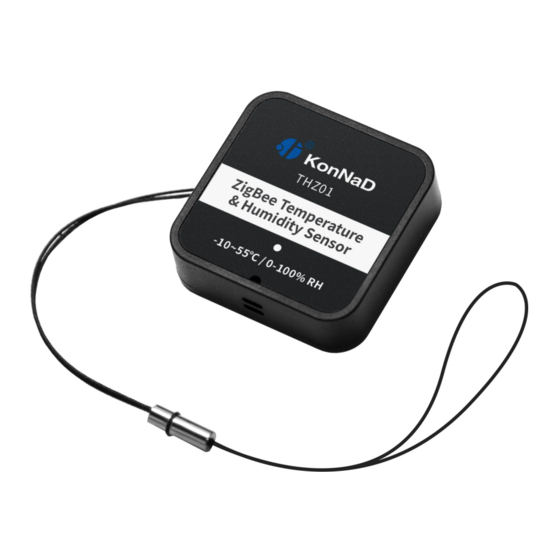

- Page 1 Last updated: 2019-12-20 C2000-S2-THZ01 User Manual ZigBee Temperature & Humidity Sensor Sensor — Temperature & Humidity Sensor (ZigBee) SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-S2-THZ01 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 11... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-S2-THZ01 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 11...
-
Page 5: Hardware Description
C2000-S2-THZ01 User Manual 1. Hardware Description 1.1. Specifications Classification Parameter Specification Sensor Parameters Temperature Meauring Range -10-55℃ Temperature Measuring ±1℃ Accuracy Humidity Meauring Range 0-100% RH Humidity Measuring Accuracy ±5.0% Update Period 10s-3600s Ethernet Communication Distance Full load machine room > 20m,<br/>Unblocked ≥... -
Page 6: Apprearance
C2000-S2-THZ01 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 6 / 11... -
Page 7: Indicators
C2000-S2-THZ01 User Manual 1.3. Indicators Classification Indicator Description Meaning ZigBee ZigBee ZigBee status Green light steady on for 5 seconds：Power on indicator Blue and Red light flashing：Binding to gateway Red light flashing：Unbinding with gateway Blue light Flashing：Uploading data Off：No battery or uploading data, check whether the batteries are loose or replace it SinoCon Co., Ltd. -
Page 8: Port Description
C2000-S2-THZ01 User Manual 1.4. Port Description Classification Port Description Recommended wiring SinoCon Co., Ltd. www.sinoconsys.com 8 / 11... -
Page 9: Product Dimensions
C2000-S2-THZ01 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 9 / 11... - Page 10 C2000-S2-THZ01 User Manual 2. Package Contents Contents Device * 1 Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 10 / 11...
-
Page 11: Warranty Policy
C2000-S2-THZ01 User Manual 3. Warranty Policy In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's failure to install, disassemble or improperly use the product according to the requirements of this product manual, the company provides maintenance services, but charges appropriate maintenance fees.
