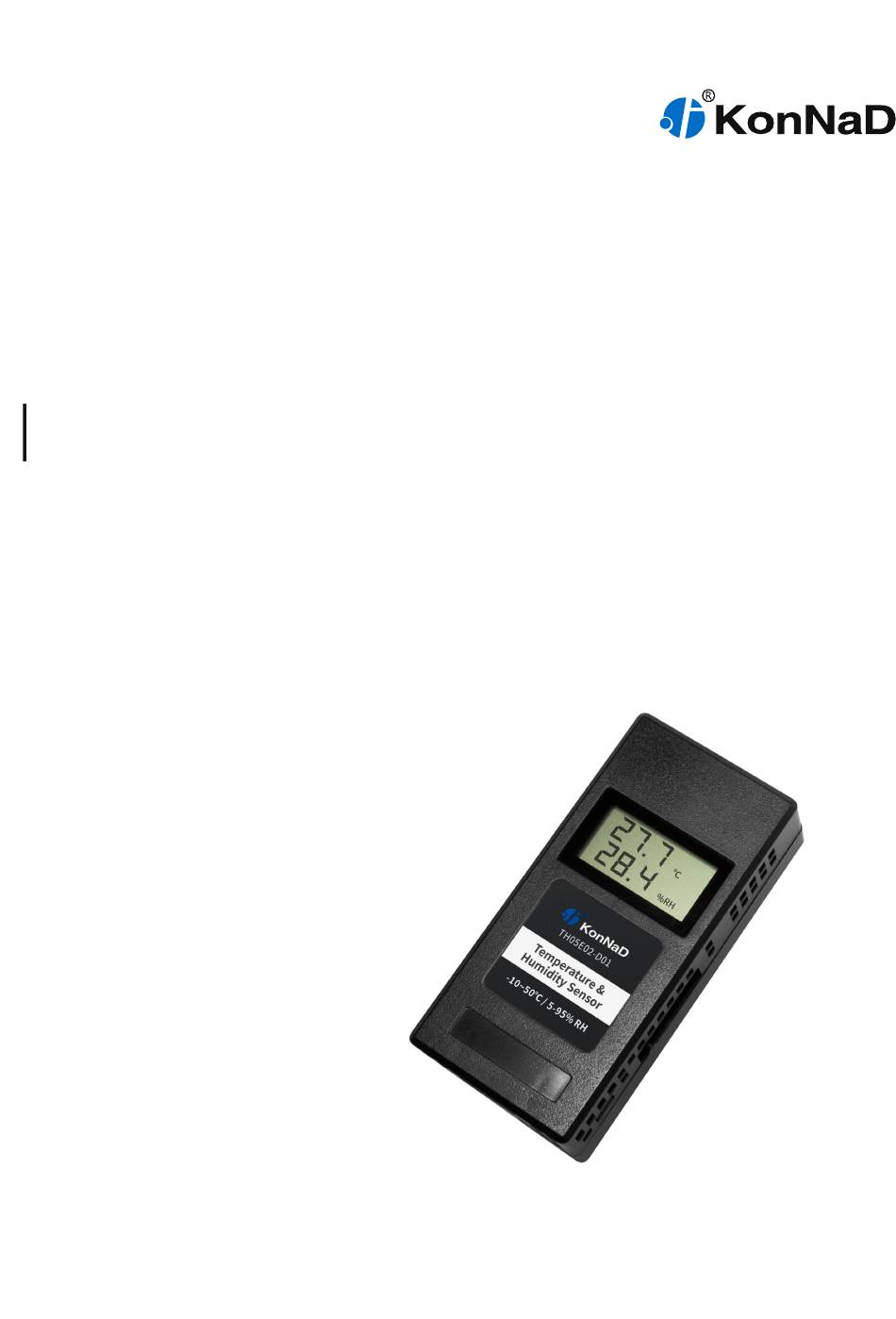

- Page 1 Last updated: 2019-11-7 C2000-S1-TH05E02-D01 User Manual RS485 -10~50℃ / 5~95% RH Sensor — Temperature & Humidity Sensor SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-S1-TH05E02-D01 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 12... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-S1-TH05E02-D01 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 12...
-
Page 5: Hardware Description
C2000-S1-TH05E02-D01 User Manual 1. Hardware Description 1.1. Specifications Classification Parameter Specification Sensor Parameters Temperature Meauring -10 ~ 50℃ Range Temperature Measuring ±0.5℃ Accuracy Humidity Meauring Range 0-95% RH Humidity Measuring ±3.0% Accuracy Upstream Serial Serial Standrad RS485 Port No. of Ports... - Page 6 C2000-S1-TH05E02-D01 User Manual Classification Parameter Specification RS485 Address Settings 6-digit DIP switch sets the sensor address, address range 0-63 Physical Dimensions 45*94.7*27.1mm Characteristics Installation Magnet Environmental Operating Temperature -10℃ ~ 50℃ Limits Ambient Relative Humidity 0% ~ 95% RH, non-condensing SinoCon Co., Ltd.
-
Page 7: Apprearance
C2000-S1-TH05E02-D01 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 7 / 12... -
Page 8: Indicators
C2000-S1-TH05E02-D01 User Manual 1.3. Indicators Classification Indicator Description Meaning SinoCon Co., Ltd. www.sinoconsys.com 8 / 12... -
Page 9: Port Description
C2000-S1-TH05E02-D01 User Manual 1.4. Port Description Recommended Classification Port Description wiring Serial RJ45 Integrated RS485 communication and DC 12V power CAT-5e Interface Port supply SinoCon Co., Ltd. www.sinoconsys.com 9 / 12... -
Page 10: Product Dimensions
C2000-S1-TH05E02-D01 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 10 / 12... - Page 11 C2000-S1-TH05E02-D01 User Manual 2. Package Contents Contents Device * 1 Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 11 / 12...
-
Page 12: Warranty Policy
C2000-S1-TH05E02-D01 User Manual 3. Warranty Policy In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's failure to install, disassemble or improperly use the product according to the requirements of this product manual, the company provides maintenance services, but charges appropriate maintenance fees.
