Wiring Diagram - Chentronics iScan 3 Manual

TOLERANCE NOTES
FABRICATED TOLERANCES
≥ 2 ft (610 mm) ± 0.250 in (6.4 mm)
< 2ft (610 mm) ± 0.125 in (3.2 mm)
MACHINED TOLERANCES
± 0.050 DECIMAL DIM (1 PLACE)
± 0.010 DECIMAL DIM (2 PLACES)
± 0.005 DECIMAL DIM (3 PLACES)

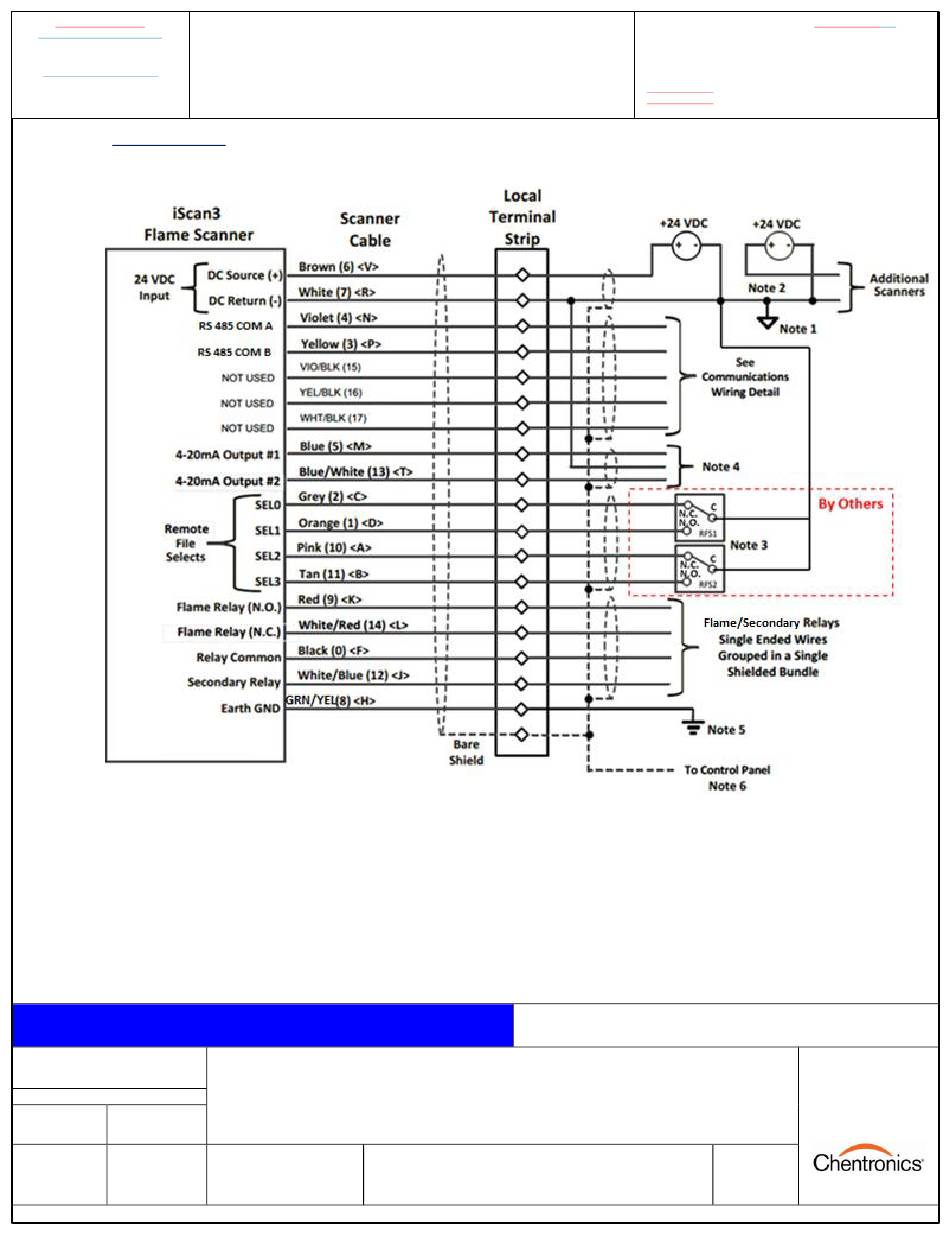

4.1 Wiring Diagram

Wiring Notes
If more than one 24 VDC supply is required, the 24 VDC returns labeled as "DC (-)" shall be
Note 1
connected to each other.
If more than one 24 VDC supply is required, the 24 VDC source connections labeled "DC (+)"
Note 2
shall be isolated from all other power supplies. If switching power supplies are used, the
supplies may be connected via a wired OR diode configuration. NOTE: the BLOCKING DIODE
RELATED DOCUMENT – MUST COMPLY WITH SCHEDULE DOCUMENT(S):
FOR A LIST OF RELEVANT PATENTS
AND TRADEMARKS PLEASE SEE
CHENTRONICS.COM/LEGAL-NOTICES
ISO 9001 CERTIFIED
DRAWN BY:
ON:
2021-MAY-14
AR
LAST REV BY:
ON:
2022-AUG-01
AR
MNL-ISCAN3
iScan®3 MANUAL
DCO No
.
14724
DWG. No.
Figure 3: Wiring Diagram
CERT-iS3 MNL, CDM-10000105, 106, 107, 108, 109, 110,
MNL-ISCAN3
THIS DRAWING OWNED BY
CONDITIONALLY LOANED AND IS TO BE RETURNED UPON
REQUEST. THE BORROWER BY RECEIVING IT HAS AGREED
NOT TO REPRODUCE NOR COPY IT IN WHOLE OR IN PART NOR
TO FURNISH INFORMATION FROM IT TO OTHERS NOR TO
MAKE ANY USE OF IT THAT IS OR MAY BE INJURIOUS TO
CHENTRONICS. FOR MORE INFORMATION, PLEASE CONTACT
CHENTRONICS AT +1.607.334.5531.
113, 119, 167, 188, 191, 192
F
REV.
CHENTRONICS. IT IS
PAGE 11 OF 22
