Summary of Contents for heimgard 16A

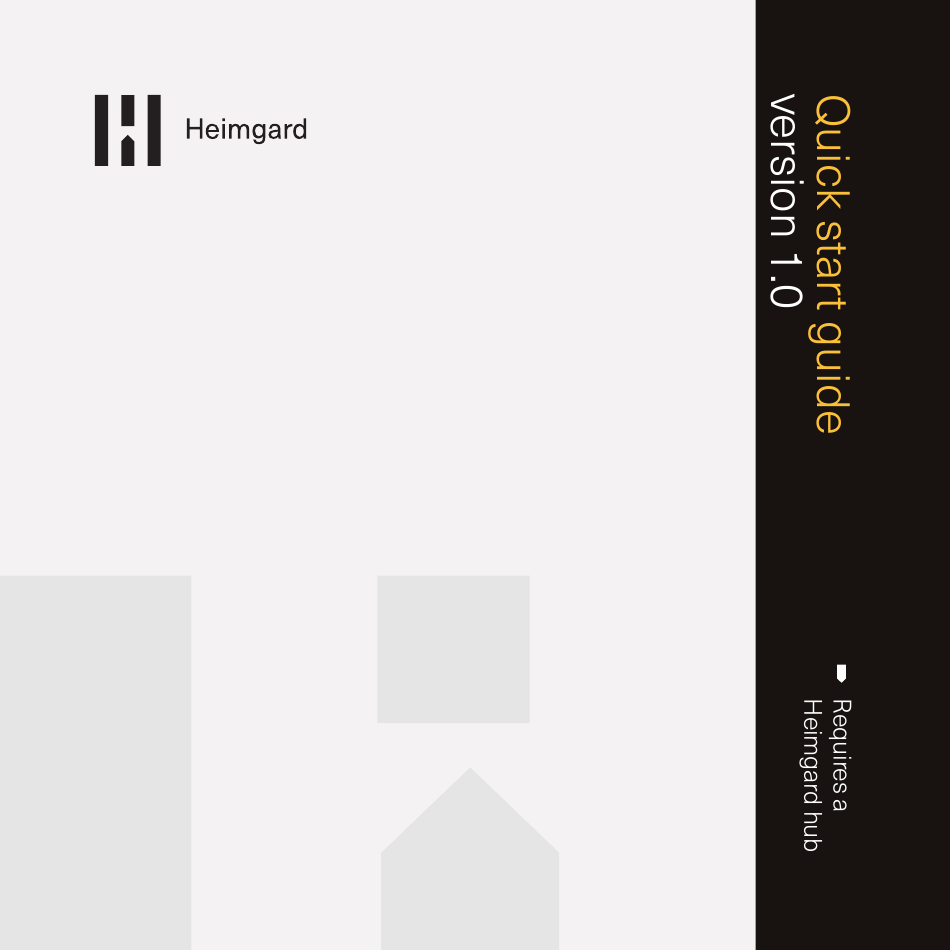

- Page 1 In-wall switch...
-
Page 2: What Is In The Box

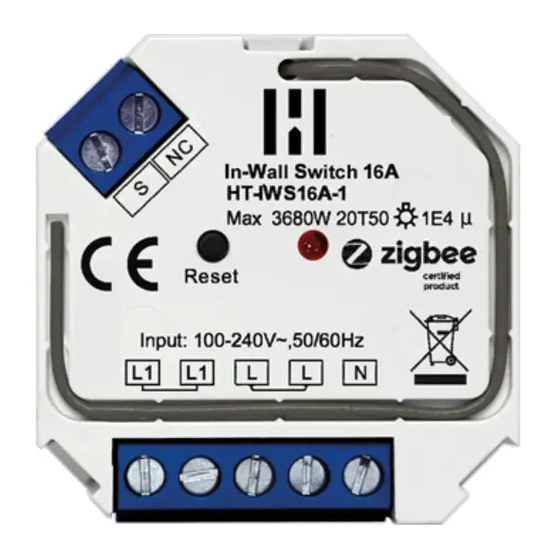

What is in the box Device overview FRONT VIEW In-wall switch 16A Join/ Reset Indicator button... -
Page 3: Installation And Wiring
Connection diagram overview Installation and wiring Notes for the diagrams: N - Neutral lead terminal Electronical properties L1 - Load output terminals S - External switch terminal • Load (A) 16 Max • Voltage type AC (controlling connected device) NC - No Connection L - Live lead terminal GND - Grounding •... -
Page 4: Wiring Diagram
Wiring diagram For installation follow the wire diagrams. Option 2: with a connected switch Option 1: without a connected switch... -
Page 5: Connecting To The Hub
Configure the device switch by giving it a name and adding it to a room. Manage Your device is able to be controlled in Devices your Heimgard app or locally with a wireless or wired switch. -
Page 6: Factory Reset
Factory Reset The device that is connected to this switch will turn on/off 3 times to If your switch has previously been connected to a indicate successful reset. different Hub, you may need to perform a factory reset. You will have to reconfigure your device. -
Page 7: Technical Specifications
Technical specifications Compatible Load Type Load Symbol Load Type Maximum Load Remarks Due to variety of LED lamp designs, maximum number of LED lamps with 1220W @ 230V LED lamps is further dependent transformers 580W @ 110V on power factor result when connected to switch Maximum permitted number of 1220W @ 230V... -
Page 8: Need Help
Servicing is required when the device has been damaged in any way. Operating temperature: -10°C to +50°C Operating relative humidity: < 95% RH (no condensation) Visit heimgard.com for more information and Dispose the product properly at the end of life. This is tips on how to use. - Page 9 heimgard.com...
