BenQ Home Entertainment Series User Manual

Hide thumbs Also See for Home Entertainment Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
cerca il tuo prodotto tra le
Digital Projector
User Manual
Home Entertainment Series I TH690ST
migliori offerte di Videoproiezione

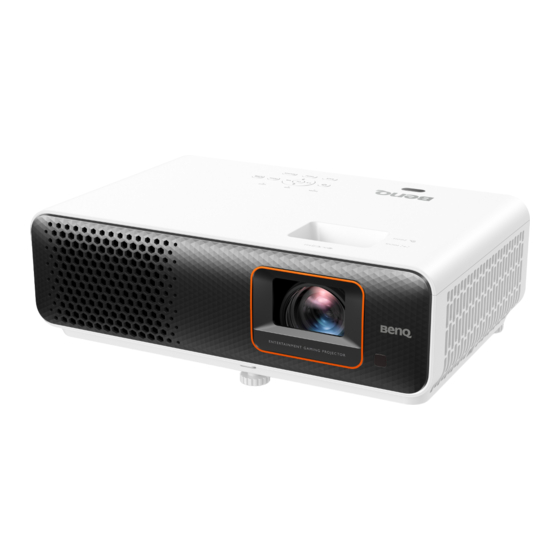

BenQ TH690ST
o
V 1.01

Advertisement

Table of Contents
loading

Related Manuals for BenQ Home Entertainment Series

Summary of Contents for BenQ Home Entertainment Series

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per BenQ TH690ST cerca il tuo prodotto tra le migliori offerte di Videoproiezione Digital Projector User Manual Home Entertainment Series I TH690ST V 1.01...

  • Page 2: Warranty And Copyright Information

    Warranty and Copyright information Limited warranty BenQ warrants this product against any defects in material and workmanship, under normal usage and storage. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included).

  • Page 3: Table Of Contents

    Table of Contents Warranty and Copyright information ................2 Important safety instructions ....................4 Introduction .......................... 7 Shipping contents ............................7 Projector exterior view ..........................8 Controls and functions..........................9 Positioning your projector ....................11 Choosing a location ..........................11 Obtaining a preferred projected image size..................

  • Page 4: Important Safety Instructions

    Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. 1.
  • Page 5 If the projector does obstructed, overheating inside the become wet, disconnect it from the power projector may result in a fire. supply's power outlet and call BenQ to have the projector serviced. Important safety instructions...
  • Page 6 Risk Group 2 16. This product is capable of displaying inverted images for ceiling mount installation. 1. According to the classification of photobiological safety of light source and light source systems, this product is Risk Group 2, IEC 62471-5:2015. 2. Possibly hazardous optical radiation emitted from this product.

  • Page 7: Introduction

    Introduction Shipping contents Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase. Standard accessories Projector Remote control with batteries Power cord Quick start guide Warranty card* Regulatory statements •...

  • Page 8: Projector Exterior View

    • Avoid leaving the remote control and batteries in an excessive heat or humid environment like the kitchen, bathroom, sauna, sunroom or in a closed car. • Replace only with the same or equivalent type recommended by the battery manufacturer. •...

  • Page 9: Controls And Functions

    Controls and functions Projector & Remote control All the key presses described in this document are available on the remote control or projector. 1. POWER/TEMP/LIGHT 5. MODE/PIC MODE (See Indicators on page 44.) Displays the picture mode menu. POWER ( 6.
  • Page 10 Toggles projector audio between on and off. Press to open/close Auto focus page. 12. SOUND MODE *Available on compatible projectors only. Displays the sound mode menu. Decreases or increase the projector volume. Selects a preset picture and sound mode for games ( Bright/Dark Remote control effective range...

  • Page 11: Positioning Your Projector

    This is the most suspended upside-down from the ceiling in front common way to position the projector for quick of the screen. Purchase the BenQ Projector setup and portability. Ceiling Mount Kit from your dealer to mount your projector on the ceiling.

  • Page 12: Obtaining A Preferred Projected Image Size

    All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics.

  • Page 13: Mounting The Projector

    If you use a non-BenQ brand projector mounting kit, there is a safety risk that the projector may fall down due to an improper attachment through the use of the wrong gauge or length screws.

  • Page 14: Adjusting The Projected Image

    Adjusting the projected image Adjusting the projection angle If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. You can screw the adjuster feet to fine-tune the horizontal angle. To retract the feet, screw the adjuster feet in a reverse direction.
  • Page 15 Correcting keystone Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection. To correct the distorted image: 1. Display the 2D Keystone correction page from the following menus. • The setup wizard during the projector initial setup •...

  • Page 16: Connection

    Connection When connecting a signal source to the projector, be sure to: 1. Turn all equipment off before making any connections. 2. Use the correct signal cables for each source. 3. Ensure the cables are firmly inserted. Notebook or desktop computer A/V device Audio cable (for service personnel only)

  • Page 17: Operation

    Operation Starting up the projector 1. Plug the power cord. Turn on the power outlet switch (where fitted). The power indicator on the projector lights orange after power has been applied. 2. Press on the projector or remote control start the projector. The power indicator flashes green and stays green when the projector is on.
  • Page 18 Step 3: Specify 2D Keystone, and choose to activate Auto Vertical Keystone. For more information about keystone, see Correcting keystone on page Step 4: Specify Game Settings. You can select a preferred Room Setting, and adjust more image settings in this menu. Game Settings on page 26 for details.

  • Page 19: Using The Menus

    Using the menus The projector is equipped with 2 types of On-Screen Display (OSD) menus for making various adjustments and settings. The Basic OSD menu provides primary menu functions while the Advanced OSD menu provides full menu functions. To access the OSD menu, press MENU on the projector or remote control. •...

  • Page 20: Securing The Projector

    Securing the projector Using a security cable lock The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a security cable to secure the projector. A security bar is located on the right side of the projector. See item 11 on page 8.

  • Page 21: Switching Input Signal

    Please write down the recall code, and contact BenQ Customer Center. 2. Write down the number and turn off your projector. 3. Seek help from the local BenQ service center to decode Recall Code: the number. You may be required to provide proof of...

  • Page 22: Shutting Down The Projector

    Once detected, the picture from the selected source will appear. If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another signal. • The brightness level of the projected image will change accordingly when you switch between different input signals.

  • Page 23: Menu Operation

    Menu operation Please note that the on-screen display (OSD) menus vary according to the signal type selected and the projector model you are using. The menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

  • Page 24: Advanced Menu

    Living Room/Game/Sports/Cinema From User Management Rename User Mode Brightness 0–100 Contrast 0–100 Sharpness 0–15 Gamma Selection 1.8/2.0/2.1/2.2/2.3/2.4/2.5/2.6/BenQ Native (for Bright picture mode) Color Normal/Cool/Warm (for the rest Temperature picture modes) Color R Gain/ Temperature G Gain/ 0–200 Tuning B Gain...
  • Page 25 Function descriptions Menu Descriptions The projector is preset with several predefined picture modes so that you can choose one to suit your operating environment and input signal picture type. • Bright Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.
  • Page 26 Game Settings menu is only available when Picture Mode is set at Game or HDR Game. • Room Setting You can select a preferred mode from among Bright or Dark. When one of the modes is set, all the functions provided under Game Settings menu will be available for adjustments.
  • Page 27 • Gamma Selection Gamma refers to the relationship between input source and picture brightness. • 1.8/2.0/2.1/BenQ: Select these values according to your preference. • 2.2/2.3: Increases the average brightness of the picture. Best for a lit environment, meeting room or family room.
  • Page 28 You can also set a preferred color temperature by adjusting the following options. • R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue. • R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green, and Blue. •...
  • Page 29 Returns all of the adjustments you’ve made for the selected Picture Mode (including the preset mode, User) to the factory preset values. 1. Press OK. The confirmation message is displayed. Reset Current 2. Use to select Reset and press OK. The current picture mode returns Picture Mode to the factory preset settings.
  • Page 30 2. Main menu: Audio Structure Menu Options Sound Mode Cinema/Music/Game/Sports/User 100Hz/300Hz/ User Sound EQ -10 – +10 1kHz/3kHz/10kHz Audio Output treVolo/S/PDIF/3.5mm Jack Audio Output LPCM/RAW Format Mute Off/On Volume 0 – 20 L/R Switch Off/On Power On/Off Off/On Ring Tone Reset Audio Reset/Cancel Function descriptions...
  • Page 31 Adjusts the volume level of the projector's internal speaker or the volume being output from the audio output jack. Volume If the Mute function is activated, adjusting Volume will turn off the Mute function. L/R Switch The left and right audio channels will automatically swap when selecting On. Sets the ring tone for the projector On or Off.
  • Page 32 3. Main menu: Display Structure Menu Options Aspect Ratio Auto/4:3/16:9 Auto Source Off/On Search Source Rename HDMI-1/HDMI-2 Auto/Frame Sequential/Frame 3D Mode Packing/Top Bottom/Side by Side/Off 3D Sync Invert Disable/Invert HDMI Format Auto/Limited/Full HDMI Equalizer HDMI-1/HDMI-2 Auto/1/2/3/4/5 HDMI EDID HDMI-1/HDMI-2 Enhanced/Standard HDMI Settings Electronics Off/On...
  • Page 33 (with 3D game discs), 3D Blu-ray players (with 3D Blu-ray discs), and so on. After you have connected the 3D video devices to the projector, wear the BenQ 3D glasses and make sure the power is on to view 3D contents. When watching 3D contents: •...
  • Page 34 • HDMI Format Selects a suitable RGB color range to correct the color accuracy. • Auto: Automatically selects a suitable color range for the incoming HDMI signal. • Limited: Utilizes the Limited range RGB 16-235. • Full: Utilizes the Full range RGB 0-255. •...
  • Page 35 4. Main menu: Installation Structure Menu Options Projector Position Front/Front Ceiling/Rear/Rear Ceiling H: -30 – +30 2D Keystone V: -30 – +30 Auto Vertical Off/On Keystone LumiExpert Off/On LumiExpert Level -1 – +1 LumiExpert Manual Manual Calibration Status/Calibrate/ Calibration Reset Manual Calibration Test Pattern Off/On High Altitude...
  • Page 36 • LumiExpert: When this function is enabled, the projector actively detects the ambient light conditions and automatically adjusts balanced visual brightness to create an optimum viewing experience. This function is not available in Test Pattern, or when the Picture Mode is HDR10, HDR Game or HLG.
  • Page 37 Select user preferred aspect ratio, see Screen Fill on page 35 for details. Screen Fill The EDID change is only available on HDMI. to horizontally shift the projected image. Digital Lens Shift • This is only available with HDMI input source. •...
  • Page 38 5. Main menu: System Structure Menu Options Language Background BenQ/Gray/Black/Blue/Purple Background Settings Splash Screen BenQ/Black/Blue Menu Type Basic/Advanced Menu Display 5 sec/10 sec/20 sec/30 sec/Always Menu Settings Time Center/Top-Left/Top-Right/ Menu Position Bottom-Right/Bottom-Left Light Source Usage Time Normal Mode ECO Mode...
  • Page 39 Function descriptions Menu Descriptions Language Sets the language for the On-Screen Display (OSD) menus. • Background Allows you to select the background color for the projector. Background Settings • Splash Screen Allows you to select which logo screen will be displayed during projector start-up. •...
  • Page 40 • Panel Key Lock: With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no control keys on the projector will operate except POWER.
  • Page 41 6. Main menu: Information Structure Menu Options Detected Resolution Source Picture Mode Light Source Mode 3D Format Color System Dynamic Range Light Source Usage Time Firmware Version Service Code Function descriptions Menu Descriptions Detected Shows the native resolution of the input signal. Resolution Source Shows the current signal source.

  • Page 42: Maintenance

    Maintenance Care of the projector Cleaning the lens Clean the lens whenever you notice dirt or dust on the surface. Please be sure to turn off the projector and let it cool down completely before cleaning the lens. • Use a canister of compressed air to remove dust. •...

  • Page 43: Light Source Information

    Light source information Getting to know the light hour When the projector is in operation, the duration (in hours) of light source usage is automatically calculated by the built-in timer. The method of calculating the equivalent light hour is as follows: 1.
  • Page 44 • Setting Auto Power Off This function allows the projector to turn off automatically if no input signal is detected after a set period of time to prevent unnecessary waste of light source life. To set Auto Power Off, go to Advanced Menu - System > Operation Settings > Power On/Off Settings >...

  • Page 45: Troubleshooting

    Troubleshooting The projector does not turn on. Cause Remedy Plug the power cord into the AC power jack on the projector, and plug the power cord into the power outlet. If There is no power from the power cord. the power outlet has a switch, make sure that it is switched Attempting to turn the projector on again during Wait until the cooling down process has completed.

  • Page 46: Specifications

    Output terminals Please visit below website and choose your country to Speaker find your service contact window. 5 watt TreVolo x 2 http://www.benq.com/welcome Audio signal output Transporting Audio jack x 1 SPDIF x 1 Original packing or equivalent is recommended.

  • Page 47: Dimensions

    Dimensions 366 mm (W) x 118 mm (H) x 244 mm (D) Unit: mm Specifications...

  • Page 48: Timing Chart

    84.997 68.667 94.500 XGA_120 (Reduce 119.989 97.551 115.500 Blanking) 1152 x 864 1152 x 864_75 75.00 67.500 108.000 BenQ Notebook 1024 x 576@60Hz 60.00 35.820 46.996 Timing BenQ Notebook 1024 x 600@65Hz 64.995 41.467 51.419 Timing 1280 x 720 1280 x 720_60 45.000...
  • Page 49 3840 x 2160_60 3840 x 2160 (For 4K2K model) (Only HDMI 2.0) The timings showing above may not be supported due to EDID file and VGA graphics card limitations. It is possible that some timings cannot be chosen. • Video timings Supported 3D format Vertical Horizontal...

  • Page 50: Rs232 Command

    RS232 command RS232 pin assignment Serial Serial RTSZ CTSZ Function Type Operation ASCII Write Power On <CR>*pow=on#<CR> Power Write Power Off <CR>*pow=off#<CR> Read Power Status <CR>*pow=?#<CR> Write HDMI(MHL) <CR>*sour=hdmi#<CR> Source Selection Write HDMI 2(MHL2) <CR>*sour=hdmi2#<CR> Read Current source <CR>*sour=?#<CR> Write Mute On <CR>*mute=on#<CR>...
  • Page 51 Write Aspect 16:9 <CR>*asp=16:9#<CR> Write Aspect Auto <CR>*asp=AUTO#<CR> Read Aspect Status <CR>*asp=?#<CR> Write Vertical Keystone + <CR>*vkeystone=+#<CR> Write Vertical Keystone - <CR>*vkeystone=-#<CR> Picture Setting (Continued) Read Vertical Keystone value <CR>*vkeystone=?#<CR> Write Horizontal Keystone + <CR>*hkeystone=+#<CR> Write Horizontal Keystone - <CR>*hkeystone=-#<CR> Read Horizontal Keystone value <CR>*hkeystone=?#<CR>...
  • Page 52 Write High Altitude mode on <CR>*Highaltitude=on#<CR> Write High Altitude mode off <CR>*Highaltitude=off#<CR> Read High Altitude mode status <CR>*Highaltitude=?#<CR> Write Set BenQ gamma value <CR>*gamma=value#<CR> Read Gamma value status <CR>*gamma=?#<CR> Write Set HDR Brightness value <CR>*hdrbri=value#<CR> Read Get HDR Brightness value <CR>*hdibri=?#<CR>...
  • Page 53 Write Set Blue Offset value <CR>*BOffset=value#<CR> Read Get Blue Offset value <CR>*BOffset=?#<CR> Write Primary Color <CR>*primcr=value#<CR> Read Primary Color Status <CR>*primcr=?#<CR> Color Calibration Write Set Hue value <CR>*hue=value#<CR> (only for service) Read Get Hue value <CR>*hue=?#<CR> (Continued) Write Set Saturation value <CR>*saturation =value#<CR>...
