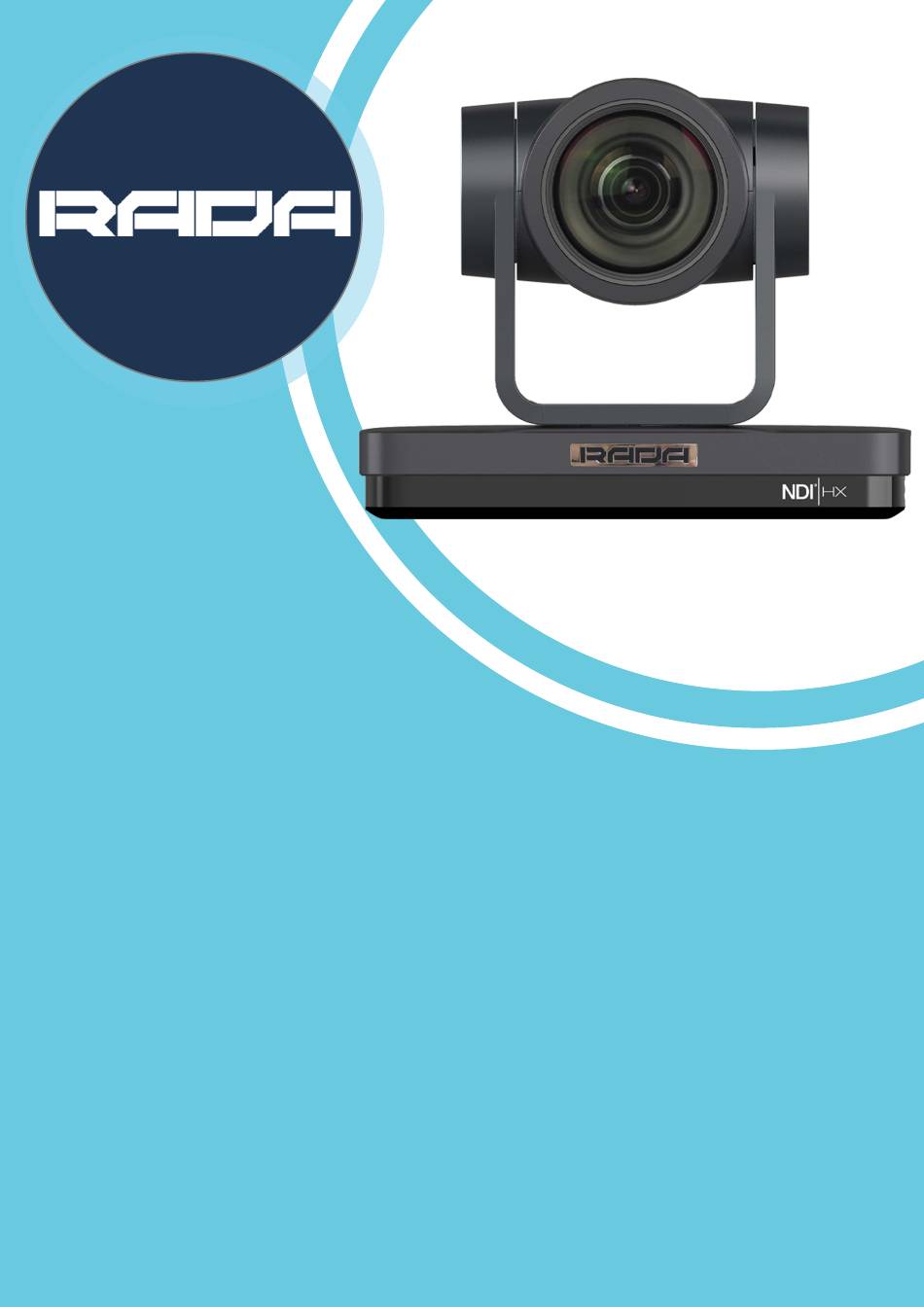

A-TC02
OnyxCam
USER MANUAL
www.a-dena.com
Adena Limited 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OnyxCam A-TC02 and is the answer not in the manual?

Questions and answers

Related Manuals for rada OnyxCam A-TC02

Summary of Contents for rada OnyxCam A-TC02

  • Page 1 A-TC02 OnyxCam USER MANUAL www.a-dena.com Adena Limited 2022...
  • Page 2 This manual provides information relevant to the installation of the A-TC02 OnyxCam, as well as its functions and control methods in details. Please read this manual careful- ly before installing and using the camera. Precautions To avoid damage to the camera, please only use this product in the specified conditions and observe the following precautions: 1) Do not expose the camera and its components/accessories to rain or moisture.
  • Page 3 Installation 1) Do not rotate the camera head violently. Doing otherwise may cause mechanical failure. 2) This camera is designed to be placed on a stable, horizontal surface. Do not install the camera at 3) This product should be placed on a stable desktop or other horizontal surface. Do not install the product at an angle, otherwise your camera’s image will be inclined;...

  • Page 4: Table Of Contents

    Table of Contents ........................1. Quick Installation Guide ..........................1.1 Interface ......................1.2 Connection Diagram ........................ 1.3 Mounting Brackets ......................... 1.3.1 Wall Mount ........................1.3.2 Ceiling Mount ..........................2. Product Overview ..........................2.1 Dimensions ...........................
  • Page 5 ................5.2 Pelco-D Protocol Command List ................5.3 Pelco-P Protocol Command List ..................6. Maintenance and Troubleshooting ....................6.1 Camera Maintenance ......................6.2 Important Notice ......................6.3 Troubleshooting...

  • Page 6: Quick Installation Guide

    1. Quick Installation Guide 1.1 Interface Interface Introduction Audio Input Interface (LINE-IN) Camera Lens 2. Camera Base Rotary Dial Switch RS232 Input Interface (Input) 3. Remote Control Receiving Indicator RS232 Output Interface (Output) Infrared Receiver RS422 Compatible with RS485 5. Tripod Screw Hole Interface 6.

  • Page 7: Connection Diagram

    1.2 Quick Installation Guide 1) After powering on and running a self-check, the camera will automatically return to the preset 0 if it is configured. 2) The default address for the IR remote control is №1. If the camera is returned to factory default settings, the remote control’s default address will also reset to №1.

  • Page 8: Mounting Brackets

    1.3 Mounting Brackets Caution Ceiling or wall mounting brackets can only be mounted on template and concrete walls. For safety reasons, plasterboard walls are not recommended. 1.3.1 Wall Mount...

  • Page 9: Ceiling Mount

    1.3.2 Ceiling Mount...

  • Page 11: Product Overview

    2. Product Overview 2.1 Dimensions 2.2 Accessories When you unpack the product, check that all the supplied accesso- ries are included: Power adapter USB3.0 Cable RS-232 Cable Supplied Quick Installation Guide leaflet Plastic pad IR Remote Control...

  • Page 12: Rs-232

    2.3 RS-232 1) RS-232 Jack Connection method of the camera to a PC or a controller. Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI 2） RS-232 Mini-DIN 8-pin Terminal Definition Definition Port Data Terminal Ready...
  • Page 13 Definitions 3） RS232(DB9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator 4） VISCA Networking Method Networking Method Device 1 Device2 1.DTR 1.DTR 2.DSR 2.DSR...

  • Page 14: Rotary Dial

    The product has RS232 input and output interfaces and can be cascaded in the manner described above. 2.4 Rotary Dial Dial Video Format Dial Video Format 720P59.94 1080P60 ----- 1080P50 ----- 1080P30 ----- 1080P30 ----- 720P60 ----- 720P50 ----- 1080P59.94 ----- 1080P29.97 Caution...
  • Page 15 A-TC02 OnyxCam comes with a preinstalled NDI-HX license, allowing users to fully incorporate the camera into various production scenarios. It can be used with smartphones, tablets, computers, professional AV hardware, and other devices via NDI-HX protocol. Other features include: Full HD Resolution: 1/2.8” high-quality CMOS sensor. Up to 1920x1080 resolution with frame rate up to 60 fps.

  • Page 16: Technical Specification

    Quiet Pan/Tilt Movement: Thanks to the highly accurate stepping motor, camera pans/tilts extremely quietly and smoothly. AI Human Detection: Built-in high-speed processor and advanced image processing and analysis algorithms. Users can choose real-time tracking or regional tracking according to the environment. Multiple Applications: A-TC02 OnyxCam is an excellent choice for Lecture Capture and automatic tracking of the lecturers and presenters, for tracking of the VIPs in corporate and governmental applications, for Video Conferencing,...
  • Page 17 Sub-stream：YUY2/NV12: Video Format 1920×1080/1280×720/1024×576/800×600/800×448/640×360/64 0×480/480×270/320× 180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/8 00×448/720×576/720 ×480/640×360/640×480/480×270/352×288/320×240@30/25/20/ 15/10/5fps; Minimum 0.5Lux (F1.8, AGC ON) illumination 2D﹠3D Automatic, manual, one-push white balance, specified color tem- peratures Focus mode Automatic, manual, one-push focus Auto, manual, shutter priority, aperture priority, brightness priority Exposure mode F1.8 -- F11, CLOSE Iris value...
  • Page 18 Video Encoding Format Network Interface：Supports main stream and sub-stream H.265, H.264 USB3.0 Interface：main stream supports YUY2, MJPG, H264, NV12 Audio input interface Dual channel 3.5mm linear input Audio output interface HDMI, SDI, LAN, USB3.0 AAC, MP3, G.711A Audio compression Network interface 10M/100M adaptive Ethernet port, supports POE power supply, sup- ports audio and video outputs Network protocol...
  • Page 19 Preset quantity Maximum 255 preset positions can be set (10 via the remote control) Other Parameters -10℃ -- +70℃ Storage temperature 20% -- 95% Storage humidity -10℃ -- +50℃ Working temperature 20% -- 80% Working humidity Dimension 181mm×115mm×149mm Weight 1.15kg Environment Designed for indoor use Accessories...

  • Page 20: Remote Control Functions

    3. Remote Control Functions 3.1 IR Remote Control Keys and Commands 1. Standby Key Press and hold for 3 seconds to send the camera into standby mode. Press and hold for 3 seconds again to boot up the camera. It will perform the self-test and return to the “HOME”...

  • Page 21: Ir Remote Control Key Combinations

    Key :Moves the camera up; also used for navigation in the camera’s OSD menu. Key : Moves the camera down; also used for navigation in the camera’s OSD menu. Key : Moves the camera left; also used for navigation in the camera’s OSD menu. Key: Moves the camera down;...

  • Page 22: Osd Menu

    【12)【#】+【#】+【4】: Switch the 11)【#】+【#】+【3】: Switch the video format to 720P60 video format to 1080I50 14)【#】+【#】+【6】: Switch the 13)【#】+【#】+【5】: Switch the video format to 1080P30 video format to 720P50 16)【#】+【#】+【8】: Switch the 15)【#】+【#】+【7】: Switch the video format to 720P30 video format to 1080P25 17)【#】+【#】+【9】: Switch the video format to 720P25 3.

  • Page 23: Web Interface And Settings

    4. Web interface and settings 4.1 Accessing the Web Interface To connect the A-TC02 OnyxCam to network, connect an Ethernet cable to its RJ-45 port and plug it into a switch or router. comes with a static default IP address 192.168.5.163. Use an Ethernet cable to connect the camera to network.

  • Page 24: Configuration - Streaming

    Tracking settings can be adjusted on the “Monocular tracking” page and is described in “4.5 Tracking Settings.” Camera’s streaming, image, and other settings can be changed in the “Configura- tion” page. This page is described in headings 4.3 and 4.4. 4.3 Configuration –...
  • Page 25 Thus, if there are no changes to the camera’s IP or settings, you should be able to access its RTSP stream by entering either of the links below in your network media player or hardware: rtsp://192.168.5.163/live/av0（av0 main stream） rtsp://192.168.5.163/live/av1（av1 sub stream） The same link structure applies if you want to use RTMP: rtmp://192.168.5.163/live/av0（av0 main stream）...

  • Page 26: Configuration - Firmware Update

    To set up streaming, first, fill out the fields accordingly: Host address: this should be the server’s address. Either a domain name or an IP address. Host port: server default port number Stream name: enter the stream key in this field. Username and password: enter the username and password set by the server in these fields if required After you fill out the required information, tick the box under the main and/or sub stream to...

  • Page 27: Monocular Tracking - Tracking Settings

    To update firmware, click “Browse”, select the .mrg file update file, then click “Upgrade”. Your camera will reboot after completing the firmware update. Login again after it finishes to check if the new version is in place. It may be possible that for certain new features to take effect you will need to do a factory reset after updating the camera.

  • Page 28: Serial Port Communication Port

    5. Serial Port Communication Port In normal working state, you can control the camera through RS232/RS485 (VISCA IN) cable. The parameters of RS232 are as below: Baud rate: 2400/4800/9600/115200/second Start Bit：1 bit； Data Bit：8 bit； Stop Bit：1 bit； Verification Bit：None. After powering on, the camera runs a self-check and then returns back to its center position.
  • Page 29 Function Command Command Packet Remark Far(Standard) 8x 01 04 08 02 FF Near(Standard) 8x 01 04 08 03 FF ACM _Focus Far(Variable) 8x 01 04 08 2p FF p = 0(low) - 7(high) Near (Variable) 8x 01 04 08 3p FF 8x 01 04 48 0p 0q 0r 0s Direct pqrs: Focus Position...

  • Page 30: Camera Control Command

    z = device address + 8 Error Messages Command packet Remark Returned when the command format is Syntax Error different or when a command with illegal z0 60 02 FF command parameters is accepted. Indicates that two sockets are already being used (executing two commands) and the Command Buffer Full z0 60 03 FF...
  • Page 31 8x 01 04 00 02 FF Power ON/OFF _Power 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele(Standard) 8x 01 04 07 02 FF Wide(Standard) 8x 01 04 07 03 FF CAM_Zoom Tele(Variable) 8x 01 04 07 2p FF p = 0(low) - 7(high) Wide(Variable) 8x 01 04 07 3p FF...
  • Page 32 Function Command Packet Command Remark Center 8x 01 04 AA 01 FF Bottom 8x 01 04 AA 02 FF 8x 01 04 AA 03 FF Auto 8x 01 04 35 00 FF 8x 01 04 35 01 FF 3000K 8x 01 04 35 02 FF 4000k 8x 01 04 35 03 FF One Push mode...
  • Page 33 Command Packet Function Command Remark 8x 01 04 A9 00 FF CAM_AWB Sensi- WB Sensitivity Setting Normal 8x 01 04 A9 01 FF tivity High 8x 01 04 A9 02 FF 8x 01 04 03 00 FF Reset Manual Control of R Gain 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF...
  • Page 34 Function Command Command Packet Remark Bright mode Bright 8x 01 04 39 0D FF Reset 8x 01 04 0A 00 FF 8x 01 04 0A 02 FF Shutter Setting CAM_Shutter 8x 01 04 0A 03 FF Down 8x 01 04 4A 00 00 Direct pq: Shutter Position 0p 0q FF...
  • Page 35 Command Function Command Packet Remark Down 8x 01 04 0D 03 FF 8x 01 04 4D 00 00 Direct pq: Bright Position 0p 0q FF 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF Exposure Compensation...
  • Page 36 Command Function Command Packet Remark P=0-8 0:OFF 8x 01 04 54 0p FF p = 0 – 4 CAM_Gamma 0：Default 1：0.45 8x 01 04 5B 0p FF 2：0.50 3：0.55 4：0.63 8x 01 04 2D 01 FF Low-Light Mode Setting CAM_Low-Light Mode 8x 01 04 2D 00 FF 8x 01 04 4C 00 00 CAM_Gain...
  • Page 37 Command Packet Command Function Remark 8x 01 04 63 00 FF 8x 01 04 3F 00 pq pq: Memory Number (=0 to 254) Reset CAM_Memory Corresponds to 0 to 9 on the 8x 01 04 3F 01 pq Remote Commander 8x 01 04 3F 02 pq Recall 8x 01 04 61 02 FF...
  • Page 38 Function Command Remark Command Packet CAM_Setting Reset Reset 8x 01 04 A0 10 FF Reset Factory Setting 8x 01 04 A1 00 00 pq: Brightness Position Direct CAM_Brightness 0p 0q FF 8x 01 04 A2 00 00 Direct CAM_Contrast pq: Contrast Position 0p 0q FF 8x 01 04 A4 00 FF Flip-H...
  • Page 39 Command Command Packet Function Remark 8x 01 06 01 VV Upleft WW 01 01 FF 8x 01 06 01 VV Upright WW 02 01 FF 8x 01 06 01 VV DownLeft WW 01 02 FF 8x 01 06 01 VV DownRight WW 02 02 FF 8x 01 06 01 VV...

  • Page 40: Inquiry Command

    Command Function Command Packet Remark 8x 01 06 07 01 0W Clear 07 0F 0F 0F 07 0F 0F 0F FF 81 0A 01 32 00 00 Tracking OFF/ON Tracking OFF 03 00 FF 81 0A 01 32 00 00 Tracking ON Tracking 02 00 FF...
  • Page 41 Command Command Packet Return Packet Remark y0 50 03 FF Front y0 50 00 FF CAM_AFZoneInq 8x 09 04 AA FF y0 50 01 FF Beting Meeting y0 50 02 FF Education y0 50 03 FF y0 50 04 FF Moving y0 50 05 FF Middle...
  • Page 42 Command Command Packet Return Packet Remark Full Auto y0 50 00 FF CAM_AEModeInq Manual y0 50 03 FF 8x 09 04 39 FF Shutter priority y0 50 0A FF Iris priority y0 50 0B FF Bright y0 50 0D FF CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF...
  • Page 43 Command Packet Return Packet Command Remark y0 50 02 FF SYS_MenuModeInq 8x 09 06 06 FF y0 50 03 FF y0 50 02 FF CAM_LR_ReverseInq 8x 09 04 61 FF y0 50 03 FF y0 50 02 FF CAM_PictureFlipInq 8x 09 04 66 FF y0 50 03 FF CAM_ColorSatura- y0 50 00 00 00 0p FF...
  • Page 44 Command Packet Command Return Packet Remark ab cd : vendor ID ( 0220 ) y0 50 ab cd mn pq : model ID CAM_VersionInq 8x 09 00 02 FF mn pq rs tu vw FF rs tu：ARM Version vw：reserve P: 0~E Video format 0:1080P60 1:1080P50 2:1080i60...

  • Page 45: Pelco-D Protocol Command List

    5.2 Pelco-D Protocol Command List Function Byte1 Byte2 Byte3 Byte7 Byte5 Byte6 Byte4 0xFF 0x00 Address Pan Speed 0x08 Tilt Speed Down 0x10 Pan Speed Address 0x00 Tilt Speed 0xFF 0x04 Address 0x00 Pan Speed Left 0xFF Tilt Speed Pan Speed Right Address 0x00...

  • Page 46: Pelco-P Protocol Command List

    5.3 Pelco-P Protocol Command List Function Byte8 Byte2 Byte6 Byte7 Byte1 Byte3 Byte4 Byte5 0xA0 0x08 Pan Speed Address 0xAF 0x00 Tilt Speed Down Address 0xA0 0x10 Pan Speed Tilt Speed 0xAF 0x00 Address Tilt Speed 0xA0 0x04 Pan Speed Left 0xAF 0x00...

  • Page 47: Maintenance And Troubleshooting

    6. Maintenance and Troubleshooting 6.1 Camera Maintenance 1）If you are not going to use the camera for a long time, please keep it pow- ered off. 2）Use a soft cloth or lotion-free tissue to clean the camera body. 3）Use a soft, dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent.
  • Page 48 Abnormal display of image 1. Check settings of the rotary dial on the rear of camera. Be sure to use the resolution and refresh rate that is supported by your software. Image is shaky or vibrating. 1. Check whether the camera is mounted solidly or sitting on a steady horizon- tal and level surface.
