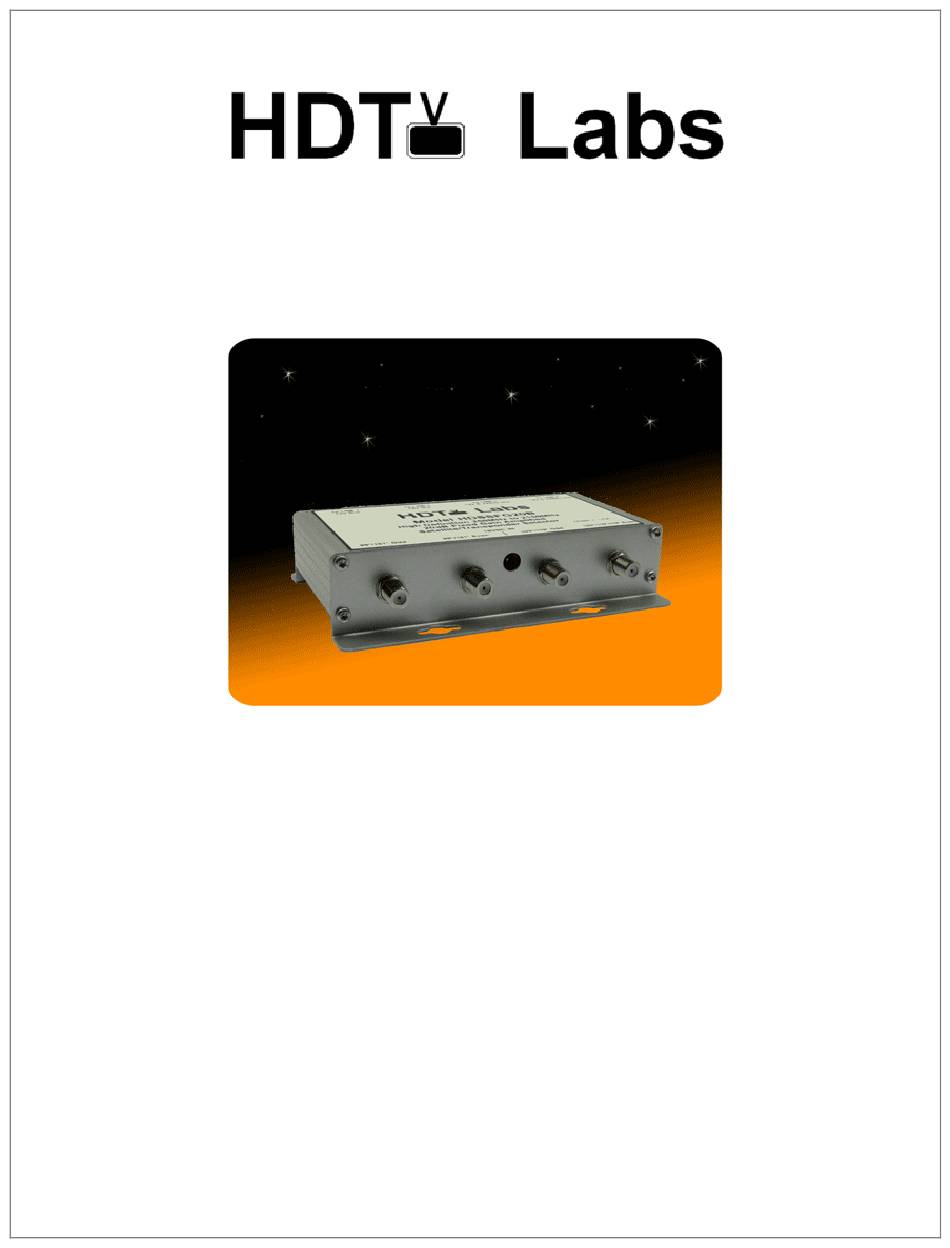

- Page 1 20 dB Fixed Gain 4-Port Amplifier Model HD4PNBFG20B Instruction Manual www.hdtvlabs.tv...
- Page 2 Proper output signal should be checked with a meter to prevent overdriving any of the system's four channels. Check our website at www.hdtvlabs.tv for the latest instruction manual updates. This is HD4PNBFG20B Rev. 1.1...
- Page 3 Each channel has a fixed gain in excess of 20dB with 6dB slope compensation and covers a frequency range of 250MHz to 2150MHz. The HD4PNBFG20B is used in conjunction with stacked, multiswitch, and head-end systems to overcome cable, splitter, tap, and other system losses.
- Page 4 DC Supply Current………………………………... 650mA For Indoor Use Only. The HD4PNBFG20B is supplied with an external 12VDC power supply. Operating temperature of the HD4PNBFG20B is –40 C to +85 C. The mechanical dimensions are 6.4”W 4.4”L 1.5”H (Specifications subject to change without notice.) Notes: Absolute Maximum Power is the total power that arrives at the amplifier input from 250MHz to 2150MHz.
