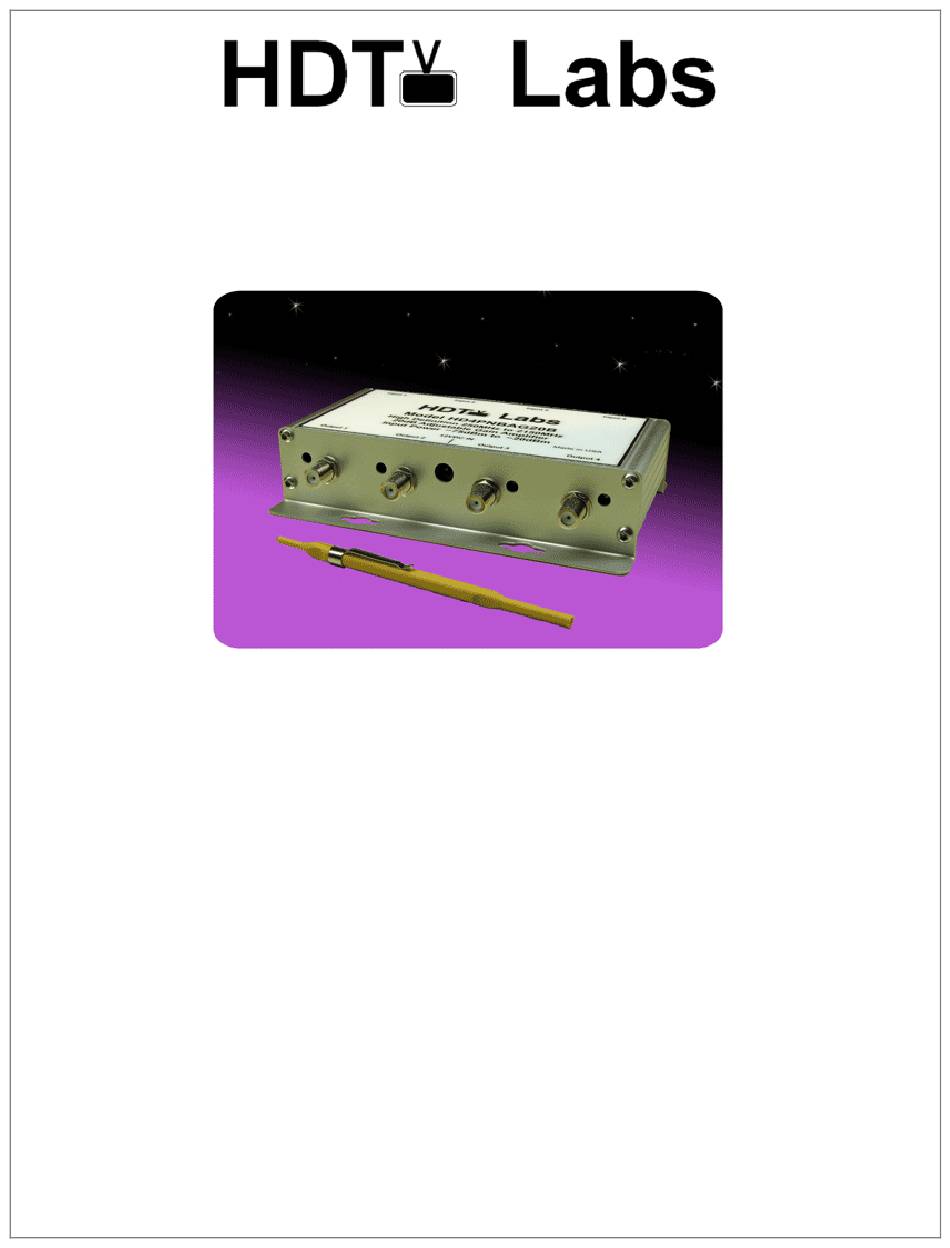

- Page 1 20 dB Adj. Gain 4-Port Amplifier Model HD4PNBAG20B Instruction Manual www.hdtvlabs.tv...
- Page 2 Proper output signal should be checked with a meter to prevent overdriving any of the system's four channels. Check our website at www.hdtvlabs.tv for the latest instruction manual updates. This is HD4PNBAG20B Rev. 1.1...

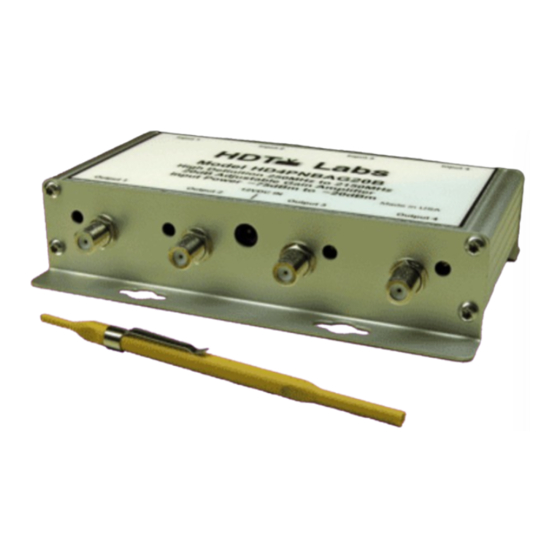

- Page 3 20dB Adjustable Gain Amplifier Description The HD4PNBAG20B is a Professional-Grade 4-channel 20dB adjustable gain amplifier designed to recover low-level signals that may be well below the threshold of most satellite power meters. Each channel has an adjustable gain of -5dB to 20dB with 6dB slope compensation and covers a frequency range of 250MHz to 2150MHz.
- Page 4 12VDC ………………………………………...…... DC Supply Current 650mA For Indoor Use Only. The HD4PNBAG20B is supplied with an external 12VDC power supply. Operating temperature of the HD4PNBAG20B is –40 C to +85 C. The mechanical dimensions are 6.4”W 4.4”L 1.5”H (Specifications subject to change without notice.) Notes: Absolute Maximum Power is the total power that arrives at the amplifier input from 250MHz to 2150MHz.
