Eclipse POWERSHADE MH005 Programming Instructions

INITIAL SET UP

1. To start you will need an installed motorised
blind, remote control and push pin/paper clip/
pen. For installation, please follow Powershade
Assembly Instructions.
2. Make sure when fitting the blind into the
brackets that the motor with
& charge port are facing downwards (towards you).
3. Reset the motor by pressing and holding the
SET button on the motor for approx
8 SECONDS until the motor BEEPS (SLOW & FAST).

LINK REMOTE TO MOTOR

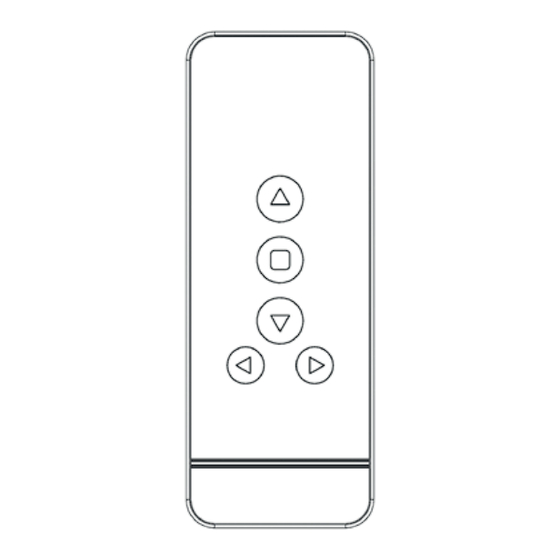

4. If using a multi-channel remote control, select the desired channel. Use the buttons
to select channel. If not using multi-channel remote, continue to step 6.
5. To link the remote control to the motor, first press and hold the SET
the motor BEEPS (SLOWLY).
Press "C" on the back of remote control while the motor IS BEEPING. The motor will beep fast
6.
to indicate the remote control is linked to the motor.

CHANGING MOTOR DIRECTION

7. Check whether the motor is turning in the correct direction. To do this, press the button
on the remote control. If the blind moves down, the motor direction does not need to be
adjusted. If pressing the button raises the blind, you need to adjust the motor direction.
8. To change the motor direction: press and hold both "L" and
on the back of the remote first). The motor will BEEPS FAST to confirm change. Check
the blind is now moving in the correct direction for the arrows. If not, please repeat step 8.

SET BLIND LOWER LEVEL

Press and hold "L" on the back of the remote control until the motor BEEPS FAST.
9.
The motor is now in LEVEL SETTING MODE.
10. Press the button on the remote control. The blind will begin to lower.
11. When the blind is nearing the preferred lower level, press the button on the remote control.
12. Press buttons to accurately position the lower level.
When the blind has reached the correct position, press "C" on the back of remote control.
13.
The motor will BEEP FAST to confirm level position is set. This concludes the lower level
14.
setting but the motor is still in LEVEL SETTING MODE.
PROGRAMMING INSTRUCTIONS
SET button
SET
FRONT
MULTI
SINGLE
CHANNEL CHANNEL
REMOTE
REMOTE
UP STOP DOWN
button on the motor until
button (TIP: Press "L" button
FOR MH005
BACK
C
L
LEFT RIGHT
