Eclipse INTU Beadfit Installation Manual

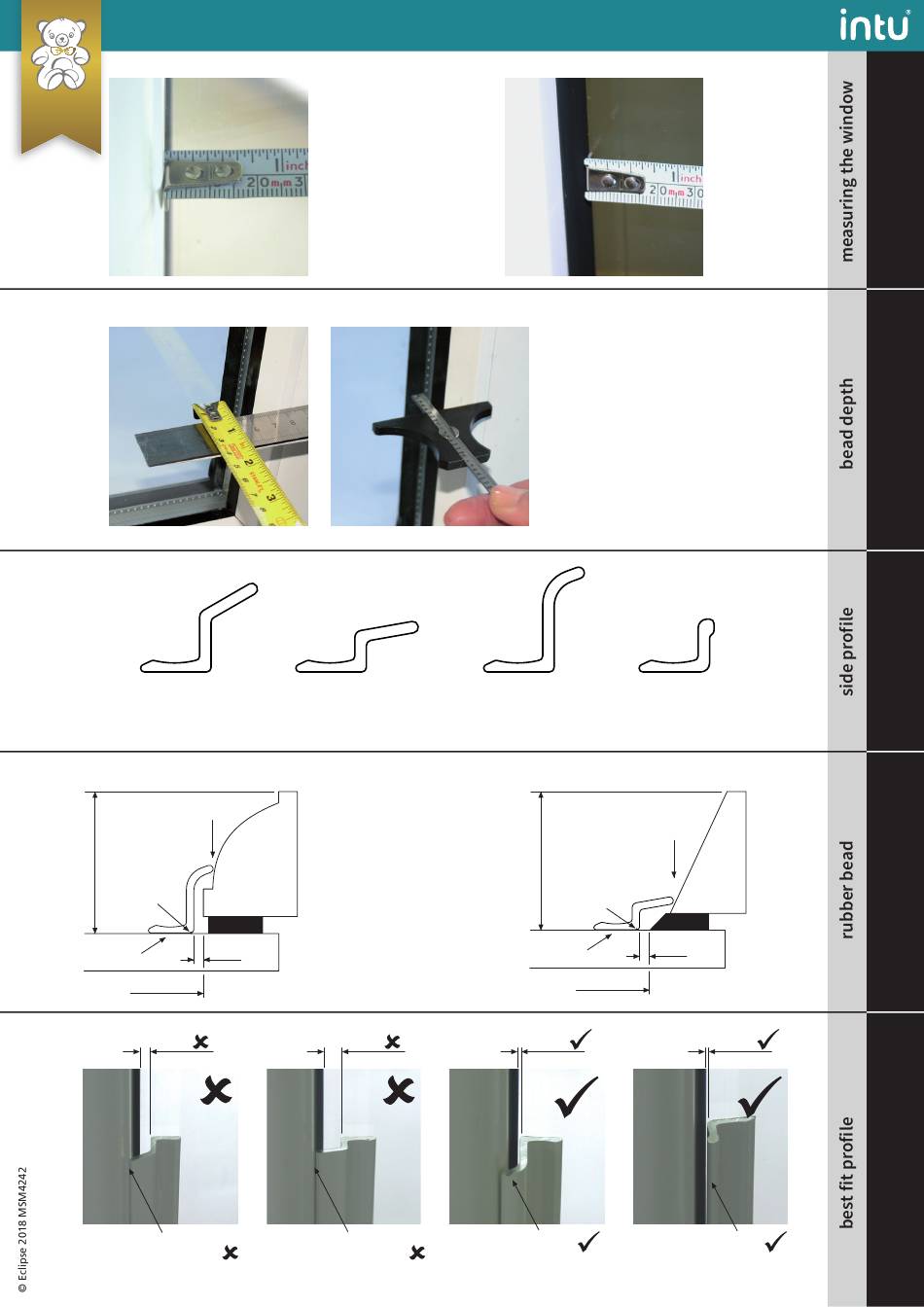

Installation Survey Guide – INTU
.
.
Flush or Recessed Rubber Bead
.
.
CHILD SAFE
PRODUCT
Tape Measure
Profile A
Flush or Recessed Rubber Bead
bead depth:
min. 11mm
max. 27mm
P
F
clear glass size
greater than
1mm
gap between profile
and plastic bead
Where the gap is greater than 1mm, this size must be deducted from clear glass size (both sides)
Measure clear glass width
and drop
• min. width: 240mm
• max. width: 1400mm
• max. drop: 2000mm
• max. area: 1.5 sq m
Depth Gauge (TP487)
Profile B
All profiles are shown at 2× actual size
Select side profile that:-
Y
• gives best fit at Y,
• has max. 1mm gap
between point P and clear
glass size,
Plastic
Bead
• keeps face F flat on glass
Rubber Bead
1mm max.
Glass
greater than
1mm
gap between profile
and plastic bead
Beadfit
®
Proud Rubber Bead
For beads above 27mm use INTU® Screwfit
• bead depth 19 to 27mm: no endcap spacer
• bead depth 15 to 18mm: 1 endcap
spacer per side
• bead depth 11 to 14mm: 2 endcap
spacers per side
• min. bead depth: 11mm
Ensure windows have suitable rubber
bead that accepts fitting of bracket
Profile C Profile D
Proud Rubber Bead
Y
bead depth:
min. 11mm
max. 27mm
P
F 1mm max.
clear glass size
less than
1mm
good fit
Plastic
Bead
Rubber Bead
Glass
less than
1mm
good fit
A
B
C
D
E
