ENJOY GODFATHER User Manual

Creative multi channel audio processor
Hide thumbs Also See for GODFATHER:
Table of Contents

Advertisement

Quick Links

Download this manual
CREATIVE MULTI CHANNEL AUDIO PROCESSOR
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GODFATHER and is the answer not in the manual?

Questions and answers

Related Manuals for ENJOY GODFATHER

Summary of Contents for ENJOY GODFATHER

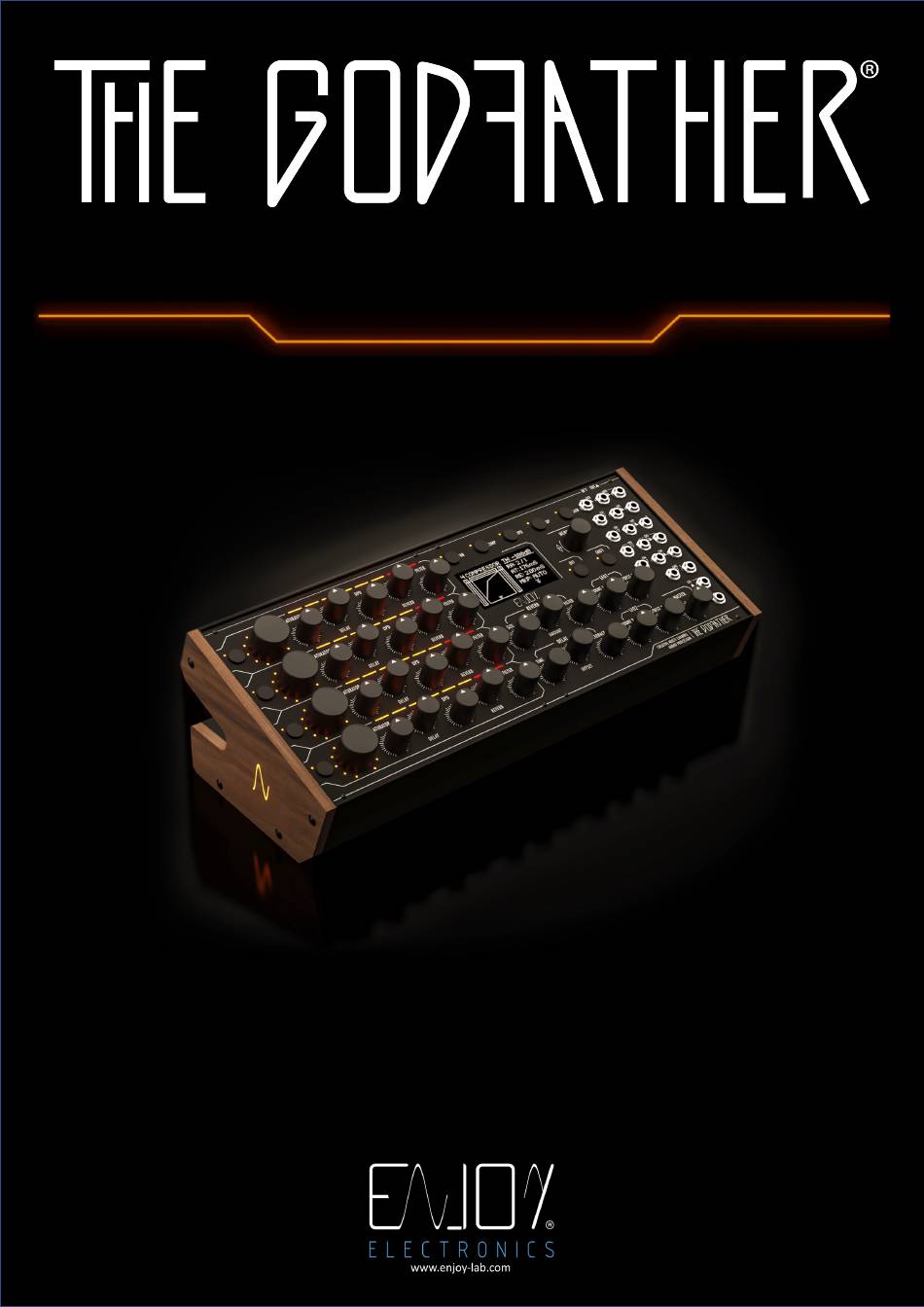

  • Page 1 CREATIVE MULTI CHANNEL AUDIO PROCESSOR USER GUIDE...

  • Page 2: Table Of Contents

    AUDIO INPUT AUDIO OUTPUT CV Input CV OUT GATE INPUT / CLOCK INPUT GATE OUT MIDI IN INPUT MIDI OUT The GodFather Overview Channels section Processing for each channel ● Level ● EQ Shape ● Saturator ● Pan ● Gain ●...
  • Page 3 Reverb Amount Rate Destination Shape Working Mode Normal Change Automation Mute a channel Bypass MIDI MIDI Control Change Table Software update WARRANTY: Legal disclaimer User Manual The GodFather Multichannel Audio Processor RL.0.901A...

  • Page 4: The Godfather

    11. The contents of the memory can be irreparably lost due to malfunctions, or due to incorrect use of the unit. Enjoy Lab assumes no responsibility for the loss of stored content (presets / settings) which may be lost. Caution Any changes and/or modifications not expressly approved in this manual may void your authority in operating with the equipment.

  • Page 5: Warning

    The GodFather can be removed from its case and installed into a Eurorack system as a 60HP module. Before doing this, it is important to note that The GodFather draws a maximum of 900mA from a +12V rail due to the many LEDs available on the panel. It does not use the -12V rail at all.

  • Page 6: Patchbay

    −12V. Enjoy Lab may not be held responsible in any way for probems or damage to persons or property or to the device itself, if the device is not connected as indicated above.

  • Page 7: Audio Input

    A clock signal plugged into this Jack can be used as the Global Tempo GATE / CLOCK INPUT: 0V to + 5V ( +10V Tolerant-) (Rising edge = Clock Pulse) GATE OUT A clock signal based on the Global Tempo tempo of The GodFather is available here. Gate Out value 0V to +5V...

  • Page 8: Midi In Input

    MIDI IN INPUT MIDI information is received via this jack using the five-pin DIN socket to 3.5mm MINI jack (MIDI Type A) adapter included with your The GodFather. The GodFather can receive master clock (TEMPO) information, and various CC (Control Change) messages via MIDI (see MIDI Control Change table).

  • Page 9: Processing For Each Channel

    ● Trigger key of the working modes ● Channel “REVOLVER” encoder Assignable with push button ● Saturation adjustment potentiometer ● Delay level potentiometer ● Double Pulse level potentiometer ● Potentiometer Send Reverb ● Hi-Pass / Low Pass Filter Potentiometer The channel "REVOLVER" encoder adjusts the audio level of the channel by default. The function keys assign the parameter to be adjusted for each channel to the channel "REVOLVER"...

  • Page 10: Eq Shape

    ● EQ Shape Allows you to set the frequencies for the Low cut and High cut filters of each channel. Simultaneously press the "SHIFT" key and the "GAIN" key to enter the settings for the "EQ SHAPE". Rotating the channel encoder it is possible to select the cut-off frequency of the “LOW CUT”...

  • Page 11: Pan

    (YELLOW LED rarely on or always off in the presence of the input signal) we recommend adjusting the output level of the relative sound source connected to The GodFather, or alternatively adjust the "GAIN" of the GodFather, bringing the peak level to touch the clip (RED LED).

  • Page 12: Time

    “TIME” delays are synchronized to “GLOBAL TEMPO” The delay section consists of 3 encoders: “TIME” the tempo adjustment takes place in Divisions of Beats with respect to the GLOBAL TEMPO Turning the TIME encoder changes the delay time of all channels simultaneously. It is possible to adjust the time setting of one or more channels at a time, by pressing and holding down the revolver encoder of the channel or channels whose time you want to adjust and adjust it using the TIME encoder.

  • Page 13: Feedback

    rotate the “OFFSET” encoder. The “LED PANEL INTERFACE” will show the set “OFFSET” value for each channel, while the display shows all the “DELAY” settings of all channels. “FEEDBACK” The “FEEDBACK” encoder adjusts how much output signal from each channel is sent back to the inputs of the delay lines.
  • Page 14 All channel or multi-channel LEDs will be “RED” when the value is 100% indicating infinite delay mode, while the display shows all delay settings for all channels. To temporarily restore the "FEEDBACK" value from any value to a value of "0" for all channels simultaneously (e.g.

  • Page 15: Double Pulse

    ● DOUBLE PULSE The DOUBLE PULSE DELAY that we will also call DPD allows you to add, for each channel, another two repeat lines within the main delay repeats. By keeping the DPD function key pressed, the led bars will show the position of the repetitions of each channel, the yellow led indicates the position of the first repetition, while the red led indicates the position of the second repetition.

  • Page 16: Menu - Commander Area

    Note that the tempo is defined and indicated based on the selected division values. MIDI clocks The GodFather will calculate the tempo from the midi messages by averaging the values received in a few seconds. CV Gate The GodFather will calculate the tempo from Clocks received via the GATE1 or GATE2 Jack depending on the setting, averaging the received values over a few seconds.

  • Page 17: Reverb

    Reverb The GodFather features a reverb capable of creating a spacious and warm sound. The sound of each channel can be sent to the Reverb via the send pot that each channel has. The AMOUNT control adjusts the output level of the reverberated signal.

  • Page 18: Shape

    RATE/DESTINATION encoder of each LFO Working Mode The GodFather is equipped with 3“WORKING MODE”, they allow to change the audio flow within the Delay section, with the addition, replacement and cancellation of the input sounds, output sound and within the feedback of the Main Delay.

  • Page 19: Change

    If you are using a 5-pin MIDI cable for external control or sync, connect the MIDI OUT of your MIDI controller to the MIDI IN on your The GodFather. By default, the GodFather is set to receive MIDI data on MIDI Channel 1.(see MIDI Control Change table).
  • Page 20 Parameter MIDI CC# Range CH1 Saturator 0 - 127 CH1 Delay Level 0 - 127 CH1 DPD Level 0 - 127 CH1 Reverb Send 0 - 127 0-63 Low Pass / 64 NO CH1 Filter FILTER / 65-127 High Pass CH2 Saturator 0 - 127 CH2 Delay Level...
  • Page 21 CH3 LEVEL 0 - 127 CH4 LEVEL 0 - 127 0-63 to left / 64 CENTER / CH1 PAN 65-127 to right 0-63 to left / 64 CENTER / CH2 PAN 65-127 to right 0-63 to left / 64 CENTER / CH3 PAN 65-127 to right 0-63 to left / 64 CENTER /...

  • Page 22: Software Update

    Software update The firmware update can improve stability, fix bugs and add new functions. By registering your The GodFather on our site, you will receive by email information on the availability of updates From our website (www.enjoy-lab.com) you have access to the Enjoy Web Programmer page,to update you will need an updated version of google Chrome, at least version 61 or newer.
  • Page 23 ○ RFI/EMI (interference/noise) caused by improper grounding or the improper use of either certified or uncertified equipment. ○ any other causes determined by ENJOY LAB to be the fault of the user, are not covered by warranty (normal service rates will be applied).

  • Page 24: Legal Disclaimer

    In no event shall Enjoy Lab be liable for any special, indirect, or consequential damages or any damages whatsoever resulting from loss of use, data, or profits, whether in an action of contract, negligence, or other action, arising out of or in connection with the use or performance of this information.
