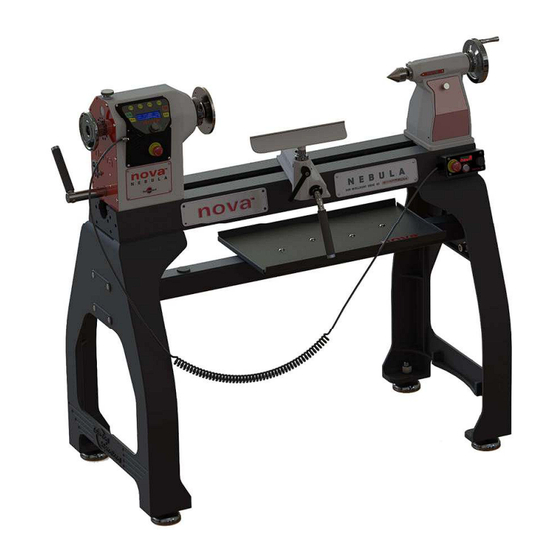

WELCOME: Thank you for choosing the NOVA NEBULA 18” DVR Lathe and welcome to the NOVA product family. Your choice shows that you want the best for your woodturning and you recognize the superb DVR drive technology powered by STRIATECH and the host of other unique features the NOVA NEBULA Lathe has to offer. -
Page 3: Table Of Contents
Contact ....................................2 Table of Contents ................................... 3 1.General Safety Rules ................................5 2.NOVA Nebula 18” DVR Lathe Features & Specification ..................... 6 3.Shipping Contents ................................8 4.Setup and Assembling the Lathe ............................9 4.1 Unpacking and Preparing the Lathe ........................ 10 4.2 Installing Stand and Beam Set ........................ - Page 4 9. Teknatool Warranty ................................. 38 10. NOVA Nebula Lathe Breakdown ............................ 39 11. NOVA Nebula Lathe Parts List ............................44 12. NOVA Nebula Wiring Diagram ............................46 128-0521-002...
-
Page 5: General Safety Rules
DIRECTION FEED Mind direction them to rain. Keep work area well lighted. The NOVA spindle/chuck/work to ensure a safe environment. NEBULA is intended for indoor use only. Failure to do so PAY ATTENTION TO WORK . Concentrate on your work. If may void the warranty. -
Page 6: Nova Nebula 18" Dvr Lathe Features & Specification
NOVA Nebula 18” DVR Lathe Features & Specification Feature Name Description The DVR motor uses smart motor technology to provide an incredibly smooth and DIGITAL VARIABLE RELUCTANCE powerful drive. The controller constantly monitors the spindle position and (DVR) ELECTRONIC DRIVE maintains optimal spindle speed. - Page 7 Lathe Specifications Metric Imperial Swing Over Bed 457.2mm 18” Distance Between Centres 640 mm 25” Overall Size 1200mm (L) x 600mm (w) x 1250mm(H) 47.2” (L) x 23.6” (w) x 49.2” (H) Package Size 1280mm (L) x 550mm (w) x 737mm (H) 50.4”...
-
Page 8: Shipping Contents
3.Shipping Contents ITEM NUMBERS DESCRIPTION Headstock Assembly (+HMI) 5569002 + 5569008+5699005 Tool slide Assembly 5569004 Tailstock Assembly 5569003 Main Bed 5569013 Euro Locking Ring* 5569039 1 ¼ Model 6” (150mm) Face Plate FP150L M33 Model ASR Faceplate (150mm) * 5569033 Remote controller 5569006 Lathe stand... -
Page 9: Setup And Assembling The Lathe
Lathe location Locate the NOVA Nebula lathe close to a power source in an area with good amount of lighting. Leave enough clearance when the lathe headstock is swiveled around. Other machines in the workshop should not interfere with the movement/operation of the lathe. -
Page 10: Unpacking And Preparing The Lathe
Do not use an abrasive pad, and do not allow solvents to contact painted or plastic areas. WARNING! Seek help when moving the NOVA NEBULA DVR 1825 lathe and its heavier components to help avoid risk of injury. Use straps in good condition. Straps/lifting mechanisms must be properly rated for lathe weight. - Page 11 ASSEMBLY NOTE Spring Washer Bolt Washer Repeat for all 8 bolt holes on Stand 2. Install Beam member between Stands (Figure above) and tighten the Bolts against beam mounting surface. ASSEMBLY NOTE Spring Washer Tray Bolt Washer Repeat for all 4 bolt holes on Beam 3.
-
Page 12: Lifting Mechanisms Method
4.2.1 Lifting Mechanisms Method 1. Position straps around lathe bed. IMPORTANT: Do not place straps around spindle, near levers, knobs or other parts that can be damaged when lifting. Align the lathe bed mounting holes with the slots on the stand legs before inserting the bolts. - Page 13 Mounting the Headstock, Toolrest and Tailstock onto the Bed 1. Slide headstock, toolrest, and tailstock onto bed, ensuring lock plate (A) is correctly lined up with bed way (B), as shown below: Note: Turn the lock handle to adjust the position of the lock plate if they cannot slide onto the lathe bed section.
-
Page 14: Positioning The Headstock On The Bed
4.3 Positioning the Headstock on the Bed The headstock on the NOVA Nebula DVR 1825 Lathe uses a cam lock assembly for securing in place along the bed. To move the headstock: 1. Insert the lock handle or knockout bar into the through hole in the locking shaft and loosen the shaft (shaft can be tightened by rotating either direction, so rotate the opposite direction it was tightened). -
Page 15: Toolrest
4.4 Toolrest To move the Toolslide along the bed, loosen the Toolslide Clamp Handle, move the slide to the desired position, and tighten the clamp handle. Adjust the Toolrest close to the work piece. Exact positioning may be varied to suit the turner. Revolve the stock by hand to make sure it clears the rest before starting the lathe. -
Page 16: Lathe Alignment
1. Sharp pointed method: Attach any known straight, sharp pointed tool (E.g., Spur and live centres) on the headstock spindle and tailstock quill to check for axial alignment between headstock and tailstock. Double ended 2 Morse Taper method (NOVA 2MTNA Acruline 2MT Alignment SKU 2MTNA). 1. Sharp pointed method: a. -
Page 17: Mounting A Faceplate Or A Chuck
Double ended 2 Morse Taper method: a. Lock the Headstock at 0° by using the locking handle on the bed. b. Firmly install a double ended 2MT alignment tool on headstock. c. Release the tailstock Alignment Plates by loosening the bolts underneath the tailstock. d. -
Page 18: Mounting On The Standard Version Spindle
4.7.1 Mounting on the Standard Version Spindle Make sure there is no gap between faceplate Use the Spindle Index Pin to lock the headstock and spindle spindle before commencing. Step 1: Step 3 Use the Allen key to remove the safety screw from Step 1 the faceplate or chuck before installation. - Page 19 Locking Ring Installation Procedure Step 4 Step 3 Step 2 Use the Spindle Index Pin to lock the headstock spindle before commencing. Step 1: Thread the M33 ASR faceplate or chuck onto the spindle thread all the way in. Check that the spindle and the faceplate/chuck are touching at the clamping ridge.
-
Page 20: Connecting To Power
110-115V Version 220-240V Version Note: This image on the left-hand side is the European version of the NOVA Nebula wood lathe. Other versions will have a hard-wired power cable (shown on the image on the right-hand side). The power cord that is installed on the NOVA Nebula lathe will have a three-prong plug which includes a ground prong. -
Page 21: Ground Fault Interrupters (Gfi)
5.2 Input Voltage Selection The NOVA Nebula lathe is capable of handling both 110V and 220V without any changes to its internal circuits. The lathe will automatically recognize the input voltage to the lathe and adjust the output power. Simply change the input power plug to a suitable plug for the desired input voltage to change the lathe’s input voltage. -
Page 22: Lathe Operation On Hmi Panel - Human Machine Interface Panel
6. Lathe Operation on HMI Panel - Human Machine Interface Panel 6.1 Keypad Definition on HMI Panel There are eight keys, one speed knob and EMS on the HMI panel for the lathe operation. The 2004 LCD can show the status of the lathe in real time. The key functions are defined as: Icon Description... -
Page 23: Start-Up
6.2 Start-up After turning on the main swich, the lathe will perform a self-check for 15 seconds. The self-checking operation will play a short piece of music, and a warning message will show up on the screen. The self-check is successful when the LCD displays the “Ready to run”... -
Page 24: To Stop The Lathe
To Stop the Lathe There are two options to stop the lathe: 6.4.1 Normal Stop. Press the key once while the lathe is running, the motor will be stopped with/without brake. The LCD will display the Home page after pressed. 6.4.2 EMS Stop Push the Emergency Stop (EMS) button while the lathe is running, the motor will be stopped with/without brake. -
Page 25: Forward/Reverse Selection
6.5 Forward/Reverse selection Press the key while the LCD is on the Home page - the direction indicator will be toggled between forward and reverse. *For your safety, do not change the direction while the lathe is running. 6.6 Speed Control Nebula HMI provides multiple methods of speed control. -
Page 26: Pre-Set Programmable Favourite Speed Function
6.6.2 Pre-set Programmable Favourite Speed Function While the LCD is on the Home Page or the Motor Running page, press any function keys , and the LCD will display the Favourite Speed Page as below. Press to Confirm the speed and then the Favourite speed selected on the Home Page. Press to Cancel the selection and go back to the Home Page. -
Page 27: Advanced Functions In
6.7 Advanced Functions in <Menu> You can find the following Advanced functions in the <Menu>: 1. Speed Chart 2. Input Set Speed 3. Edit Fav Spd #1-8 4. Profile 5. Customize F Keys 6. Lathe Settings 7. Wireless remote 8. -
Page 28: Speed Chart
6.7.1 Speed Chart to select cut type Press to confirm selection Or press to go back to select work size Press to confirm selection Or press to go back Press to confirm Press to cancel 6.7.2 Input Set Speed to set desired speed Press to confirm selection Press... -
Page 29: Edit Favourite Speed
6.7.3 Edit Favourite Speed Turn to select Fav #. Press to continue Press to cancel to set desired speed Press to continue Press to cancel Push to confirm new setting saved in memory After confirming, press to go back to the Home Page Note: The speed shown on the lathe is only a guideline. -
Page 30: Customize F Keys
6.7.5 Customize F Keys Turn and select Customize F keys Press to continue Press to cancel 6.7.5.1 F1-F4 Functions Press to toggle between: Favourite Speed (Displayed as: Fav Speed) Speed Up/ Down User Custom *Favourite speed is default. Press key to return to the home screen. -
Page 31: Lathe Settings
6.7.6 Lathe Settings key to enter “Lathe Settings”. 6.7.6.1 Display Size: Change the font size on the display. or press to toggle the setting between Normal and Large. 6.7.6.2 Assisted Brake: Turn on or off the Brake when <OFF> bottom is pressed. or press to toggle the settings between ON and OFF. -
Page 32: Wireless Remote
6.7.7 Wireless Remote The NOVA DVR Wireless Remote II (SKU 55522) can be used for easier to control your NOVA Nebula lathe. (Refer to wireless remote manual for installation procedures). key to enter “Wireless Remote” function. There will be two options available: ... -
Page 33: Password Lock
6.7.9 Password Lock 6.7.9.1 Set Password to select Set Password Press to continue Or press to quit to set New Password Press to confirm Press to exit 6.7.9.2 Clear Password to select Clear Password Press to continue Or press to quit to Enter Current Password Press to confirm... -
Page 34: Firmware Upgrade
6.7.10 Firmware Upgrade The firmware version of the HMI can be upgraded via the included USB cable accessory and a PC with internet access. Be sure to check https://www.teknatool.com/upgrade-your-firmware/ periodically for firmware upgrades for your machine, which may allow new features or software improvements that could enhance the performance of the lathe. to select Firmware Upgrade Press to entering USB mode... -
Page 35: Maintenance
7. Maintenance WARNING Improper power connection may result in a risk of electrical hazard Regular maintenance is essential when considering the long-term use of the lathe. Maintenance After Each Use 1. Clean the work area and lathe. 2. Vacuum shavings and dust from the headstock, table and base. Monthly Maintenance 1. -
Page 36: Troubleshooting
8. Troubleshooting 8.1 Mechanical Issues SYMPTOM PLACE TO CHECK HOW TO RESOLVE 1. Remove any work pieces/tools attached to the headstock, inspect if there is any foreign materials or damages to the threads. Work attached to the lathe Excessive Vibration 2. - Page 37 8.2 Electrical Issue WARNING Always isolate the lathe from its power source before carrying out the following checking procedures SYMPTOM PLACE TO CHECK HOW TO RESOLVE 1. Dismount the HMI from the headstock. NO Display on screen 2. Unplug and re-plug the grey ribbon cable firmly as it 10-pin ribbon cable when the main power is on may have become loose during shipping.
-
Page 38: Teknatool Warranty
9. Teknatool Warranty NOVA Limited Warranty 4499 126 St North | Clearwater Florida 33762 teknatool.com | 727.954.3433 Our policy is one of continuous improvement. We therefore reserve the right to change specification/design without notice. This warranty is Teknatool International Ltd and Teknatool USA Inc. sole warranty whether written or verbal, whether expressed or implied by law, trade, custom, or otherwise, whether of merchantability, fitness for purpose, or otherwise, except for remedies available to customers under the Consumer Guarantees Act or other legislation. -
Page 39: Nova Nebula Lathe Breakdown
10. NOVA Nebula Lathe Breakdown NOVA Nebula Headstock Breakdown NOVA Nebula Rear Cover Plate Assembly -A (220V Market) Breakdown 128-0521-002... - Page 40 NOVA Nebula Rear Cover Plate Assembly -B (110V Market) Breakdown NOVA Nebula HMI Breakdown 128-0521-002...
- Page 41 NOVA Nebula Tailstock Breakdown NOVA Nebula Toolrest Breakdown 128-0521-002...
- Page 42 NOVA Nebula Bed and Stand Breakdown NOVA Nebula Remote Breakdown 128-0521-002...
- Page 43 NOVA Nebula Stand Beam Member Set Breakdown 128-0521-002...
-
Page 44: Nova Nebula Lathe Parts List
11. NOVA Nebula Lathe Parts List ITEM ITEM DESCRIPTION QTY. DESCRIPTION QTY. Headstock Assembly 5569002 HMI Assembly 5699005 Nebula Headstock casting 5569011 HMI Panel Body-Plastic 5698000 120mm Stator 5569038 HMI Keypad Layer 5699030 Control Board Assembly 55530 HMI Circuit Board... - Page 45 5569090 Toolrest Locking Handle 5699036 5.10 Cam Shaft Ring Mounting Screw C04012 5.11 Mounting Screws HP-16 5.12 Nova 12" Modular Tool Rest Bar 9028 5.13 Toolrest Post 1"X 5" 9025 5.14 Toolslide Camshaft End Cap 5569028 5.15 Toolslide Camshaft Grip 5569029 5.16...
-
Page 46: Nova Nebula Wiring Diagram
12. NOVA Nebula Wiring Diagram 128-0521-002... - Page 47 USA Inc. ® Due to NOVA’s continuous product improvement and development policy, specifications, features and images contained in this manual may change without notice. Teknatool is not responsible for omissions or errors herein, or for incidental damages in connection with the furnishing of this information.
