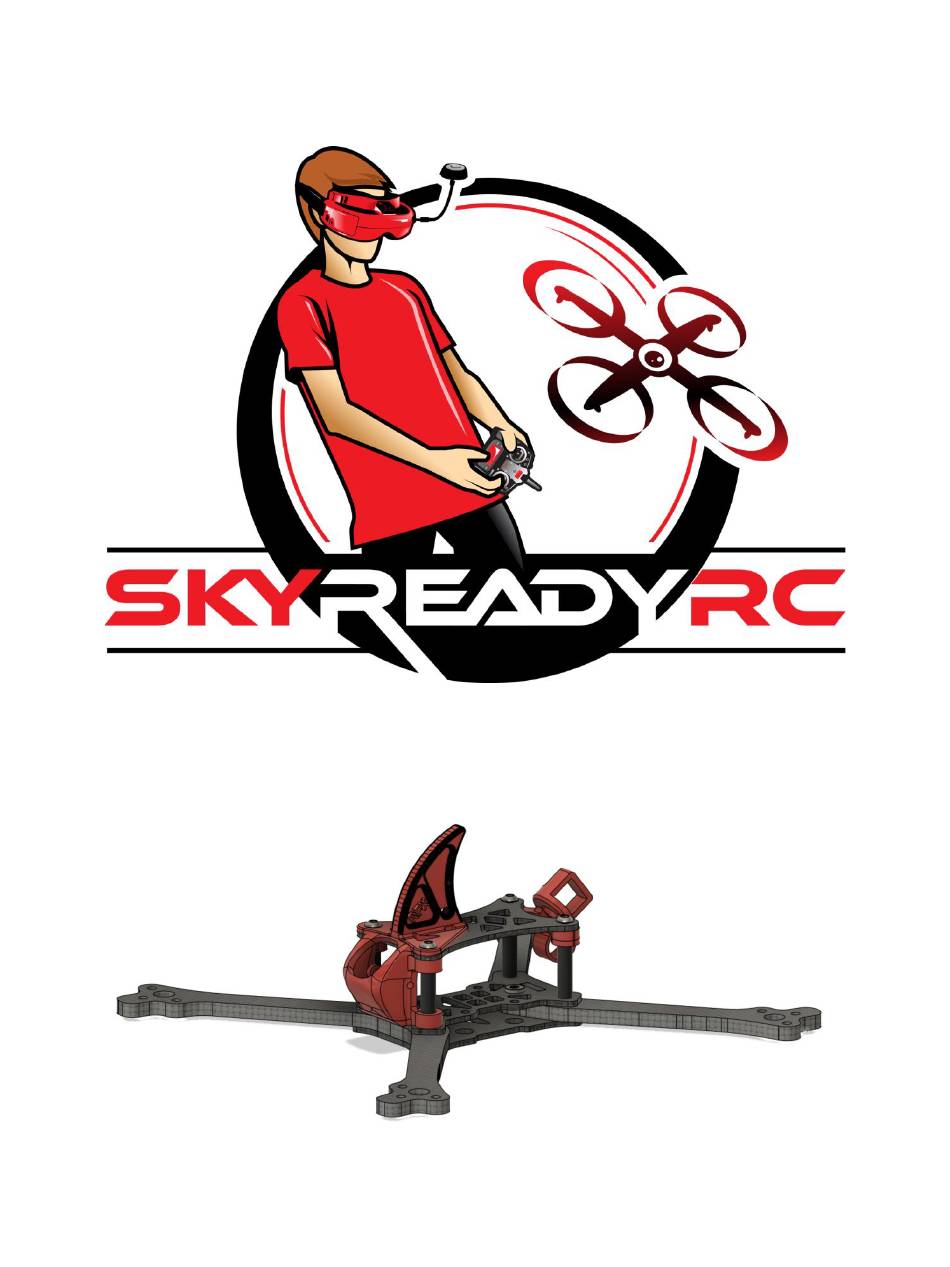

  • Page 1 Reflex Assembly Instructions...
  • Page 2 Reflex Assembly Instructions Parts List: (2) Carbon fiber CLS plates (3mm) (1) Carbon fiber top plate (2mm) (1) Carbon fiber bottom plate (2mm) (4) Carbon fiber arms (5mm) (4) 25mm aluminum standoffs (1) TPU package (camera mount, fin, 2 VTX antenna mounts, capacitor mount, tie wrap) (4) M3x16mm countersunk 12.9 grade steel screws...
  • Page 3 Reflex Assembly Instructions IMPORTANT: The triangular cutouts in the top, middle and bottom plates should all point in the same direction. These triangular cutouts point toward the FRONT of the frame.
  • Page 4 Reflex Assembly Instructions Step 1: Insert (2) carbon fiber CLS plates into the slots in the bottom plate. Step 2: Install the middle plate onto the top of the CLS plates. Make sure the triangular cutouts in the bottom plate...
  • Page 5 Reflex Assembly Instructions Step 3: Insert (2) arms, making sure to slide the arm slots onto the CLS plates. Step 4: Insert (2) M3x16mm countersunk screws up through the bottom plate, arms and mid plate.
  • Page 6 Reflex Assembly Instructions Step 5: Repeat Steps 3 and 4, using the remaining (2) arms and (2) M3x16mm countersunk screws, then screw on the (4) 25mm aluminum standoffs. It is recommended to use thread lock on the M3x16mm countersunk screws before installing the standoffs.
  • Page 7 Reflex Assembly Instructions Step 7: Install the TPU Package over the four aluminum standoffs. (The triangular cutouts in the bottom plate and middle plate point toward the FRONT of the frame, so be sure to install the TPU accordingly).
  • Page 8 Reflex Assembly Instructions Step 8: Install the top plate. Use (2) M3x10mm screws to secure the BACK of the top plate. Make sure the triangular cutout in the top plate points to the FRONT of the frame. Step 9: Use the remaining (2) M3x10mm screws to attach the TPU fin to the front standoffs. Use the tie wrap included in the TPU package to secure the back of the fin to the frame.

  • Page 9: Exploded View

    Reflex Assembly Instructions Exploded View...
