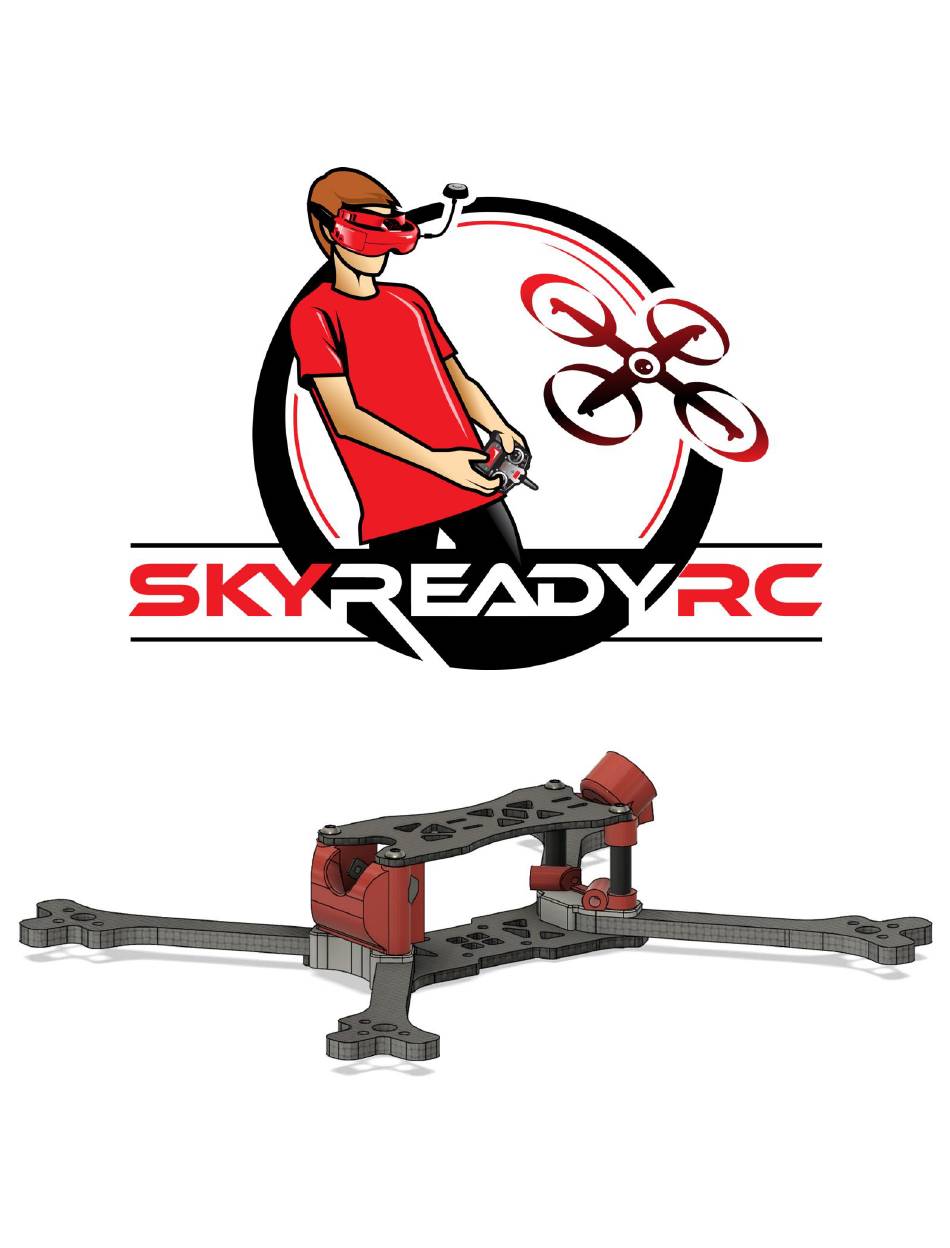

- Page 1 Cobra / Cobra Lite Build Instructions...
- Page 2 Cobra / Cobra Lite Build Instructions Parts List: (2) Aluminum CLS plates (1) Carbon fiber bottom plate (3mm) (1) Carbon fiber top plate (2mm) (4) Carbon fiber arms (5mm) (4) 25mm aluminum standoffs (1) TPU camera mount (1) TPU eccentric camera bushing (left)
- Page 3 Cobra / Cobra Lite Build Instructions Step 1: Insert two arms into an aluminum CLS plate. Make two.
- Page 4 Cobra / Cobra Lite Build Instructions Step 2: Place the bottom plate into corresponding slots in the CLS plates. The single triangular cutout in the bottom plate indicates the front of the quad.
- Page 5 Cobra / Cobra Lite Build Instructions Step 2 (Continued):...
- Page 6 Cobra / Cobra Lite Build Instructions Step 3: Install (4) 3x16mm screws into the four holes in the bottom plate. Use blue (medium) thread lock. Install (4) 25mm standoffs onto the screws.
- Page 7 Cobra / Cobra Lite Build Instructions Step 4: Press the eccentric camera bushings into the camera mount from the outside of the camera mount. The bushings should fit flush with the sides of the camera mount when installed properly. The bushings have an off-center hole, allowing the camera mount to be compatible with different length camera lenses.
- Page 8 Cobra / Cobra Lite Build Instructions Step 6: Place the top plate on the standoffs, and secure with (4) 3x10mm screws.
- Page 9 Cobra / Cobra Lite Build Instructions Step 7: After assembling the frame, feed your receiver antenna wires into the back (smaller) holes of the TPU antenna tube holder and run them out the front (larger) holes. Cut the antenna tube to the length of your exposed receiver antenna wires.
-
Page 10: Exploded View
Cobra / Cobra Lite Build Instructions Exploded View...
