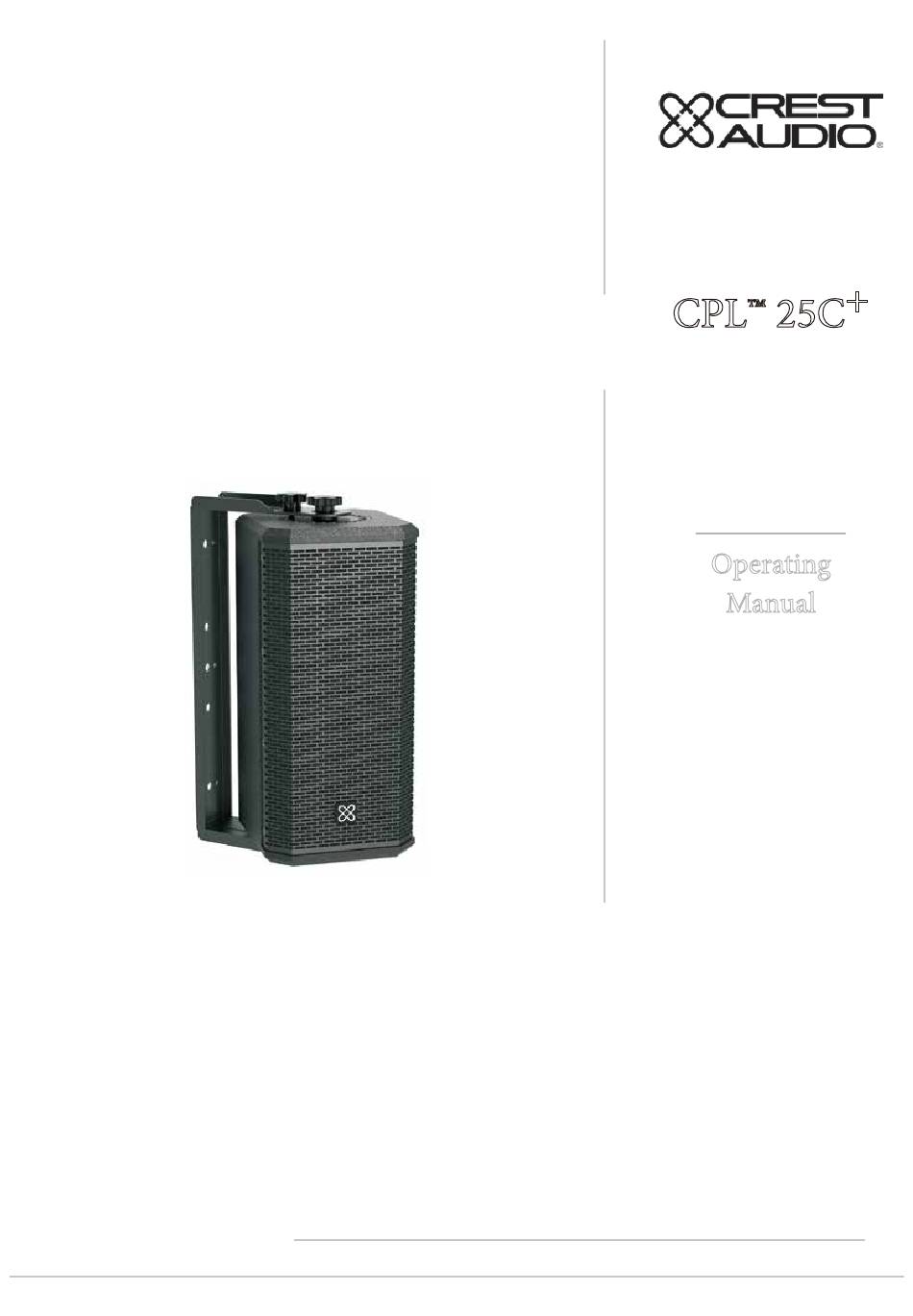

- Page 1 CPL™ 25C + Passive 2-way Coaxial Loudspeaker System Operating Manual www.crestaudio.com...
- Page 2 Model Number or Name: Date of Purchase: Serial Number: Dealer Name:...
- Page 3 DESCRIPTION Crest Audio® CPL™ 25C + The Crest Audio CPL 25C + is a compact passive two-way coaxial loudspeaker designed for music playback, public address and live performance reinforcement applications where space is at a premium. The CPL 25C + can be utilized for both permanent installations and portable live sound applications. Perfect for...
-
Page 4: Specifications
LF Driver: 2 x 5" (130 mm) Woofer - Crest Audio KP5W38 LF Driver Voice Coil: 1.5" (38 mm) HF Driver: 1 x 1" (25.4 mm) Neodymium Compression Driver - Crest Audio 5C36NP1 HF Driver Voice Coil: 1.4" (36 mm) Input Connections: 2 x 4-pin twist-lock (NL-4 style) &... -
Page 5: Installation
This Crest Audio loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified in the User's Manual and possible manual update notices. This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, provincial or national suspension ordinances. - Page 6 RIGGING & MOUNTING Installation methods for optional mounting accessories Note: The U-Bracket is a standard accessory, which has been included in the product package. Peavey Versamount 35, and Pole Mount Adapter are not included. These are optional accessories and need to be ordered separately. M8 knob-headed bolt Lockwasher Installation Method 1 - U-Bracket...
- Page 7 A. For Group B, always use both inserts with the appropriate hardware to mount a model specific Crest Audio U-Bracket. These inserts can also be used, if necessary, as safety points for a chain or rope attachment point when...
- Page 8 RIGGING & MOUNTING Specifications for insert mating hardware Group A should use an M6, grade 8.8 or better, 1.0 mm per thread, metric bolt, that does not penetrate the cabinet past the cabinet surface more than 20 mm (approximately 3/4”). When using a Peavey Versamount 35 mounting bracket and lockwasher, the length of the bolt should not exceed 30 mm (approximately 1.125”).
- Page 9 RIGGING & MOUNTING Install the adapter by threading it into the center insert of the mounting plate on the bottom of the CPL + cabinet. At some point, the adapter will no longer screw in any further. Then, find the nearest threaded hole on the adapter mounting plate that line's up with one of the 24 holes on the cabinet mounting plate (it may be necessary to back off the adapter slightly to line the holes up), and screw in one of the knob-headed bolts supplied with the adapter.
- Page 10 INPUT & LOOP THROUGH SCHEMATICS CPL + Series Input & Loop Through Schematics Input Cup X-Over & Speakers...
- Page 11 INPUT & LOOP THROUGH SCHEMATICS CPL + Series Loop rough System Schematics Speaker n # Speaker # 2 Speaker # 1 Poweramp Poweramp Poweramp Channel B Channel B Channel B Signal Changer Adapter Cable 2+ -> 1+ 2- -> 1- Speaker # 1 Speaker # 2 Speaker n #...
- Page 12 DIMENSIONS Unit: mm 50.8...
- Page 13 14.96 inches (380 mm) high by 7.01 inches (178 mm) wide by 7.40 inches (188 mm) deep weighing 20 pounds (9.1 kg). e nish shall be a paintable lightly textured black or white. e compact coaxial loudspeaker shall be the Crest Audio CPL 25C + with included U-Bracket.
- Page 14 FREQUENCY RESPONSE & IMPEDANCE Frequency Response Impedance...
- Page 15 NOTES...
- Page 16 NOTES...
- Page 18 Features and specifications subject to change without notice. Crest Audio 5022 HWY 493 N. Meridian, MS 39305 (601) 483-5365 FAX (601) 486-1278 © 2023 - Rev _P1_2023_01_23...
