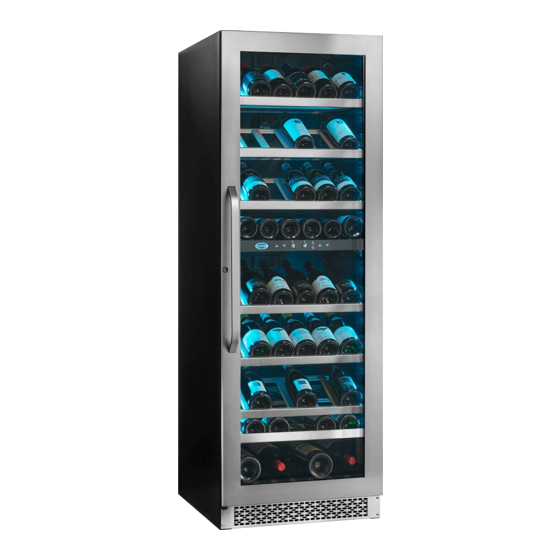

- Page 1 DV-568DSD Dual-Zone Wine Fridge User Manual www.divinwinefridges.com.au...
- Page 2 Thank you very much for choosing DIVIN wine fridge to store your precious collections! We hope you may enjoy using it. Purchase Date: *The purchase date is the date when the warranty begins. Serial Number: *The serial number is located on the data plate, which can be found on the inner wall of the wine fridge.
- Page 3 ● Make sure your power supply sources have met all the electrical standards required by laws. DO NOT use extension cords; use an exclusive and properly installed outlet instead. Further assistance from DIVIN Website-Support: https://divinwinefridges.com.au/support/ E-mail: info@divinwinefridges.com.au Tel: 0484 308 208...
-
Page 4: Table Of Contents
Table of Contents General Instructions Before Usage.......... Important Safeguards & Warnings........... Installation................DV-568DSD Smart control panel..........Temperature Adjustment............Wine Shelves & Bottle Configurations........Bottle Capacity................. Troubleshooting Guide............. Cleaning and Maintenance............Warranty and Terms.............. -
Page 5: Important Safeguards & Warnings
Important Safeguards & Warnings ● Read all of the instructions before using this appliance. ● This product is designed for commercial or general home use (indoor only) to store a wide variety of wines. If the wine fridge is used for purposes other than wine storage, we cannot provide any warranty. - Page 6 ● The wine fridge is equipped with an auto defrost system. Please do not use other methods to speed up the defrosting process. ● Before moving the wine fridge, please remove the wine stored in the fridge first to reduce the weight for safety concerns during transportation. ● The warranty applies only to the wine fridge itself and does not cover the items stored in it.
-
Page 7: Installation
Installation 173 cm 172 cm *Reserve 3cm extra distance only when the power outlet is right behind the wine fridge. Max. *The reserved built-in space does not include the projection of the handles (4.7 cm). *Power ch o rd leng t h :abo ut 150 cm. -
Page 8: Dv-568Dsd Smart Control Panel
DV-568DSD Smart control panel *Smart control panel is touch-sensitive, just touch the buttons to operate, no need to press hard. Power Button Power ON: Press for 3 seconds and the wine fridge will start to operate and ready for various settings. Power OFF: Keep pressing for 3 seconds and the wine fridge will be closed. -
Page 9: Temperature Adjustment
Temperature Adjustment - Down Arrow (5-20°C) Press once and the current setting temperature on the screen will flash, each click can reduce 1°C. Stop clicking when you reach the desired temperature. The number will blink to indicate a successful temperature setting, and the screen will show the current temperature of the wine fridge. -
Page 10: Wine Shelves & Bottle Configurations
Wine Shelves & Bottle Configurations The following is our recommendation on proper wine storage, which can also be used as a reference for other similar size bottles. Standard Bordeaux Burgundy Burgundy 750mL 750mL 750mL Barolo, Brunello di Montalcino Riesling 750mL 750mL Unit: cm Detachable Beechwood Shelves... - Page 12 Display Shelves (single layer)
- Page 13 Display Shelves (stacking) 9 Bordeaux bottles (A) in 9 small Burgundy bottles in 11 Bordeaux bottles (A) in the front row the front row (B) the front row 9 large/small Burgundy 9 large/small Burgundy 11 Bordeaux bottles (A) in bottles (B/C) in the back bottles (B/C) in the back the back row *Before pulling out the display...
-
Page 14: Bottle Capacity
Bottle Capacity Display Mode Storage Mode 1 3 0 1 6 6 bo ttl es bot t l es (Standard Bordeaux 75 0 m L ) ( Standard Bordeaux 750m L) *Before pulling out the display shelves, please take out the leftmost and rightmost bottles in the front row to avoid slipping. -
Page 15: Troubleshooting Guide
Troubleshooting Guide Possible Causes & Solutions Problems ● Check if the unit is plugged into a working power outlet. ● Try turning on the unit (refer to p. 6) after connecting to a Wine fridge does not operate working outlet. ●... - Page 16 ● In case of power outage, please do not open the door to prevent the temperature from rising due to the loss of cool air inside the wine fridge. DIVIN wine fridge is equipped with a temperature memory feature, which...
-
Page 17: Cleaning And Maintenance
Cleaning and Maintenance ● Please keep the interior and exterior of your wine fridge clean and tidy to avoid any spillage of wine in the fridge. If there’s any spillage please clean up with clean rugs as soon as possible. ● Glass Doors: We recommend using alcohol wipes, glass cleaning cloths, and also glass cleaner to wipe and clean the outer layer. -
Page 18: Warranty And Terms
Warranty & Terms The warranty of DIVIN wine fridges includes 2-year warranty for the products (except for consumables like the activated charcoal filters) and 3-year for compressor (except for solenoid valves) from purchase date. Any faulty parts will be repaired and/or replaced at no charge under warranty conditions, due to manufacturing faults, which do not extend to negligence or misuse caused by the users. - Page 19 ● Consumables: e.g. activated charcoal filters. ● Loss of any wine or other products, stored in the DIVIN wine fridges, due to compressor failure. ● Damages caused by acts of God, pest and rat Infestation, or inadequate power supply. ● Influenced by the special environment, which is high-corrosion areas, such as brimstone area, high salinity coastal zone, marsh gas, chemical corrosion or on a boat.
