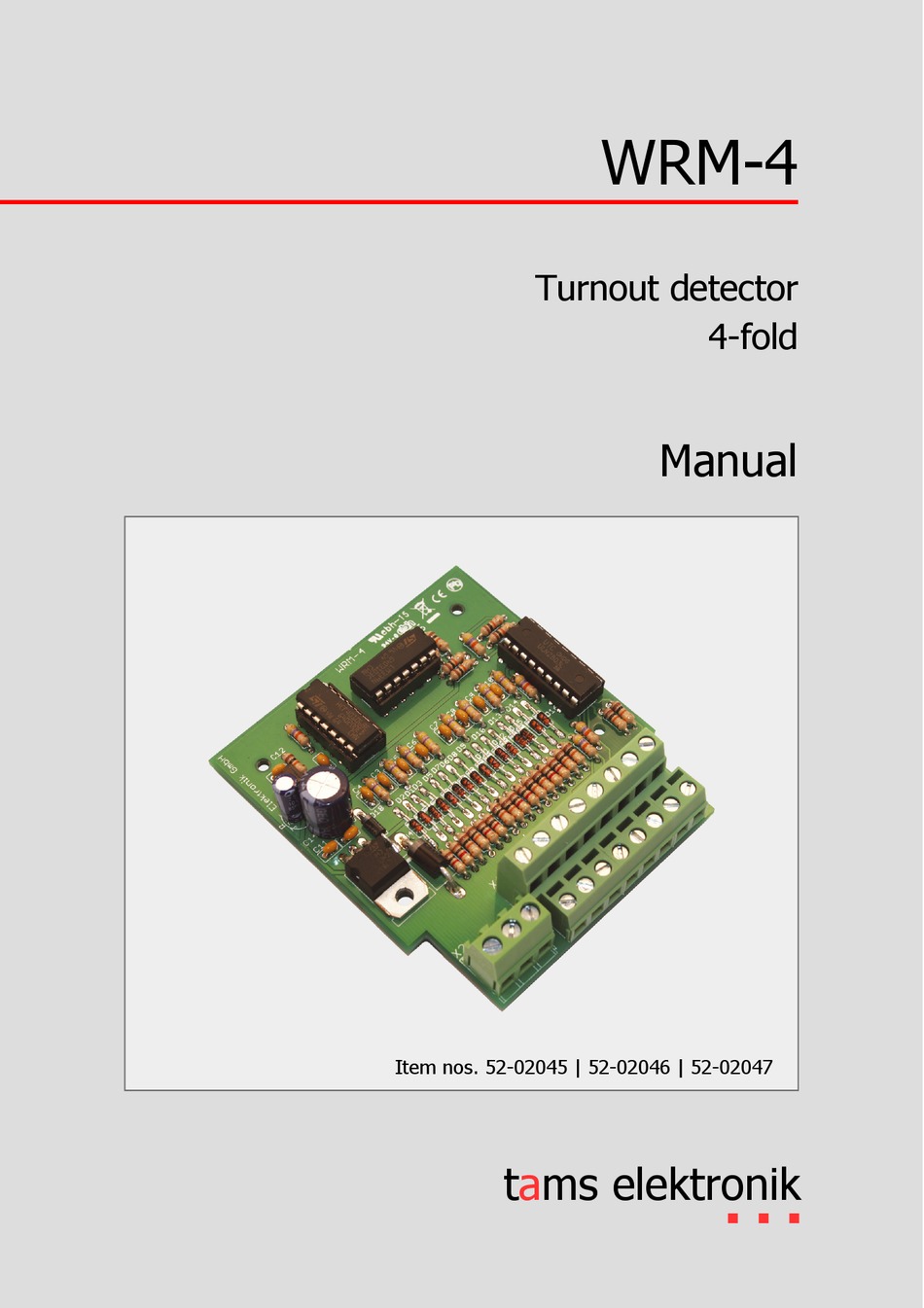

- Page 1 WRM-4 Turnout detector 4-fold Manual Item nos. 52-02045 | 52-02046 | 52-02047 tams elektronik n n n...
- Page 2 © Tams Elektronik GmbH All rights reserved, in particular the right of reproduction, distribution and translation. Copies, reproductions and alterations in any form require the written permission of Tams Elektronik GmbH. We reserve the right to make technical changes. Printing the manual The formatting is optimised for double-sided printing.
-
Page 3: Table Of Contents
3.2. Soldering properly....................8 3.3. Preparation......................9 3.4. PCB layout and parts list..................11 3.5. Assembly......................13 3.6. Performing a visual check...................14 4. Connecting the WRM-4....................15 4.1. Pin assignment....................15 4.2. Functional test....................16 4.3. Connecting the turnouts..................16 4.4. Connecting lamps or LEDs...................17 4.5. Connecting the power supply................18 4.6. -
Page 4: Getting Started
1.1. Contents of the package 1 kit WRM-4 (item no. 52-02045-01), containing the components listed in the parts list ( section 3.4.) and one PCB or 1 ready-built and tested circuit board WRM-4 (item no. 52-02046-01) or 1 turnout detector WRM-4 in housing (item no. -
Page 5: Intended Use
WRM-4 1.3. Intended use The turnout detector is intended for use in model railway layouts as specified in the instructions. Any other use is not in accordance with the intended use and will result in the loss of the warranty claim. Intended use also includes reading, understanding and following all parts of the instructions. -
Page 6: Operation Overview
(together with digital solenoid decoders). The WRM-4 detects the position of the drives of turnouts and signals with double coil drives without limit switching. As the position of the anchor in the coil is analysed, the detector also reacts if turnouts are shifted manually. -
Page 7: Assembling The Kit
WRM-4 3. Assembling the kit You can skip this section if you have purchased a ready-built module or device. 3.1. Safety instructions Mechanical hazards Cut wires can have sharp ends and can cause serious injuries. Watch out for sharp edges when you pick up the PCB. -
Page 8: Soldering Properly
WRM-4 tams elektronik 3.2. Soldering properly Use a soldering iron with temperature control, which you set to approx. 300 °C. Only use electronic solder with a flux. Never use soldering water or soldering grease when soldering electronic circuits. These contain an acid that destroys components and conductor paths. -
Page 9: Preparation
WRM-4 3.3. Preparation Put the sorted components in front of you on your workbench. The separate electronic components have the following special features you should take into account in assembling: Resistors Resistors reduce current. The value of resistors for smaller power ratings is indicated through colour rings. - Page 10 WRM-4 tams elektronik Transistors Transistors are current amplifiers which convert low signals into stronger ones. There are several types in different package forms available. The type designation is printed on the component. Transistors for a low power rating (e.g. BC types, BS types) have a package in form of a half zylinder (SOT-package).
-
Page 11: Pcb Layout And Parts List
WRM-4 3.4. PCB layout and parts list PCB layout Assembling the kit | 11... - Page 12 WRM-4 tams elektronik Parts list Carbon film resistors R3, R4, R11, R12, R19, R20, R27, R28 1 k R2, R5, R6, R9, R10, R13, R14, R17, R18, 10 k R21, R22, R25, R26, R29, R30, R33, R34 R1, R35, R36, R37, R38 47 k...
-
Page 13: Assembly
WRM-4 3.5. Assembly Proceed according to the order given in the list below. First solder the components on the solder side of the PCB and then cut the excess wires with the side cutter. Follow the instructions on soldering in section 3.2. -
Page 14: Performing A Visual Check
WRM-4 tams elektronik 3.6. Performing a visual check Perform a visual check after the assembly of the module and remove faults if necessary: Remove all loose parts, wire ends or drops of solder from the PCB. Remove all sharp wire ends. -
Page 15: Connecting The Wrm-4
LED / lamp for turnout 1 / ahead X1|13 LED / lamp for turnout 1 / branch X1|8 LED / lamp for turnout 4 / ahead X1|16 LED / lamp for turnout 4 / branch Connecting the WRM-4 | 15... -
Page 16: Functional Test
4.2. Functional test Before mounting the WRM-4 in the layout it is recommended to perform a functional test, especially when you have assembled the detector from a kit. Perform the functional test with one point and two lamps by connecting them according to the details given in the following sections and the diagram. -
Page 17: Connecting Lamps Or Leds
With LEDs you have to observe the polarity, otherwise they do not light. Connect the cathodes (-) to the outputs of the WRM-4 (A1a bis A4b) and the anodes (+) to the return conductor for the outputs (RL). With standard LEDs the longer connecting pin is the anode (+). -
Page 18: Connecting The Power Supply
4.6. Embedding in a digitally controlled layout When you want to use the WRM-4 in combination with a turnout decoder in a digital layout, make the connections according to the diagram. -
Page 19: Connecting Subordinate Circuits
WRM-4 5. Connecting subordinate circuits The WRM-4 evaluates the income signals against earth. Thus you can connect the outputs of the WRM-4 to: the inputs of subordinate electronic circuits with a current consumption of max. 250 mA;... -
Page 20: Connecting Subordinate Circuits Via A Relay
In addition you should connect a free-wheeling diode (e.g. 1N400x) in parallel to the relay in order to avoid damages to the outputs of the WRM-4. Pay attention to connect the anode of the free-wheeling diode (+) to the output of the WRM-4. -
Page 21: Checklist For Troubleshooting And Error Correction
Possible cause: This phenomenon occurs when supplying the WRM-4 with a.c. voltage. à Solder a capacitor in parallel to the relay (> 100 µF / 25 V). Also note the information in section 5.3. Checklist for troubleshooting and error correction | 21... -
Page 22: Technical Hotline
WRM-4 tams elektronik 6.1. Technical Hotline If you have any questions about the use of your turnout detector, our technical hotline will help you (telephone number and e-mail address on the last page). 6.2. Repairs You can send us a defective turnout detector for repair (address on the last page). In the event of a warranty or guarantee claim, the repair is free of charge for you. -
Page 23: Technical Data
12 – 24 Volt d.c. voltage The turnout detector should not be fed via the voltage supply for the digital system! Please use a separate transformer for the WRM-4 (or all turnout detectors in the layout) with digital layouts! Current consumption (without approx. - Page 24 WRM-4 tams elektronik Environment For use in closed rooms Ambient temperature during 0 ~ + 30 °C operation Permissible relative humidity 10 ~ 85% (non-condensing) during operation Ambient temperature during - 10 ~ + 40 °C storage Permissible relative humidity...
-
Page 25: Warranty, Eu Conformity & Weee
WRM-4 8. Warranty, EU conformity & WEEE 8.1. Guarantee bond For this product we issue voluntarily a guarantee of 2 years from the date of purchase by the first customer, but in maximum 3 years after the end of series production. The first customer is the consumer first purchasing the product from us, a dealer or another natural or juristic person reselling or mounting the product on the basis of self-employment. -
Page 26: Eu Declaration Of Conformity
WRM-4 tams elektronik 8.2. EU Declaration of Conformity This product fulfils the requirements of the following EU directives and therefore bears the CE marking. 2001/95/EU Product Safety Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) 2014/30/EU on electromagnetic compatibility (EMC Directive). - Page 27 WRM-4...
- Page 28 Further Information and Tips: http://www.tams-online.de Warranty and Service: Tams Elektronik GmbH Fuhrberger Straße 4 DE-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: modellbahn@tams-online.de...
