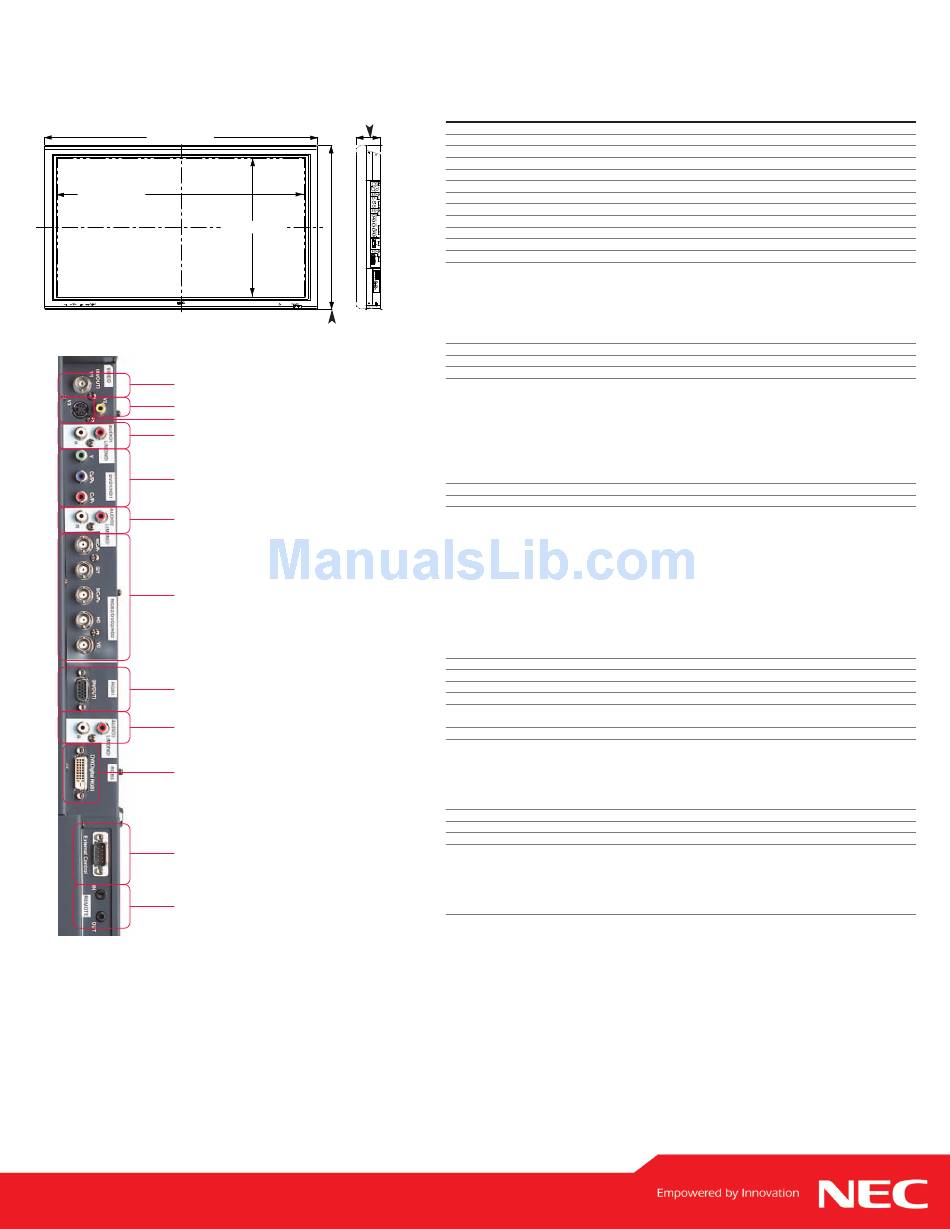

Specifications - NEC PlasmaSync 61XM2+ Brochure

With enhanced split screen
Hide thumbs


PlasmaSync 61XM2+
57.9" (1470mm)
53.2" (1351mm)
Video 1
Video 2
Video 3
Audio 1
DVD1 / HD1
Audio 2
RGB2 / DVD2 / HD2 Input
Audio 3
External Control
Remote In / Out
For more information, call (800) NEC-INFO
or visit
NEC is a registered trademark of NEC Corporation.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.
NEC Solutions (America), Inc.
Visual Systems Division
1250 Arlington Heights Rd., Suite 400
Itasca, IL 60143-1248
4.7" (119mm)
29.9" (760mm)
34.6" (880mm)


Model Number
Screen Aspect Ratio
16 to 9
Active Screen Area
53.2 in x 29.9 in, 1351 mm x 760 mm
Native Pixel Resolution
1365 x 768
Pixel Pitch
0.99mm x 0.99mm
Capsulated Color Filter
Front Filter Type
AR - Anti reflection
Color Processing
(4,096 steps) 68.7 billion colors
Viewing Angle
160 degrees
Horizontal Frequency Range
15.5 to 110.0 kHz auto, step scan
Vertical Frequency Range
50 to120 Hz auto, step scan
PC Signal Compatibility
VGA 640x480 @ 60,72,75,85,100, 120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz
WideXGA 1360 x 765 @60 Hz, 1280 x 768 @ 60Hz
Macintosh Compatibility
640x480, 832x624, 1024x768, 1152x870
Video Signal Compatibility
PAL, SECAM, 3.58/4.43 NTSC
HD Video Signal Compatibility
480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i
Input Terminals
RGB 1 (analog)
RGB 2 (analog)
RGB 3 (digital)
Video 1
Video 2
Video 3
HD Video 1
HD Video 2
Internal amplifier, 9W x 2 output power
External Control
9-pin mini D-Sub, RS232
User Controls
Direct Access
Remote Control
Option 1
Option 2
Option 3
Option 4
Plug & Play
DDC1, DDC2B (RGB3 is DDC2B only)
Power Requirements
120V 50/60 Hz
Power Consumption
540W Typical, 6.7 Amp Maximum
Standby Power
Dimensions (WxHxD)
1470 x 880 x 119 mm, 57.9 x 34.6 x 4.7 inches
without base
61.0 kg, 134.2 lbs. (without tabletop stand)
Environmental Considerations
Operating Temperature
Operating Humidity
Operating Altitude
Storage Temperature
Storage Humidity
Storage Altitude
1 Year Parts & Labor Standard
FCC Class A, UL1950, CSA950
Included Accessories
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps
Optional Accessories
Tabletop Stand
Attachable Speakers
Fixed Wall Mount
Tilt Wall Mount
Ceiling Mount
Input Terminal Cover
Diagonal Screen Size 61"
15-pin mini D-sub
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)
25-pin DVI (digital only)
Composite BNC x 1
Composite RCA x 1
S-Video 4-Pin DIN
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with
5BNC Y/Pb/Pr input,selectable)
Power on/off, input selection, volume up/down, OSM access
Power on/off, input select, volume, mute, wide, display, off-timer, OSM
control, cursor, pointer, zoom, auto, select
Picture - Contrast, brightness, sharpness, color, tint, color temperature, white
balance, picture mode, noise reduction, gamma, low tone and color tune
Audio - bass, treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position, horizontal position,
vertical height, horizontal width, fine picture, picture adjust, auto picture
OSM on/off, BNC Input, D-sub Input, RGB select, HD select, Input Skip, All Reset
Pwr. Management, Cinema Mode, Long Life Mode, Gray Level
Timer, Pwr. On mode, Control Lock, IR Remote, Loop Out, ID Number Video Wall
Advanced OSM, Language, Color System, Source Information
Sub Picture Detect, Zoom Navigation, Picture Freeze, Seamless Switching
32 - 104 degrees F (0 - 40 degrees C)
20 - 80%
0 - 9180 feet (0 - 2800m)
14 - 122 degrees F (-10 - 50 degrees C)
10 - 90%
0 to 9840 feet (0 - 3000m)
NEC 020407
