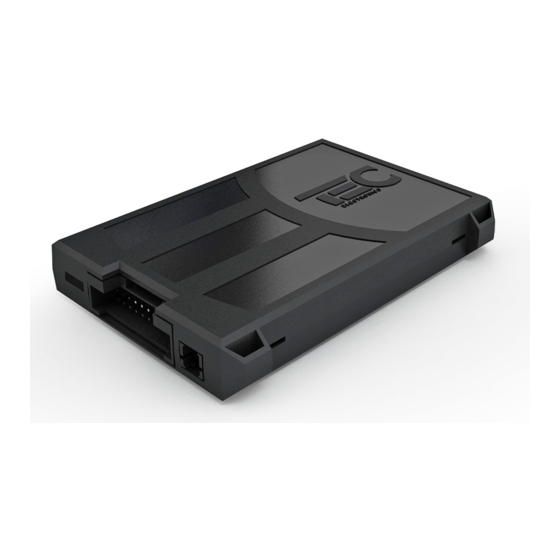

TEC Electronics FanControl-GSM Manual

Climate control module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FanControl-GSM v2
www.tecel.ru

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FanControl-GSM and is the answer not in the manual?

Questions and answers

Related Manuals for TEC Electronics FanControl-GSM

Summary of Contents for TEC Electronics FanControl-GSM

  • Page 1 FanControl-GSM v2 www.tecel.ru...
  • Page 2 FanControl‑GSM v2 Description FanControl-GSM — is a climate control module (hereinafter — module) designed to control the vehicle’s climatic system and hydronic engine heaters fitted to the vehicle at a factory as well as aftermarket heaters. There are several ways to control the module: by using the mobile app «FanControl»; by calling the SIM card number installed into the device;...
  • Page 3 FanControl‑GSM v2 Package Advantages: Fully compatible with vehicle’s electronics. Controls factroy heaters; Allows controlling aftermarket heaters such as: Webasto Thermo Top C, Evo 5, Eberspächer D5WS via a special databus W-bas; Allows overveiwing vehicle’s geolocaton; Allows activating the vehicle’s ventilation system in the original operating mode.; Contol of an aftermarket heater in the auxiliary heating mode;...

  • Page 4: Mobile Phone

    FanControl‑GSM v2 Table 1. List of supported vehicles A3 (2013--), A5, A6 (2011--), A7, A8 (2010--), Q3, Q5, Q7 (2011-2015), Q7 (2016--), Audi TT (2015--) 1 (F20), 3 (E90), 3 (F30), 5 (F10), 6 (Е63), 6 (Е64), 6 (F13), 7 (F01), 7 (F02), X1 (E84), X3 (F25), X4 (F26), X5 (E70), X5 (F15), X6 (E71), X6 (F16), X1 (F48), 7 (G11, G12), 5 (G30) Discovery 4, Evoque (2011--), Freelander 2 (2013--), Range Rover Sport (2014--), Land Rover...
  • Page 5 FanControl‑GSM v2 Connection Outputs are described in table 2. Connector enumeration can be seen in figure 2. Figure 2. Connector enumeration, view from the wire harness side Table 2. System’s outputs № Color Type Note Brown CAN 1 Data bus CAN 1-L –...
  • Page 6 All these adjustments are performed in the TECprog software (available for download at www.tecel.ru/en/). Likewise, the module can be adjusted by using the built-in programming/reset button (hereinafter-PB). Green LED (Programming mode) Micro-USB Red LED (GSM) Blue LED (GPRS) Figure 3. FanControl-GSM...

  • Page 7: Vehicle Identification

    FanControl‑GSM v2 Red and blue LED indication can be found in table 3. Table 3. GSM LED and GPRS LED indication Red LED (GSM) Blue LED (GPRS) GSM-network found GPRS connected Constantly flashes Looking for GSM-network Connecting to GPRS GSM in sleep mode –...

  • Page 8: System Control

    FanControl‑GSM v2 System control You may control the system by means shown in figure 4. With smartphone application Via smart voice menu Via SMS Via factory remote control FanControl for iOS and Android Setup by timer Setup by calendar Figure 4. Means to control the system System control: 1.
  • Page 9 FanControl‑GSM v2 Table 4. List of SMS-commands List of SMS commands Code Parameter Commands to control launches Turn on heater/Extend heater runtime – Turn off heater – Turn on /extend runtime of ventillation system – Turn off ventillation system – Requests Receive account balance –...
  • Page 10 FanControl‑GSM v2 Menu Factory Menu Note code default Ability to customize an operating mode of the 1 — enabled; 2 — disabled climate control system 1 — Simultaneousely with the engine heater 2 — Turn on with a delay after the engine heater is started Climatic system turn on 3 —...

  • Page 11: Programming Sequence

    FanControl‑GSM v2 Programming sequence Select a required option and press the PB the number of times corresponding to the «Menu code» in the Table 5. The green LED will inform about the current option value. To change the option value, press the PB the number of times required to advance from the current value to a desired one.

  • Page 12: Voice Menu Structure

    FanControl‑GSM v2 Voice menu structure Online data unit • Information about heater state • Information about temperature state • Information about fuel level and battery state Main menu Help Quick access commands System information Control commands System setup Quick access commands Vehicles with engine heater and not equipped with GPS/GLONASS-270, aux ventilation system Turn on/Turn off the heater Request account balance...
  • Page 13 FanControl‑GSM v2 System information Over speeding events filter All events List of turned off functions Task manager contents Control commands Help Launches Help Turn on or extend heater run time Turn off the heater Turn on or extend ventillation system run time Turn off the ventillation system Requests Account balance...
  • Page 14 FanControl‑GSM v2 System setup Weekly by calendar Once by timer Delete task COntents of the task manager Set up automatic launches and additional channels Set up heater parameters Help Conditions to stop the heater Heater runtime Save current climate system parameters Set up ventillation system parameters Help Ventillation system runtime...
  • Page 15 FanControl‑GSM v2 System setup Permissions of the first user Permissions of the second user Permissions of the third user Guest access = Settings access permissions Notification rules User 1 User 2 User 3 Below is an example for ”User 1“ Help Listen to list of notifications Setup notifications...
