Speedaire 10D235 Operating Instructions & Parts Manual

Speedaire
Straight Die Grinder
Speedaire angle die grinder is designed for cleaning tire molding,
porting and general high-speed polishing and grinding in confined areas.
Includes:
1 - Die Grinder
2 - Spanner Wrenches

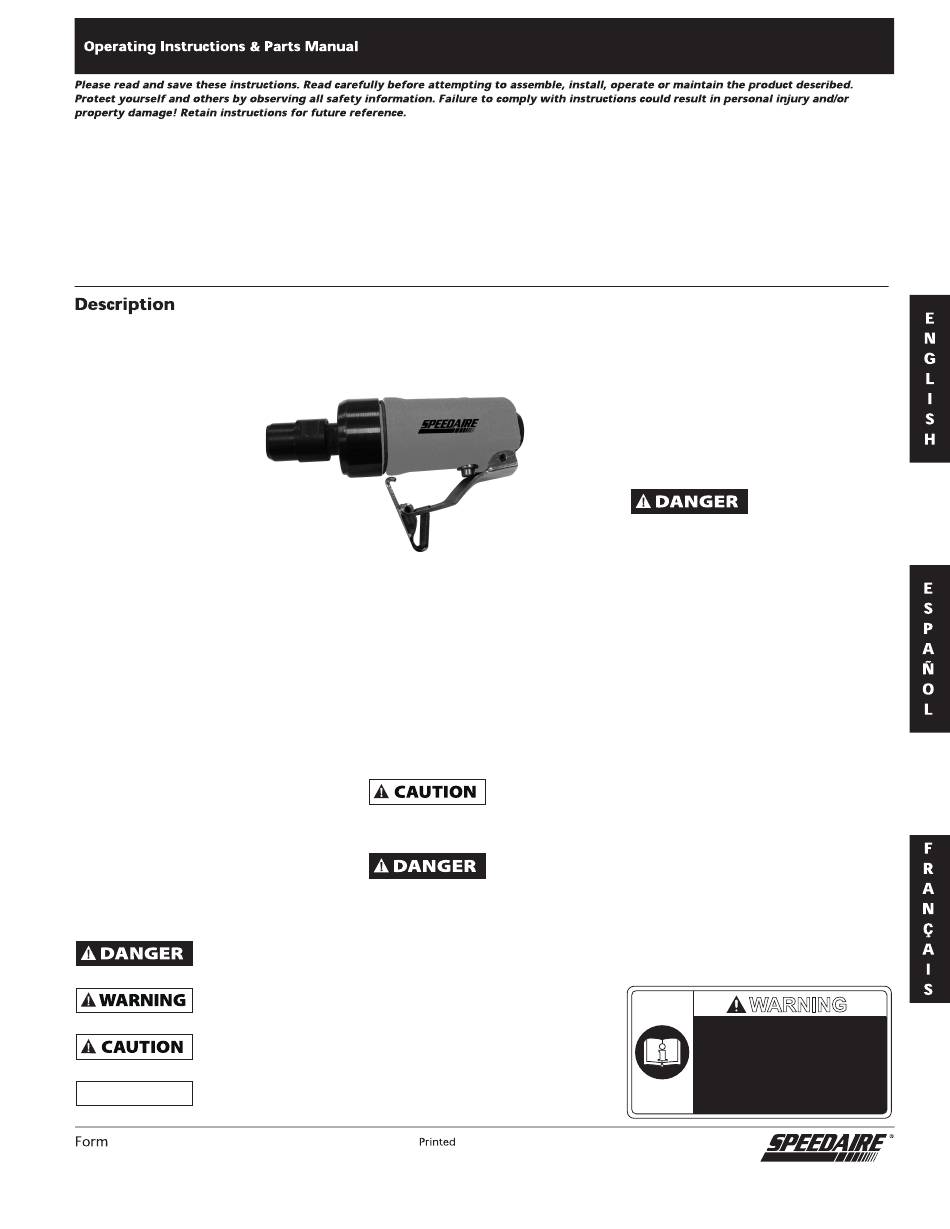

Figure 1
Unpacking
When unpacking the unit, carefully
look for any damage that may have
occurred during transit. Check for
loose, missing or damaged parts.
Specifications
Free Speed ...........................25,000 RPM
Collect size .........................................1/4"
Exhaust .......................................... Rear
Length .............................................. 4.92"
Weight ....................................... 0.75 LBS
Average air consumption ............1.83CFM
Hose Size .......................................... 3/8"
Air inlet ............................................... 1/4"
Required pressure .......................... 90PSI
Safety Guidelines
This manual contains information that is
very important to know and understand.
This information is provided for SAFETY
and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following symbols.
Danger indicates an imminently
hazardous situation which, if not
avoided, WILL result in death or serious injury.
Warning indicates a potentially
hazardous situation which, if
not avoided, COULD result in death or serious injury.
Caution indicates a potentially
hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
NOTICE Notice indicates important
information, that if not followed,
may cause damage to equipment.
5S6841
1/4" Mini
®
General Safety Information
1. For Additional Safety
information Consult:
Your employer, union, and/or trade
association.
US Department of Labor (OSHA);
www.osha gov.
" Safety Code For Portable Air
Tools" (B186.1) available from:
www.ansi.org.
Entanglement Hazards
2.
Keep away from rotating spindle
and accessory.
Do not wear jewelry or
loose clothing.
Scalping can occur if hair is not kept
away from tool and accessories.
Workplace Hazards
3.
Slip/Trip/Fall is a major
cause of serious injury
or death. Beware of excess hose left on the
walking or work surface.
Maintain a balanced body position
and secure footing.
Repetitive work motions, awkward
positions and exposure to vibration
can be harmful to hands and arms.
If numbness, tingling, pain or
whitening of the skin occurs, stop
Avoid inhaling dust or handling
debris from the work process which
can be harmful to your health. Use
dust extraction and wear
respiratory protective equipment
when working with materials which
in Taiwan
04634
10D235
produce airborne particles.
This tool is not intended for use in
explosive atmospheres and is not
insulated for contact with electric
power sources.
Potentially explosive atmospheres
can be caused by dust and fumes
resulting from sanding or grinding.
Use dust extraction or suppression
system which are suitable for the
material being processed.
Some dust created by power
sanding, sawing, grinding,
drilling and other construction activities contains
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Some examples of these
chemicals are:
- Lead from lead based paints
- Crystalline silica bricks and
cement and other masonry
products
- And Arsenic and chromium
from chemically-treated rubber
Your risk from these exposures
varies, depending on how often
you perform this type of work.
To reduce your exposure to these
chemicals:work in a well ventilated
area, and work with approved safety
equipment, such as dust masks that
are specially designed to filter out
microscopic particles.
For professional use only.
Installation
Designed to operate on 90 PSI, lower
pressure (below 90 PSI) will reduce
performance of the tool while higher
air pressure (over 90 PSI) raises the
of the tool beyond its rated capacity
and could cause serious damage to
tool and user.
WARNING
To reduce risk of injury, everyone
using, installing, repairing,
maintaining, changing
accessories on, or working near
this tool must read
understand these instructions
before performing any such task.
STC100
03/11
#768
and
