Summary of Contents for CHCNAV LT60H
- Page 1 ShangHai HuaCe Navigation Technology Ltd. 599 Gaojing Road,Building D, Shanghai, 201702, China LT60H GNSS Data Controller User Guide Revision 1.0 19/08/2021 Shanghai Huace Navigation Technology Ltd.
-
Page 2: Introduction
Experience requirements In order to be able to use LT60H better, CHCNAV recommends to read this user guide carefully before using this product. If you are not familiar with the LT60H principle, please contact support@chcnav.com... -
Page 3: Table Of Contents
Table of Contents Introduction ........................2 Experience requirements ....................2 Disclaimer ........................2 Your suggestions ......................2 Table of Contents ......................3 1. Introduction ....................... 4 1.1 Introduction ..................... 4 1.3 Adapter Notes ....................5 2 Installation Guide ......................5 2.1 Appearance ...................... -
Page 4: Introduction

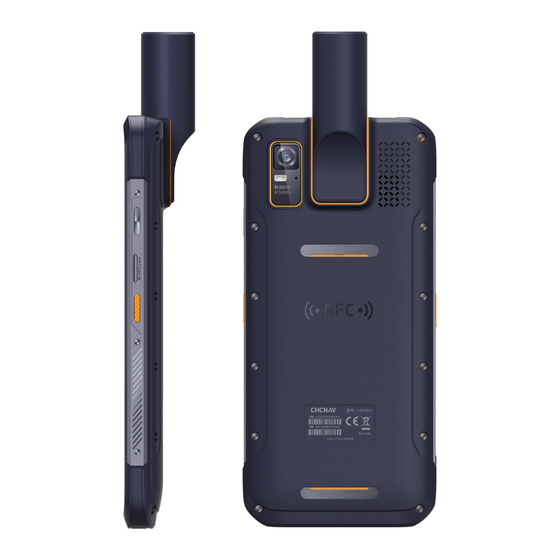

1. Introduction 1.1 Introduction CHCNAV LT60H is a high-performance intelligent handheld terminal developed by Shanghai Huace Navigation Technology LTD. The LT60H incorporates powerful navigation features with improved sensitivity, helping to achieve more accurate and faster location services. Powered by Android 12.0 OS with 2.0GHz quad-core processor, it has a long battery life. -
Page 5: Adapter Notes
1.3 Adapter Notes Products are shipped without adapters, if consumers use power adapters to supply power, they should purchase power adapters that meet the requirements of the corresponding safety standards or power adapters that have obtained CCC certification 2 Installation Guide 2.1 Appearance... -
Page 6: Install Micro Sd, Sim Card
The locations of the card slots are as follows. 2.3 Battery charging Charge the battery via the USB port using the original adapter, do not use other brand adapters to charge the device. 2.4 Button and function area display The LT60H device is divided into 5 side button... -
Page 8: Telephone Function
3 Telephone function 3.1 Make a phone call Click Tap the number keys to enter the telephone number. to dial. to end the call. -
Page 9: Address Book
3.2 Contacts Click ‘Contacts’ to open the contacts list. Click to add the new contact. -
Page 10: Sms And Mms
3.3 SMS and MMS Click to open the message list. Click to type text message to input the content. Click to add photos, videos. -
Page 11: Multimedia
4 Multimedia 4.1 Camera You can turn on your camera and capture every moving moment at any time. Photographic interface. -
Page 12: Gallery
1. Click to switch the photo mode. 2. Click to switch the flash mode. 3. Click to check photos or videos. 4. Click to take a photo. 5. Click Video to switch to video, click start recording. 4.2 Gallery Users can view photos and videos through the gallery. View pictures and video 1. -
Page 13: Music
1. In the pull-up menu, click 2. Select the folder of pictures you want to view. 3. Select a picture, click , and you can finish sharing the picture and video. 4.3 Music The controller has a built-in music player, so you can play your favorite songs whenever you want. -
Page 14: Handbook Dead Status
If you accidentally enter Recovery Mode, you select Recovery Mode to reboot, as shown below. Just press and hold the power button for 11 seconds to force a reboot. 5.2 Hang up If you get stuck and jammed during system use and cannot perform touch screen operations, you can restart by long pressing the power button for 11 seconds. -
Page 15: Product Specifications
Product Specifications Equipment parameters Size 224mm*80mm*15.4mm Weight 340g Display screen 5.45", HD+ 1440 x 720 pixel resolution Keypads Power，Numeric Keypad Battery Rechargeable Li-Polymer Battery 6240mAh Pistol bat. (rechargeable li-ion polymer, 3.7V, 5200 mAh) Storage Expansion Micro-SD/TF (supports up to 128GB) Expansion Card Slot 1 Nano SIM card slot Sound frequency... - Page 16 Storage temperature -55℃~+85℃ Ambient humidity 5% RH - 95% RH (no condensation) Drop height Drop height 1.5 m, 6 sides, 4 corners, 2 times each side, two cycles. Platen Rolling 1000 consecutive times 0.5m, stable operation even after 6 face contact surface rolls, meeting IEC rolling specifications.
-
Page 17: Equipment Remarks
Equipment Remarks Restrictions. The European version of the device is limited to indoor use in European communities using frequencies from 5150MHz-5350MHz to reduce the potential for interference. -
Page 18: Affirm
Declaration Equipment declaration: Ltd. hereby affirms that the radio equipment model LT60H complies with the Directive 2014/53/EU, and the full text of the EU conformity declaration is available on the official website: https://www.chcnav.com/. - Page 19 1) FCC 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2）FCC 15.21 Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.
- Page 20 Specific Absorption Rate (SAR) information: This Smart Phone meets the government's requirements for exposure to radio waves. The guide lines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.
