A2C-LTEM
INSTALLATION GUIDE
Installation Guide
Cellular Communication Module
for Hunter ACC2 Controllers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A2C-LTEM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hunter A2C-LTEM

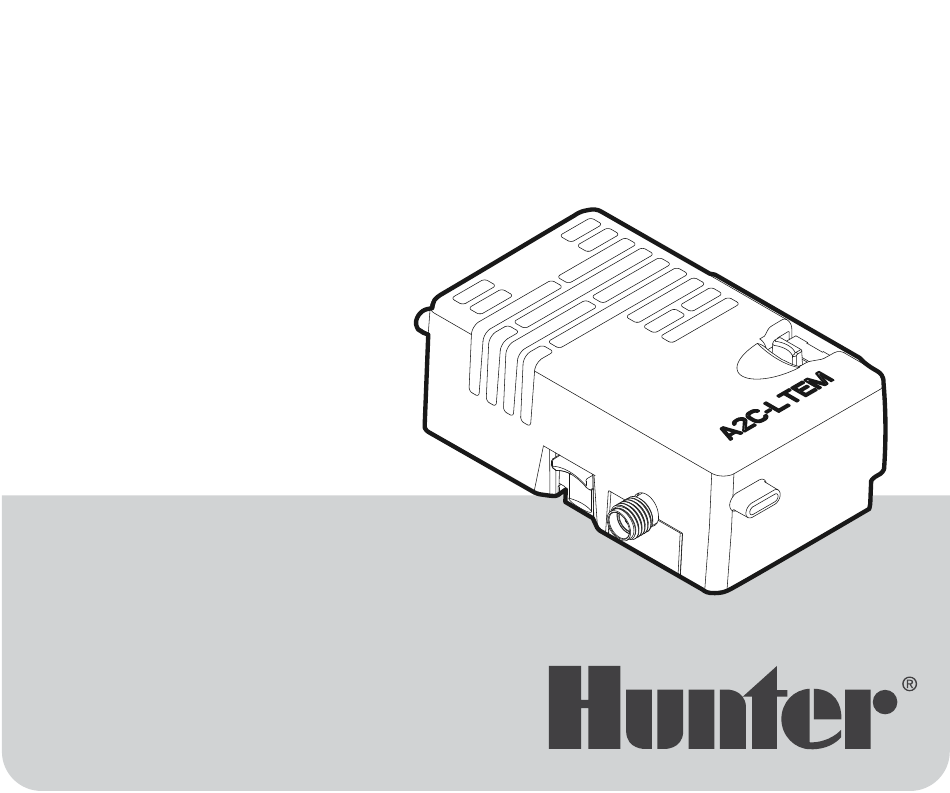

  • Page 1 A2C-LTEM INSTALLATION GUIDE Installation Guide Cellular Communication Module for Hunter ACC2 Controllers...
  • Page 2: Table Of Contents

    Preparation Installation Module Installation SIM Card Replacement Antenna Installation Configuration and Connection Software Setup Controller Verification Troubleshooting Compliance and Approvals Need more helpful information on your product? Find tips on installation, controller programming, and more. SCAN for help hunter.help/centralus hunter.help/centralus...
  • Page 3: Preparation

    Each module Centralus™ account is required to includes a preregistered Nano SIM card for use complete final controller configuration in Hunter controllers only. The card will not in the software application. Visit work in other devices. centralus.hunterindustries.com...
  • Page 4: Installation

    The module includes a tool for Nano SIM card removal or installation. This tool is normally Module Installation used only when changing from the Hunter- Remove the dust cover, or existing module, supplied SIM card to a local SIM card.
  • Page 5: Antenna Installation

    Do not drill Mount the bracket as high as possible on the the enclosure directly. wall with mounting hardware appropriate for These installations require a Hunter model the mounting surface. ANTEXTKIT wall bracket for completion. Built on Innovation...
  • Page 6 1. Route the cable through the predrilled hole and the antenna nut. Then tighten the nut on the antenna securely. 2. Apply RTV sealant around the hole, filling the gap between the enclosure hole and the mounting threads. hunter.help/centralus...
  • Page 7 PEDLIDANTBRKT 4. Route the cable down the hole to the side of the facepack frame. Connect it to the connector on the A2C-LTEM Module. Do not allow any metal portion of the antenna cable to touch metal or earth ground with the power on.
  • Page 8: Configuration And Connection

    Zipitwireless.com will be preselected for the APN setting. This option will work for North American and most EU customers who plan to use the Hunter SIM card. Customers in other international markets must purchase a Connection status icon compatible local plan and SIM card.
  • Page 9 The A2C-LTEM Module uses Nano SIM cards, so be certain to obtain the correctly sized SIM card. Some If you plan to use the available Hunter/Zipit cards are perforated to fit different sizes;...
  • Page 10 Press the Symbols soft key to find periods, slashes, and other punctuation marks as needed. Auto Detect: This will allow the A2C-LTEM Module to find the correct band on the SIM card. International users should always select this first.
  • Page 11: Software Setup

    SOFTWARE SETUP SCAN for help hunter.help/centralussetup Once the A2C-LTEM Cellular Communication Module is installed in an ACC2 Controller and powered on, it is ready for connection to the internet. To complete the setup, you must activate a cellular data subscription and add the controller to the Centralus Platform.
  • Page 12: Troubleshooting

    • Reorient or relocate the receiving antenna.
  • Page 13 Economic Development Canada’s licence-exempt RSS(s). Changes or modifications not expressly approved by Operation is subject to the following two conditions: Hunter Industries could void the user’s authority to • This device may not cause interference, and operate this device. If necessary, consult a representative of Hunter Industries Inc.
  • Page 14 Compliance and Approvals Certificate of Conformity to European Directives Hunter Industries hereby declares that the A2C-LTEM device is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://subsite.hunterindustries.com/...
  • Page 15 Notes Built on Innovation ®...
  • Page 16 Hunter family of customers for years to come. Gene Smith, President, Landscape Irrigation and Outdoor Lighting HUNTER INDUSTRIES | Built on Innovation®...
