Smartwares CS72SEC - 4.3 inch TFT Colour Camera System Manual

SPECIFICATIONS

With the CS72SEC camera system you can monitor 2 cameras to help you feel safe and keep an eye out on your surroundings. The wired cameras will give you a secure image and with the one way intercom you can also hear what is going on.

CONTENT OF THE PACKAGING

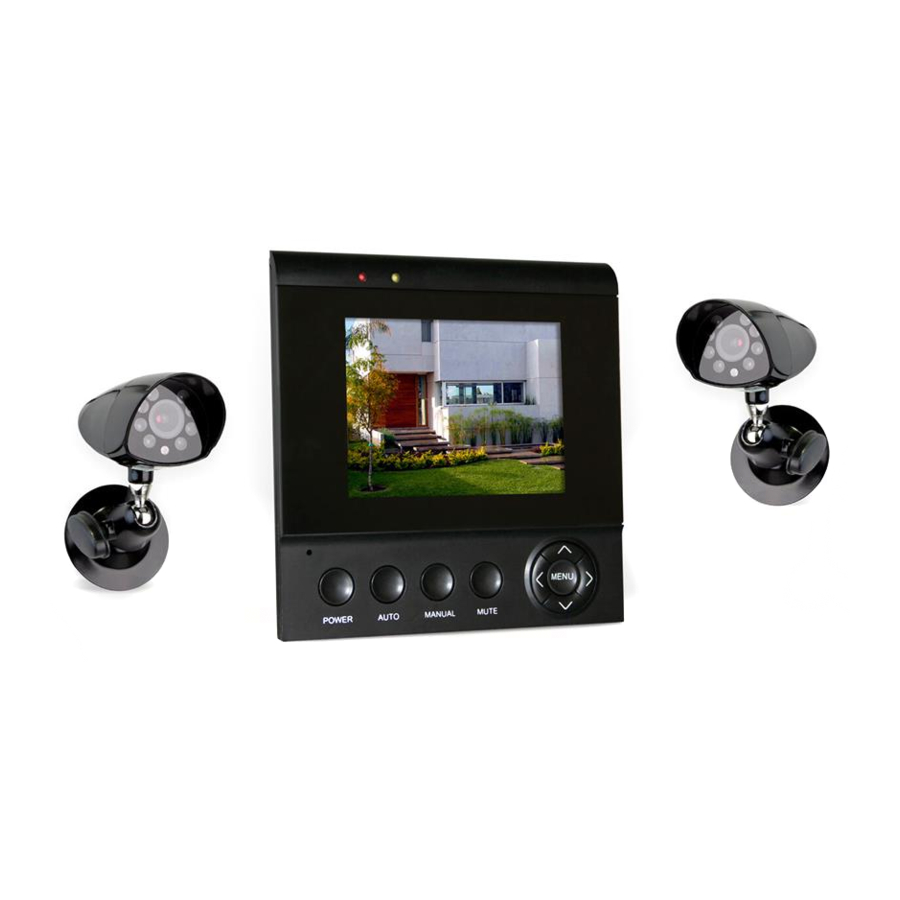

1. LCD monitor
2. Power adapter
3. 2x camera
4. 2x extension cable
5. AV cable

INSTALLATION

• Plug the power adapter (1b) in an power outlet and then connect it to the monitor (1a) (2)


• The LED is turned on to red when the monitor has power, and to blue when the monitor is working (3)

• Connect both cameras (1c) to the extension cables ((1d) (4) and then plug the cables into sockets on the backside of the monitor

• Before mounting the cameras on desired positions, check for correct working and make sure you have a good image

USE

• Press the POWER button to turn on and off the monitor (5a)
• With the AUTO button the images of the 2 cameras are switched continuously (5b)
• The MANUAL button can be used to switch between the cameras images by hand (5c)
• Press the MUTE button to mute the sound of the intercom (5d)

SETTINGS

• Press the MENU button to open the monitors menu
• Use the UP and DOWN arrows to choose between Brightness, Contrast, Saturation and Volume
• Use the LEFT and RIGHT arrows to adjust the desired setting

TIPS

• To connect to your video recorder or other monitor or TV, use the AV cable (1e)
