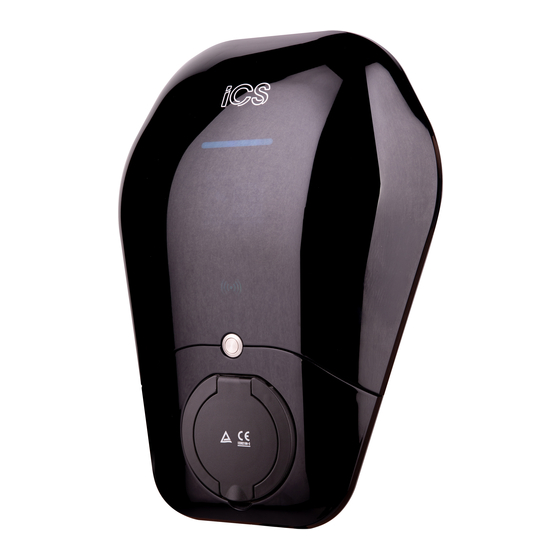

ICS ICSW7C Instructions Manual

Hide thumbs

IMPORTANT !

READ THIS ENTIRE DOCUMENT BEFORE INSTALLING

OR USING THE CHARGER. FAILURE TO FOLLOW ANY

OF THE INSTRUCTIONS AND WARNINGS IN THIS

DOCUMENT CAN RESULT IN FIRE, ELECTRICAL

SHOCK, SERIOUS INJURY OR DEATH.

THE CHARGER MUST BE INSTALLED BY A QUALIFIED

ELECTRICIAN.

THE ENTIRE INSTALLATION MUST COMPLY WITH

THE LATEST BS 7671 REGULATIONS.

CONTENTS

SPECIFICATIONS....................................................................1

FEATURES.................................................................................2-4

SAFETY......................................................................................5-6

INSTALLATION........................................................................8-22

Step 1: Check the box contents..............................................8

Step 2: Wall mounting and wiring.........................................9-10

Step 3: Install the charger......................................................11-12

Step 4: Verify the installation................................................12

Step 5: Quick Setup, Server...................................................13

Step 6: Quick Setup, Network...............................................14

Step 7: Further Conﬁguration...............................................15-22

INFORMATION.......................................................................23-25

TROUBLESHOOTING............................................................26

ADDITIONAL INFORMATION.............................................27

NOTES.......................................................................................28

Table of Contents

Need help?

Do you have a question about the ICSW7C and is the answer not in the manual?

Questions and answers

Dave Ingram

April 24, 2025

if we get a new internet provider what is the procedure for conecting it ?

Summary of Contents for ICS ICSW7C

Page 1: Table Of Contents
CONTENTS SPECIFICATIONS…………………………………………………………..1 FEATURES……………………………………………………………………...2-4 SAFETY…………………………………………………………………………..5-6 INSTALLATION……………………………………………………………...8-22 IMPORTANT ! Step 1: Check the box contents………………………………….…...8 READ THIS ENTIRE DOCUMENT BEFORE INSTALLING Step 2: Wall mounting and wiring……………………………….….9-10 OR USING THE CHARGER. FAILURE TO FOLLOW ANY OF THE INSTRUCTIONS AND WARNINGS IN THIS Step 3: Install the charger…………………………………….…...…..11-12 DOCUMENT CAN RESULT IN FIRE, ELECTRICAL Step 4: Verify the installation……………………………….………..12...
Page 2: Specifications
However, because with wiring regulations BS7671:2018 including amendment 1:2020. continuous improvement is a goal at iCS, we reserve the right to make product modiﬁcations at any time. If installed on a TN-C-S (PME) system, a dedicated earth rod to the charge point may not be required, as our hardware meets the requirements of the revised regulation 722.411.4.1 for use of an open...
Page 3: Installation
PRODUCT OVERVIEW NOTES BEFORE INSTALLATION Dependent upon the type of cable used and if mechanical protection is present the charger may require to be further protected by an external Residual Current Device (RCD) to be installed in the upstream circuit which complies with the following: Rated residual operating current not exceeding 30mA, ·...
Page 4 Do not attempt to open, disassemble, repair, tamper with, or modify the Do not operate the charger in temperatures outside its operating range charger. The charger is not user serviceable. Contact iCS or authorized of -30°C to +50°C. service provider for any repairs.
Page 5: Step 1-Check The Box Contents
OVERVIEW OF STEPS STEP 1—CHECK THE BOX CONTENTS iCS have developed our chargers to be easy to install and require Check the box contents, if any components are damaged or minimum setup on site. This instruction manual will guide you missing please contact iCS.
Page 6 STEP 2—WALL MOUNTING & WIRING Notes —Electrical connection 2.1. Remove the backplate from the charger by unscrewing the security screw and sliding the charger upwards from the There are four possible connection variants, depending on whether three back plate. Once removed, mount the backplate to the wall phase is used and whether a TN or IT network is used, this is shown on using the ﬁxings provided.
Page 7: Step 3-Install The Charger
STEP 3—INSTALL THE CHARGER Remove the bottom cover by pressing the button highlighted in red 3.1. Once the wiring on the backplate has been completed, slot in Step 3.2, lift the bottom section of the cover towards you. the charger onto the backplate ensuring that the stainless steel backplate is ﬂush with the plastic casing of the Once removed you will see a SIM card slot on the right hand side of charger.
Page 8: Step 5: Quick Setup, Server
Wi-Fi. You will see the charger produces it’s own Wi-Fi network Ethernet Setup: (ICS-2.4GHz-*******) connect to this network using the default password which is “ics654321”. This information can be found When an ethernet cable is plugged into the charger it will use on the sticker on the side of the unit.
Page 9: Step 7: Further Configuration
Ofﬂine If smart functionality is not required then turn on the Ofﬂine STEP 7— FURTHER CONFIGURATION mode by selecting ‘Ofﬂine’ from the drop down, If smart features are required, ensure that this mode is left as ‘Online’ Basic Pre-set Server this is where you can select which server you would like The Basic tab controls the server connections of the charger.
Page 10 4G this will be pre populated upon selecting a 4G pre-set server using a SIM card provided by iCS. If using a third party SIM card you will need to get the APN details from the provider and use dial code *99# VPN this should be set to disabled unless under instruction from the iCS Technical team.
Page 11 Auto Upload FTP URL this should be blank unless advised by iCS. Software Time Source this should be set to NTP + Heartbeat unless advised. The Software tab controls various options within the charger. Time Zone change the time zone to match where the charger is in- stalled.
Page 12 Speed the speed of the fade/ﬂash (0-4) Stop Current (A) this should remain 0 unless advised by iCS. Colour the colour of This is where you can control the screen of the charger.
Page 13 LCD SCREEN EXPLANATIONS Start charging via RFID or QR Connect the charging plug Network upgrade mode Micro SD upgrade mode Suspended by EV Factory Reset Charging in progress Software update error Suspended by EVSE Remove the charging plug Invalid RFID card Service not available Automatic upgrade mode Software downloading...
Page 14: Troubleshooting
Make sure the AC Power input is connected correctly, Turn off the charger then back on using the circuit breaker, If the problem persists, contact iCS for technical support. Issue: The status light does not ﬂash when the charger is connected to the EV.
Page 15: Notes
FURTHER INFORMATION AND HELP NOTES If you require further information or technical assistance please ……………………………………………………………………………………………………………… email info@intelligentchargingsystems.co.uk and we will be happy to ……………………………………………………………………………………………………………… help answer any questions you may have. ……………………………………………………………………………………………………………… We also have a YouTube channel which ……………………………………………………………………………………………………………… has plenty of information which will guide you through the setup process as ………………………………………………………………………………………………………………...
