FEB 9325 Quick Start Manual

Smart wi-fi double actuator

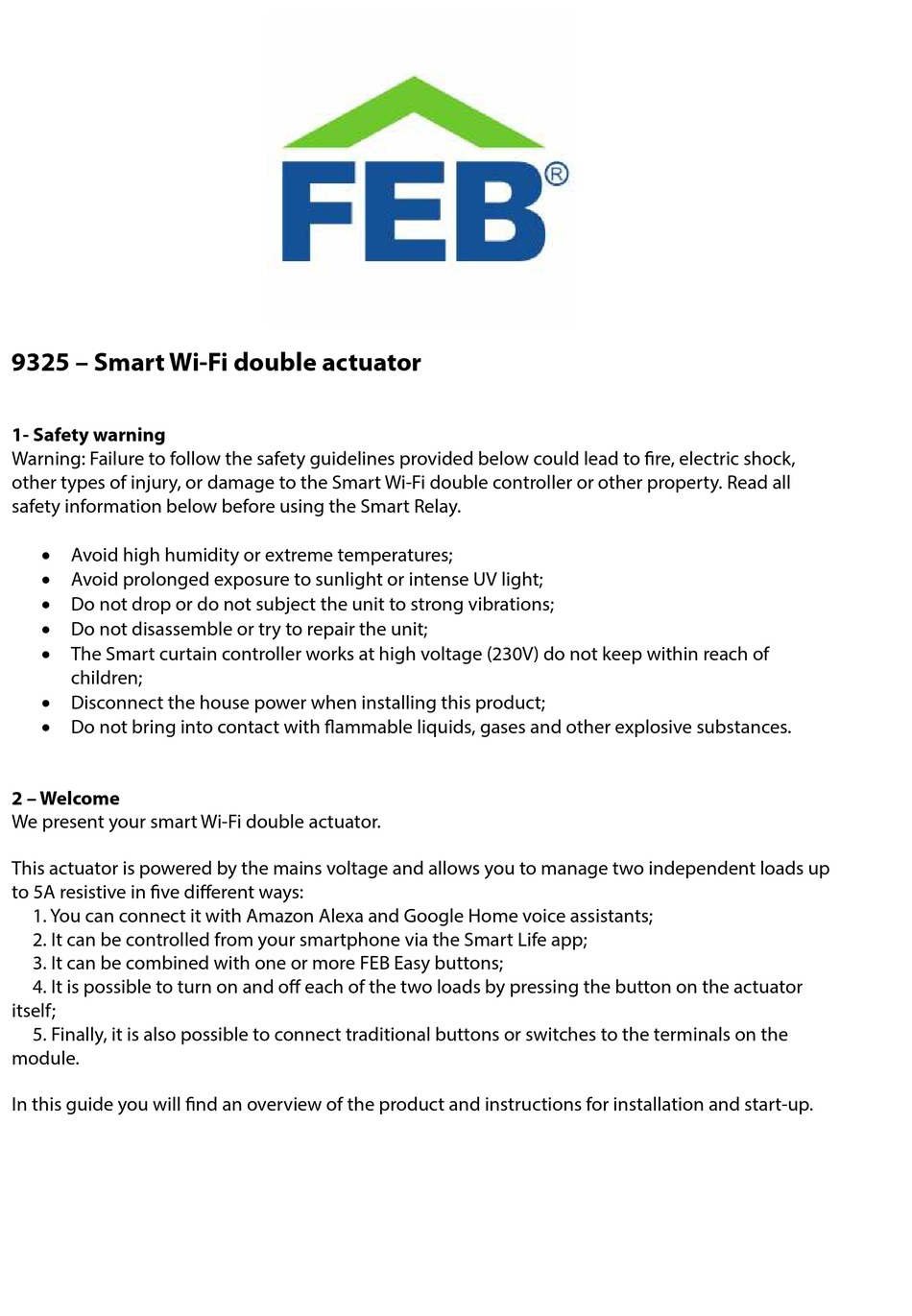

9325 – Smart Wi-Fi double actuator

1- Safety warning

Warning: Failure to follow the safety guidelines provided below could lead to re, electric shock,

other types of injury, or damage to the Smart Wi-Fi double controller or other property. Read all

safety information below before using the Smart Relay.

 Avoid high humidity or extreme temperatures;

 Avoid prolonged exposure to sunlight or intense UV light;

 Do not drop or do not subject the unit to strong vibrations;

 Do not disassemble or try to repair the unit;

 The Smart curtain controller works at high voltage (230V) do not keep within reach of

children;

 Disconnect the house power when installing this product;

 Do not bring into contact with ammable liquids, gases and other explosive substances.

2 – Welcome

We present your smart Wi-Fi double actuator.

This actuator is powered by the mains voltage and allows you to manage two independent loads up

to 5A resistive in ve diﬀerent ways:

1. You can connect it with Amazon Alexa and Google Home voice assistants;

2. It can be controlled from your smartphone via the Smart Life app;

3. It can be combined with one or more FEB Easy buttons;

4. It is possible to turn on and oﬀ each of the two loads by pressing the button on the actuator

itself;

5. Finally, it is also possible to connect traditional buttons or switches to the terminals on the

module.

In this guide you will nd an overview of the product and instructions for installation and start-up.

Table of Contents

Do you have a question about the 9325 and is the answer not in the manual?

Page 1 2. It can be controlled from your smartphone via the Smart Life app; 3. It can be combined with one or more FEB Easy buttons; 4. It is possible to turn on and oﬀ each of the two loads by pressing the button on the actuator itself;...
Page 2  Antenna: it is the antenna used to receive radio signals from the FEB Easy wireless buttons. 4 – Start up  To pair the 9325 actuator with the FEB Easy buttons, simply press the pairing button for about 3 seconds, until the LED indicator starts ashing, at this point press the button you want to pair.
Page 3  To connect the 9325 actuator to your home Wi-Fi network, download the Smart Life app from the Google Play Store, or from the Apple App Store. Touch the + sign in the upper right corner and select "Add manually".
Page 4 ◦ Verify that your router is set to use 2.4GHz Wi-Fi; ◦ Check that your phone is connected to 2.4GHz Wi-Fi; ◦ Keep phone, router and 9325 module close to each other during connection.  The device sometimes appears oﬄine in the app: ◦...
