Contents Page Contents General information Record of amendments Warranty Introduction and indications for use Contraindications Accessories Controls and markings Installation Operating instructions Maintenance Appendix A – Overview of treatment modality Appendix B - Technical specification Appendix C - EMC Table Appendix D –...
The information contained in this manual is subject to change without notice. No part of this manual may be photocopied, reproduced or translated into another language without the prior written consent of EMS Physio Ltd. Record of amendments ISSUE COMMENTS...
Warranty This EMS Physio Ltd., (hereinafter called the Company) product is warranted against defects in materials and workmanship for a period of two years from the date of shipment. The Company will at its option, repair or replace components which prove to be defective during the warranty period, provided that the repairs or replacements are carried out by the Company or its approved agents.

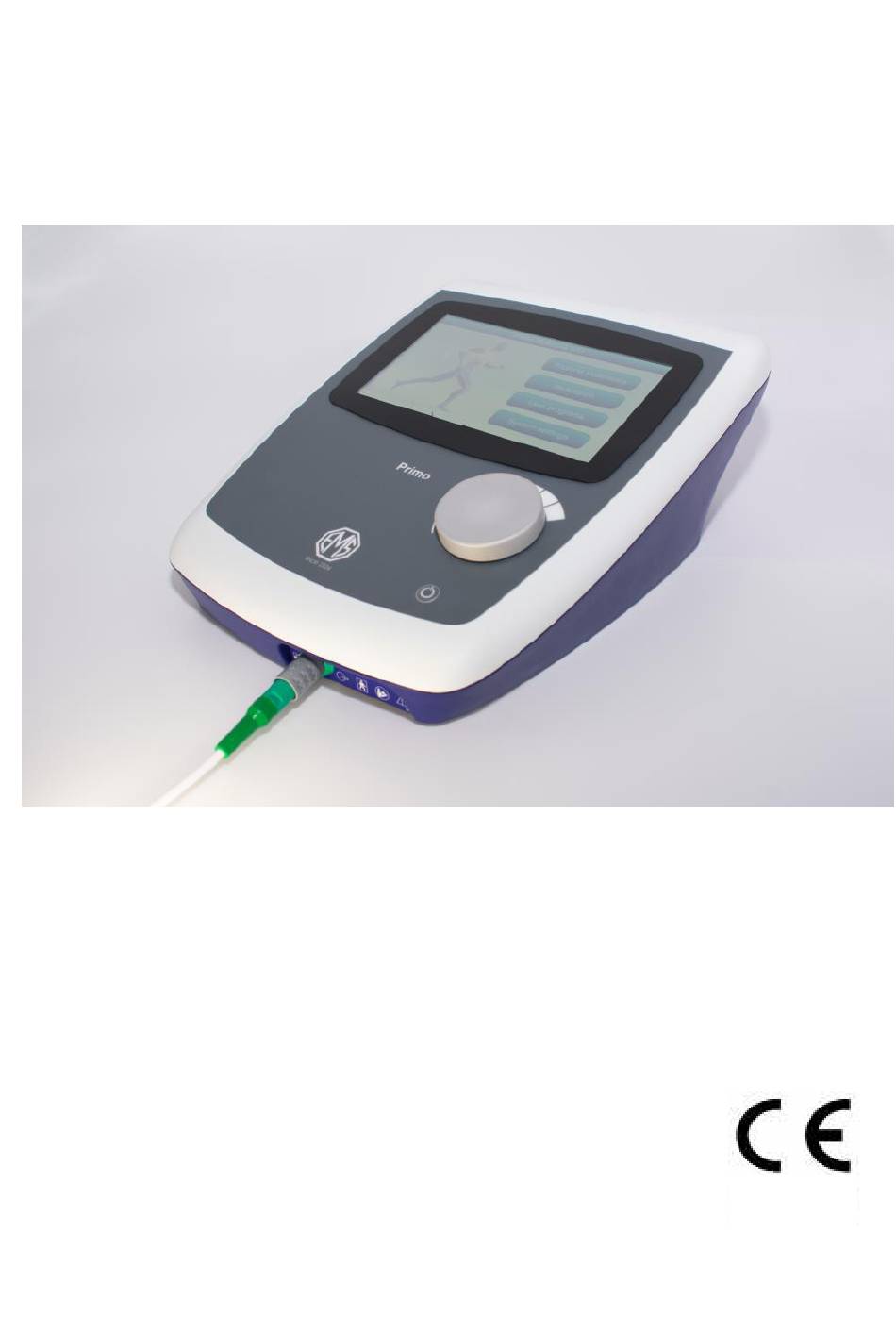

Introduction The Interferential 960 provides Interferential 4-pole and two independent channels of 2-pole and/or Medi-Wave electrotherapy only. The Multidyne 970 provides two independent electrical stimulation channels each with a complete range of low and medium frequency waveforms (including Interferential) for electrotherapy and electro- diagnostics.
Page 7
Maintenance section of this manual. Cleaning: Proper cleaning of the electrodes and main unit is required. For cleaning instructions, refer to the Maintenance chapter of this manual Modification of the EMS960/970 is not permitted and may result in a hazardous situation. OM960/970EN Iss 9...
Contraindications Acute sepsis, due to the risk of spreading infection. Tumours, due to the risk of increased growth or metastatic activity. Pregnancy, do not treat the lower abdomen, back or pelvis. Menstruation, do not treat lower back or abdomen due to risk of increased bleeding or pain.
Accessories supplied as standard Catalogue Description Number SLA9000 DC Power supply 18V 60W Patient lead (4 way – yellow and blue PMA3055 connecting cables included) NC3053A medium sponge electrode covers (for NC3053B) NC3053B 4 medium (100 x 70 mm) conductive rubber electrodes 2 Stretch bandages 1200 x 75 mm Optional accessories...
Page 10
European mains lead 6-119 North America mains lead For other countries contact EMS Physio Ltd. (contact details on page 45) or the agent from whom the unit was purchased. WARNING: Use of accessories such as electrodes or mains cables other...
Controls and Markings Interferential/Multidyne 960/970 Top TFT display with touchscreen IEC symbol 848-01-26 variability in steps Output control knob On/Off button OM960/970EN Iss 9...
Page 12
Interferential 960/Multidyne 970 Front Label IEC Symbol 348 Attention, consult accompanying documents Stimulator output socket IEC symbol IEC symbol 878-01-37 ISO symbol 7010-M002 878-02-03 Type Output Instructions for use BF Equipment OM960/970EN Iss 9...
Page 13
Multidyne 970 Underside Label (Model 960 is identical) Serial number ISO symbol 7010- and date of Name and M002 Address of manufacture Instructions for use IEC symbol 348 Attention, Manufacturer consult accompanying documents Do not dispose of as unsorted waste 2006/96/EC WEEE Directive) Model...
Page 14
Patient Lead (PMA3055) Electrode connecting cables OM960/970EN Iss 9...
Installation Upon receipt, check for any visible damage which may have occurred in transit. If any signs of damage are found, then retain all packing material and inform the carrier and the Company or its agent from whom the unit was purchased within two working days.
Page 16
Essential Performance BSEN 60601-1 defines Essential Performance as: “Performance necessary to achieve freedom from unacceptable risk” Functions of the EMS960/970, the absence or degradation of which could result in a hazardous situation are: Maximum stimulation output 100mA CC or 140V CV Maximum treatment time 30 minutes Loss or degradation of these functions due to EM disturbances (e.g.
Operating Instructions Power on Sequence and General Information When the Primo Interferential 960/Multidyne 970 is turned on, the EMS company logo is displayed on a splash screen along with the model name and the software version. After a few seconds the unit will give a short beep and display the ‘Home’ screen - Interferential 960 :- Multidyne 970 :-...
Page 18
Standard User Controls Throughout the operation of the unit the various modes and parameter settings are all accessed and changed by touching the relevant buttons displayed on the touchscreen. The rotary control is used to increase and decrease stimulation intensity when a stimulation screen is selected.
Page 19
Scrolling up or down using the ▲ or ▼ buttons will reveal more stimulation options, such as – (Multidyne 970 only) or – And finally - OM960/970EN Iss 9...
Page 20
The first time the stimulator mode is selected from the list after turning on the unit, or if Interferential 4-pole was previously in use, the selected mode from the list will be applied to both channels A and B. The stimulator set-up screen will be displayed, and for any mode other than Interferential 4-pole the parameters for Channel A will be visible (Ch A is selected at the bottom left of the screen).
Page 21
User Programs The Interferential 960/Multidyne 970 can store up to 16 user defined set- ups. Touch the ‘User Programs’ button in the ‘Home’ screen or in any stimulation set up screen. A screen will appear with a scrollable list of program slots – the active one is highlighted in the middle.
Page 22
Protocol Treatments Touching the ‘Protocol treatments’ button will open a screen with a scrollable list of clinical conditions and front/back human body image. Touching different parts of the body will select a list of conditions specific to that body area. Touching the highlighted condition in the list will open a user screen with the treatment parameters set for treating that condition.
Page 23
The following pages describe the set-up pages for each stimulation type when accessed by touching the relevant button in one of the above stimulation screens:- The following common adjustments are present on the set-up screen for all stimulation types: Treatment time: Is selected either by touching the digits of the time display or by touching the clock symbol and entering the desired treatment time.
Page 24
Output Screen For the status of both channels to be viewed when running simultaneously it is best to move to the Output screen which is achieved by touching the ‘Output’ button at the bottom right of the display. It is possible to move from the ‘Setup’...
Page 25
With Channels A and B selected at the bottom left of the display turning up the rotary control will start both channels running together. Touching either the ‘A’ or ‘B’ button again would de-select it and allow individual control of the still-selected channel. The status bars to the right of each channel strip give a moving indication of any frequency sweep or Burst/Surge function in real time.
Page 26
Interferential 4-pole set-up (960 and 970) Interferential 4-pole therapy (IFT4) always uses both output channels A and B. Operating the rotary dial will increment both A and B outputs together. ‘Carrier’: Touching this button selects 4, 8 or 2 kHz carrier frequency. ‘AMF’...
Page 27
‘Pattern’: The pattern determines the rate at which the beat frequency sweeps between the base and peak frequencies. Three patterns are available by touching the Pattern button. The 1|1 pattern gives 1 second at the base frequency followed by 1 second at the peak frequency.
Page 28
Interferential 2-pole Set-up (960 and 970) Interferential 2-pole therapy (IFT2) is similar to Interferential 4-pole except that the two medium frequencies are added together in the stimulator itself to produce a beat frequency (equal to the difference in frequencies as defined by the AMF settings) –...
Page 29
Russian Set-up (970 only) Russian stimulation therapy consists of a 2.5kHz medium frequency which is modulated on and off in bursts that can be set anywhere between 1 and 100Hz. An overall surge envelope can also be applied with variable work and rest periods.
Page 30
TENS set-up (970 only) Three waveform types are available and each type is represented graphically on the display. Type Asymmetrical Symmetrical Sequential Selection is achieved by touching the ‘Type’ button. OM960/970EN Iss 9...
Page 31
‘Frequency’: Touching this button opens a new window. The pulse frequency may be set from 2 to 250 Hz in 1 Hz increments by touching the numerical digits and then touching OK. ‘Width’: Touching this button opens a new window in which the pulse width may be set from 40 to 400 µs in 5 µs increments by touching the numerical digits and then touching ‘OK’.
Page 32
Diadynamic Set-up (970 only) ‘Type’: The diadynamic waveform may be selected by touching the ‘Type’ button. The full range of diadynamic waveforms is available: DF - diaphasé fixe, MF - monophasé fixe, CP - modulé en courtes périodes, Cpiso - modulé...
Page 33
Sinusoidal Set-up (970 only) ‘Surge’: Three surge patterns (envelopes) are available: trapezoidal, rectangular and triangular. A full description of these surge patterns is available in the technical specification section of this manual. The surge pattern may be changed by touching the surge button. ‘Rate’: Surge rates of 2, 5, 10, 20 and 30 per minute are available.
Page 34
Faradic Set-up (970 only) ‘Surge’: Three surge patterns (envelopes) are available: rectangular, triangular and trapezoidal – a graphic showing the shape of the selected one is shown on the surge button. A full description of these surge patterns is available in the technical specification section of this manual. The surge pattern may be changed by touching the ‘Surge’...
Page 35
Galvanic Set-up (970 only) ‘Polarity’: Touching this button changes the electrical polarity of the galvanic current to Pos (+), Neg (-), or Autorev (halfway through the selected treatment time) OM960/970EN Iss 9...
Page 36
Interrupted Galvanic Set-up (970 only) ‘Form’: Three different pulse shapes are available: Rectangular), Triangular and Trapezoidal. A full description of these waveforms is available in the technical specification section of this manual. ‘Width’: The pulse width may be set from 1ms to 1s for all waveforms with additional narrower pulses for rectangular only.
Page 37
Träbert Set-up (970 only) The available options are treatment time, polarity and constant current/voltage. These are set in exactly the same way as in the other operating modes. OM960/970EN Iss 9...
Page 38
Medi-Wave Set-up (960 and 970) ‘Frequency’: Touching this button opens this window:- The frequency may be set from 2 to 60 Hz in 1Hz increments. ‘Mode’: Normally Medi-Wave stimulation is used in continuous mode - that is with no modulation (none). In addition, burst and surged modes are also available.
Page 39
Microcurrent Set-up (970 only) ‘Frequency’: The frequency may be set from 1Hz to 1000Hz in a pop-up window. ‘Polarity’: This may be Pos (+), Neg (-), or Autorev (halfway through the selected treatment time) Only Constant Current output mode is available in Microcurrent. OM960/970EN Iss 9...
Page 40
Treatment Connect the patient lead to the output socket of the unit. Attach suitable electrodes to the patient and connect the patient lead to the electrode using the blue and yellow cables provided. The yellow cables are channel A and the blue cables channel B.
Page 41
Electrode Fault Detection When a constant current output is chosen and the unit is operating in 4 or 2 pole interferential mode (also in Russian, diadynamic, sinusoidal, galvanic or Träbert modes for the Interferential 970 unit) the electrode impedance is monitored to ensure that adequate electrode contact is maintained.
Page 42
S/D Curve (970 only) This mode generates rectangular interrupted galvanic pulses for plotting strength/duration curves. Output is from channel A at constant voltage only. Pressing the S/D Curve button in the Stimulator mode list produces this screen – The start pulse width may be adjusted from 100ms to 1s by repeatedly pressing the Start button and the end pulse width from 10μs to 1ms by repeatedly pressing the ‘End’...
Page 43
The graphic at the bottom of the screen displays the pulse width and the progress bar shows when the pulse occurs. Pulse repetition rate is fixed at 20/min. Once muscle contraction has just been detected press ‘Next’. The first point of the S/D curve will be plotted, and the pulse width will decrement to the next width setting.
Page 44
Electrodes It is recommended that only electrodes supplied by EMS Physio Ltd. are used with the Interferential 960/Multidyne 970. Three sizes of conductive rubber electrodes are available. These are small (70 x 50 mm), medium (100 x 70 mm) or large (130 x 100 mm). Replacement sponge covers are available for each electrode.
Maintenance The electrodes and covers may be disinfected using a 70% v/v aqueous solution of isopropyl alcohol. They are NOT suitable for steam sterilisation or for disinfectants containing sodium hypochlorite. N.B. Isopropyl alcohol is flammable and should be kept away from naked flames.
Appendix A – Overview of treatment modalities Electrotherapy Low-frequency stimulation Diadynamic currents were introduced by Dr. Pierre Bernard. They are various combinations of half and full wave rectified 50 Hz sinewaves. Their therapeutic benefits include pain relief, reduction of swelling and inflammation, increased local circulation, muscle strengthening and re- education.
Page 47
Medium-frequency stimulation Interferential therapy employs medium frequency currents used in 2 or 4- pole configurations to produce a low frequency stimulation effect. Prior to the introduction of interferential therapy in the mid-1950s, low frequency stimulation was used for pain relief, muscle re-education etc. These currents, however, have the disadvantage that normal human skin has a relatively high impedance at such frequencies.
Appendix B – Technical specification General Power input (SLA9000) 100-240V ac 1.5A 50-60Hz (EMS960/970) 18V, 3.33A (from external PSU SLA9000) Classification (EN60601-1) Class 1, Type BF Fuse Internal T3.15A Size (height x width x depth) 108 x 237 x 333 mm Weight 1.3 kg...
Page 50
Interrupted galvanic (970 only) Pulse width 10 µs to 1 s for rectangular 1 ms to 1 s for other shapes Waveform Rectangular, triangular or trapezoidal Pulse rate 1 to 30 /minute Output type 0-70mA peak 0-140V peak Polarity Positive, negative or auto-reverse Träbert (970 only) Waveform...
Page 51
Output Waveforms Interferential 4-pole Channel A Channel B Carrier Frequency Period Frequency Period 2 kHz 2 kHz 500 µs 1.75-2 kHz 572-500 µs 4 kHz 4 kHz 250 µs 3.75-4 kHz 267-250 µs 8 kHz 8 kHz 125 µs 7.75-8 kHz 129-125 µs In constant current mode the maximum output current per channel is 100 mA peak (70 mA rms).
Page 52
Interferential 2-pole The maximum output voltage and current are the same as for Interferential 4-pole operation. Two channels of output are available with independent intensity control. Russian stimulation The burst frequency may be set to be from 1 Hz to 100 Hz. The on and off times are always equal and are from 0.5s (1 Hz burst) to 5 ms (100 Hz burst).
Page 53
TENS Three TENS waveforms are available: pulse period = 1/(repetition rate) TENS burst mode For repetition rates greater than 20 Hz, the TENS output is on for 0.25 s and off for 0.25 s ( 2 Hz burst frequency). For repetition rates less than 20 Hz the on and off times are 5 pulse periods.
Page 54
Diadynamic In diadynamic mode the unit produces six different waveforms. The maximum peak output current is limited to 70 mA. DF - diaphasé fixe The DF waveform is a continuous full wave rectified 50 Hz sinewave. rms current = peak current x 0.707 The maximum rms current is 50 mA.
Page 55
LP - modulé en longues périodes The LP waveform provides an MF signal for 5 seconds. Then over the next 2.5 seconds the other phase of the 50Hz rectified signal is smoothly increased in amplitude to give a DF signal for a further 5 seconds. Finally, the signal returns to MF by smoothly reducing one phase of the rectified signal over the next 2.5 seconds.
Page 56
Sinusoidal In sinusoidal mode, the output is an amplitude-modulated medium frequency (4 kHz) with 50 Hz sinusoidal beat frequency. The amplitude is determined by the output level setting and the surge type and rate. The maximum output is 140 V or 50 mA peak. For a sine wave the peak output or amplitude is equal to the rms output multiplied by √2, or, conversely rms output = peak output x 0.707...
Page 57
Faradic The output in faradic mode is a series of 0.5ms pulses at a repetition rate of 50 Hz with zero dc content. The pulse train is surged in the same way as the sinusoidal output. Galvanic Galvanic mode produces a direct current of up to 70mA or 140V in either a positive, negative or auto-reverse (halfway through the treatment time) electrical polarity.
Page 58
Träbert This mode produces a continuous train of 2ms pulses with a 5 ms interval between each pulse. The pulse repetition rate is therefore approximately 143 Hz. Pos (+), Neg (-), or autorev polarities are selectable. Medi-Wave The Medi-Wave output is a train of differentiated pulses with a pulse width of 6 ms.
Page 59
Output display The Primo Interferential 960/Multidyne 970 display shows the peak current or peak voltage of each output channel depending on whether constant current (CC) or constant voltage (CV) has been selected for the treatment. All information on model, serial number, and month/year of manufacture is located on the rear panel.
Appendix C - EMC test levels. Class/Group/Immunity Test standard Description test level CISPR11:2009+A1:2010 Radiated emissions Class A Group 1 Conducted CISPR11:2009+A1:2010 Class A Group 1 emissions Immunity from IEC/EN 61000-4-2 electrostatic ±15kV air, ±8kV contact discharge Radiated RF IEC/EN 61000-4-3 3V/m immunity Radiated immunity...
Page 62
EMS Physio Ltd. Grove Technology Park Downsview Road Wantage Oxfordshire OX12 9FE T: 0 1 2 3 5 7 7 2 2 7 2 F : 0 1 2 3 5 7 6 3 5 1 8 E : s a l e s @ e m s p h y s i o . c o . u k W e b s i t e : h t t p : / / w w w.
