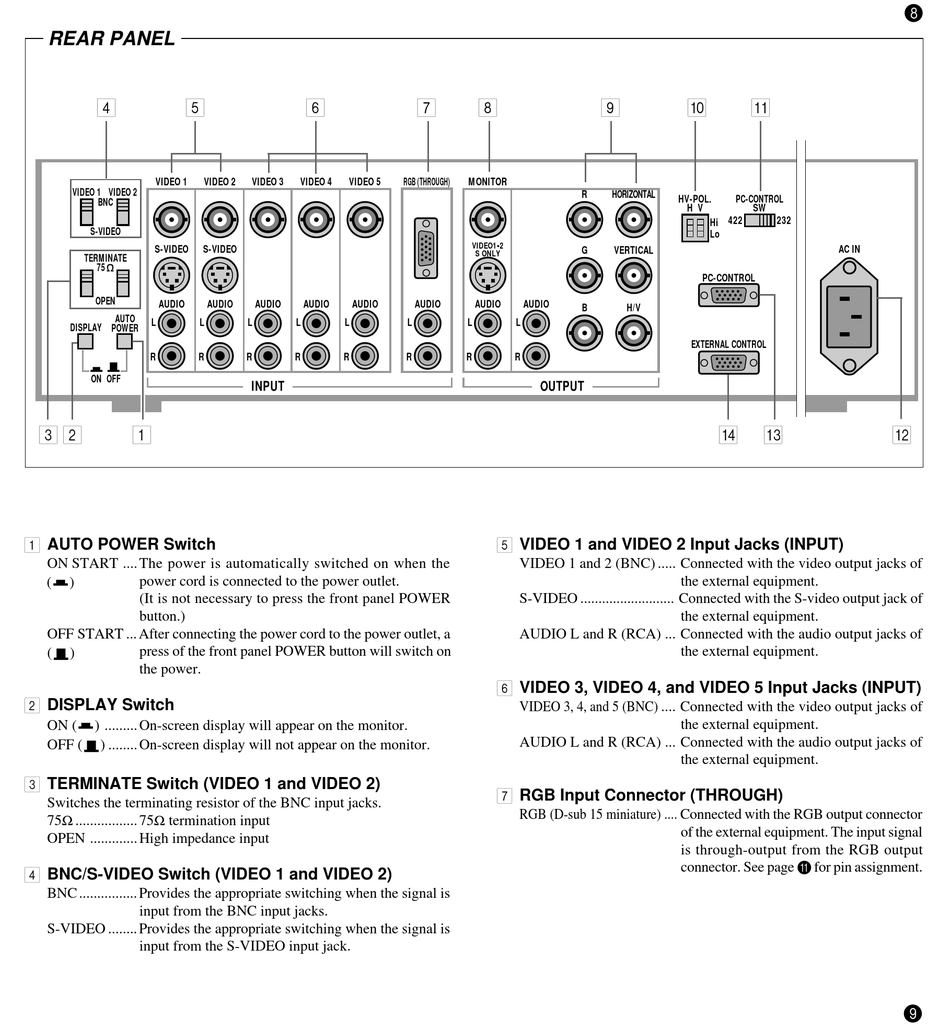

REAR PANEL
4
5
VIDEO 1
VIDEO 2
VIDEO 1 VIDEO 2
BNC
S-VIDEO
S-VIDEO
S-VIDEO
TERMINATE
75
OPEN
AUDIO
AUTO
L
L
DISPLAY
POWER
R
R
ON OFF
3 2
1
1 AUTO POWER Switch
ON START .... The power is automatically switched on when the
power cord is connected to the power outlet.
(
)
(It is not necessary to press the front panel POWER
button.)
OFF START ... After connecting the power cord to the power outlet, a
press of the front panel POWER button will switch on
(
)
the power.
2 DISPLAY Switch
ON (
) ......... On-screen display will appear on the monitor.
OFF (
) ........ On-screen display will not appear on the monitor.
3 TERMINATE Switch (VIDEO 1 and VIDEO 2)
Switches the terminating resistor of the BNC input jacks.
75 ................. 75 termination input
OPEN ............. High impedance input
4 BNC/S-VIDEO Switch (VIDEO 1 and VIDEO 2)
BNC ................ Provides the appropriate switching when the signal is
input from the BNC input jacks.
S-VIDEO ........ Provides the appropriate switching when the signal is
input from the S-VIDEO input jack.
6
VIDEO 3
VIDEO 4
VIDEO 5
AUDIO
AUDIO
AUDIO
AUDIO
L
L
L
R
R
R
INPUT
7
8
RGB (THROUGH)
MONITOR
R
VIDEO1•2
G
S ONLY
AUDIO
AUDIO
AUDIO
B
L
L
L
R
R
R
OUTPUT
5 VIDEO 1 and VIDEO 2 Input Jacks (INPUT)
VIDEO 1 and 2 (BNC) ..... Connected with the video output jacks of
S-VIDEO .......................... Connected with the S-video output jack of
AUDIO L and R (RCA) ... Connected with the audio output jacks of
6 VIDEO 3, VIDEO 4, and VIDEO 5 Input Jacks (INPUT)
VIDEO 3, 4, and 5 (BNC) .... Connected with the video output jacks of
AUDIO L and R (RCA) ... Connected with the audio output jacks of
7 RGB Input Connector (THROUGH)
RGB (D-sub 15 miniature) .... Connected with the RGB output connector
9
0
A
HORIZONTAL
HV-POL.
PC-CONTROL
H V
SW
422
232
Hi
Lo
VERTICAL
PC-CONTROL
H/V
EXTERNAL CONTROL
D
C
the external equipment.
the external equipment.
the external equipment.
the external equipment.
the external equipment.
of the external equipment. The input signal
is through-output from the RGB output
connector. See page A for pin assignment.
8
AC IN
B
9
