Hathorn H12+ Operator's Manual

Hide thumbs Also See for H12+:

Advertisement

Quick Links

Download this manual

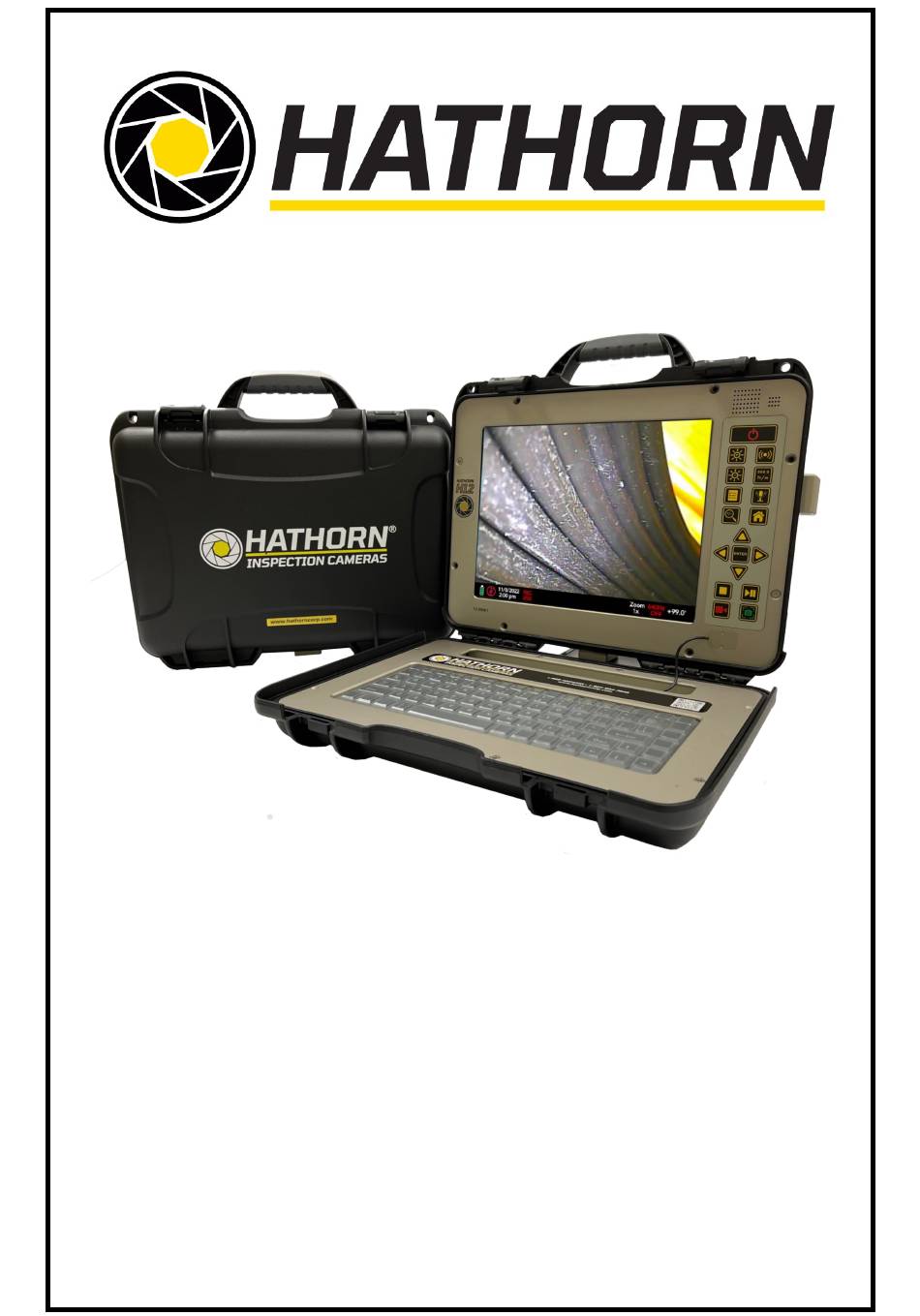

OPERATOR'S MANUAL FOR
H12+ CONTROLLER
For Safe and Effective Operation:
Before operation of your system, it is advised that
this manual be read carefully.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the H12+ and is the answer not in the manual?

Questions and answers

Related Manuals for Hathorn H12+

Summary of Contents for Hathorn H12+

  • Page 1 OPERATOR’S MANUAL FOR H12+ CONTROLLER For Safe and Effective Operation: Before operation of your system, it is advised that this manual be read carefully.

  • Page 3: Table Of Contents

    CONTENTS PAGE 4 LIMITED WARRANTY PAGE 5 LIMITATION OF WARRANTY / SERVICE / FREIGHT PAGE 6 PRODUCT SPECIFICATIONS PAGE 7-8 KEYPAD & KEYBOARD ICONS PAGE 9-11 KEYBOARD FUNCTIONS & USER INSTRUCTIONS PAGE 12 RECORDING VIDEO / SCREENSHOTS PAGE 13 PLAYING / RENAMING / DELETING FILES PAGE 14 INSPECTION PROCEDURE PAGE 15...

  • Page 4: Limited Warranty

    Limited War- ranty, we will repair, adjust or replace defective parts as Hathorn® Corpo- ration deems appropriate.
  • Page 5 Hathorn® shall have no liability for general, special, incidental or consequential damages arising out of the use or misuse of Hathorn®...

  • Page 6: Product Specifications

    PRODUCT SPECIFICATIONS Weight without Battery 9.5lbs (4.3Kg) Length x Width x Depth 15" X 12" X 5.5" [38cm X 30cm X 14cm] Power AC/DC Adapter 12V - 4.1A Battery Only Milwaukee® M18 18V or equivalent Battery Life ~4hrs using 3.0Ah (not recording & sonde off) Battery Extender Yes with on-screen battery display Display...

  • Page 7: Keypad & Keyboard Icons

    KEYPAD ICONS Power On/Off Sonde On/Off Camera LEDs Up Camera LEDs Down Footage Counter Reset Hathorn® Info Bar  Mic/Speaker On/Off Zoom 1X, 2X, 4X, 8X Menu Enter & Exit Naviga on Bu ons Enter / Confirm Selec on Pause Recording &    Stop Recording &      Playback Videos Playback Take Screen  Record  Video MAIN MENU OPTIONS...
  • Page 8 MENU key then select Controller Options. In the controller options menu you can change: · Which Hathorn® reel you want to use · Monitor brightness and contrast. For optimal picture leave brightness at 10 and contrast at 5 ·...
  • Page 9 INFORMATION BAR The Hathorn® INFO BAR allows the user to type in a company or client name for overlay onto videos and screen shots. Press the INFO BAR keypad button and use the keyboard to enter up to 74 characters of text.
  • Page 10 Reel Selection Your controller will work with all Hathorn® reels, but you must select the correct reel size to ensure correct footage counter calibration. To select the correct reel press the MENU button, then press enter again on the REEL SELECTION icon.
  • Page 11 In the main menu you can select the frequency you wish to use, 512Hz or 640Hz. On the main screen push the SONDE button to turn the sonde on or off. The Hathorn® Info Bar will indicate which frequency is selected and if the sonde is active in green text.

  • Page 12: Recording Video / Screenshots

    RECORDING VIDEO Select the media location you wish to record to in the Controller Menu. You can choose USB, HDD or both USB & HDD. Insert the USB (must be formatted in FAT format) stick into the USB port if you wish to record to USB.
  • Page 13 PLAYING MEDIA FILES Press the MENU key, then enter the FILE STORAGE OPTIONS menu. Select the date on which files were recorded and then highlight the file you wish to play and press the RIGHT ARROW key on the key- pad or enter key on the keyboard.

  • Page 14: Inspection Procedure

    INSPECTION PROCEDURE Skids or sleeves should ALWAYS be used to protect the camera head. De- pending on the size of the pipe you are inspecting, you may need to use a skid, so the camera is centered or off the floor of the line. Care should be taken so the skids do not snag in the line.

  • Page 15: Locating The Sonde

    LOCATING THE SONDE SIGNAL (512HZ & 640HZ) Insert the sonde in the drain and locate it while it is still just in view at the drain or duct entrance. Hold the locator vertical directly over the sonde with the antenna in line with the sonde. Adjust the locator sensitivity so the bar graph reads between 60% and 80%.
  • Page 16 TROUBLESHOOTING Contact Service Department at 1-905- 604-7040 or info@hathorn.com If a problem not shown on this chart is found please con- tact a Hathorn® service center.
  • Page 17 When winding the cable back onto the reel after an inspection, it is good practice to use a cloth to wipe off any debris. Hathorn® also recommends the use of genuine Hathorn® reel covers. Hathorn® manufacturers it’s reel covers from in- dustrial grade reinforced vinyl and will stop liquids from dripping from your equipment.
  • Page 18 REPAIR FACILITIES - USA Repairs, warranty or otherwise, returned to Hathorn must be submitted with a “Return Maintenance Authorization.” For “RMAs” please contact: Hathorn USA Address: 739 North Wilson Road, Columbus, OH, 43204 Phone: 1-855-863-9226 FAX: 1-905-604-3400 Email: usaservice@hathorncorp.com Website: www.hathorncorp.com Kaiser Premier USA –...
  • Page 19 REPAIR FACILITIES - CANADA Repairs, warranty or otherwise, returned to Hathorn must be submitted with a “Return Maintenance Authorization.” For “RMAs” please contact: Hathorn Canada - Ontario, Manitoba & Eastern Canada Address: 255 Shields Court, Unit C, Markham, ON L3R 8V2 Phone: 1-905-604-7040 FAX: 1-905-604-3400 Email: service@hathorncorp.com...
  • Page 20 Hathorn Canada 255 Shields Court, Unit C Markham, Ontario, Canada L3R 8V2 +1 (866) HATHORN Hathorn USA 739 North Wilson Road Columbus, Ohio, USA 43204 +1 (855) 863-9226...
