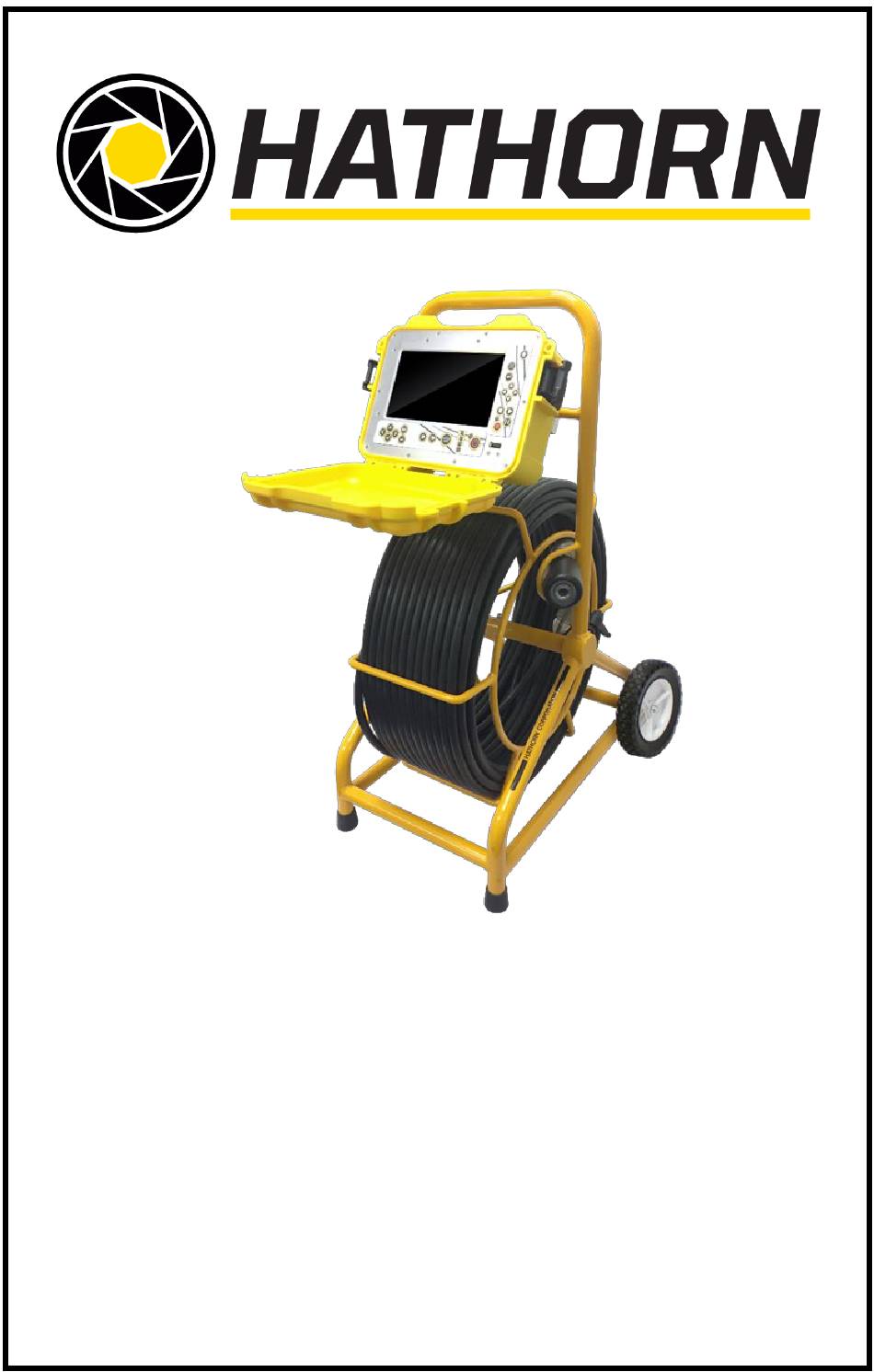

- Page 1 OPERATOR’S MANUAL FOR M7 CAMERA SYSTEM For Safe and Effective Operation: Before operation of your system, it is advised that this manual be read carefully.
-
Page 2: Table Of Contents
CONTENTS PAGE 3 LIMITED WARRANTY PAGE 4 LIMITATION OF WARRANTY / SER- VICE / FREIGHT PAGE 5 NON-WARRANTY CHARGES / PROD- UCT FEATURES PAGE 6 USER INSTRUCTIONS PAGE 7-9 INSPECTION PROCEDURE PAGE 10-11 FEATURE IDENTIFICATION PAGE 12-15 USB RECORDING & PLAYBACK PAGE 16 TROUBLESHOOTING PAGE 17... -
Page 3: Limited Warranty
The manufacturer’s responsibility under this Limited Warranty is limited to the repair, adjustment or replace- ment of defective parts as determined by Hathorn in its sole discretion. Routine cleaning and normal cosmetic wear and tear are not covered by this Limited Warranty. - Page 4 LIMITATION OF LIABILITY By your acceptance of this limited warranty, you agree that Hathorn shall have no liability to you for any damages re- sulting from delay or loss of use of the product in service or repair. Hathorn shall have no liability for general, special, incidental or consequential damages arising out of breach of this limited warranty.
-
Page 5: Non-Warranty Charges / Prod
Hathorn at: 1-905-604-7040 PRODUCT FEATURES With the M7 reel you can complete pipe inspections with- out the use of a traditional monitor and with the ease of a system that runs on external 18V Milwaukee compatible batteries (not included) or the 12V AC/DC adapter. -
Page 6: User Instructions
USER INSTRUCTIONS Setting Up the System for Use Connect DC power plug to the jack on the back of the con- trol box, then plug the AC power plug into the outlet. Press the power button on the monitor. At this point you should have lights on the camera and a picture on the monitor. -
Page 7: Inspection Procedure
INSPECTION PROCEDURE Skids or sleeves should ALWAYS be used to protect the camera head. Depending on the size of the pipe you are inspecting, you may need to use a skid, so the camera is centered or off the floor of the line. Care should be taken so the skids do not snag in the line. - Page 8 6. NEVER use the camera to unclog a drain or clear de- bris in the pipe. Doing so can cause damage to the camera head or lens. 7. NEVER force the camera down a pipe as this may cause a kinked cable which will require expensive re- pairs.
- Page 9 LOCATING THE 512 Hz SONDE Insert the sonde in the drain and locate it while it is still just in view at the drain or duct entrance. Hold the locator verti- cal directly over the sonde with the antenna in line with the sonde.
-
Page 10: Feature Identification
FEATURE IDENTIFICATION 18V Battery Cradle and AC/DC 7.4” Monitor 6” Wheels LED Lights Sapphire Camera Lens Plastic Skid/Sleeve... - Page 11 7.4” LCD Screen Recording Board ON/OFF System ON/OFF Text Writer Camera Sonde Battery and Navigator Lights ON/OFF Indicator: On- & Coun- ly applicable on internal battery units Home Menu Enter Menu Navigation Play, Stop recording and Pause Video Files Recording Board Power ON & One Touch Recording...
- Page 12 SLP in order of reducing quality but with smaller file sizes. The M7 system always records in MPEG4 format. Do not change the recording device from USB to HDD as an HDD is not installed. If this is changed no...
- Page 13 RECORDING TO A USB STICK 1. Press Recording Board Power button and wait for re- cording system to boot up (about 15 seconds). It’s red light should now be on. 2. Insert the USB stick into the USB jack and wait for the system to recognize its presence.
- Page 14 PLAYING BACK VIDEO FILES Press the home button and then navigate left or right to “Browse USB Stick” and press the Enter button. Press enter again at the USB icon. Note: this system does not come with an HDD. Press enter again on the file and then enter again on the file “REC”.
- Page 15 Including the opportunity to flash the system with an update, change the time, date and time zone, format the HDD (not applicable to the M7), and reset the system to the factory default settings. Setting the time and date is the most important feature for the average user.
-
Page 16: Troubleshooting
TROUBLESHOOTING Contact Service Department at 1-905- 604-7040 or info@hathorn.com If a problem not shown on this chart is found please contact a Hathorn service center. -
Page 17: Maintenance
MAINTENANCE Inspection Camera - After every use, the camera should be cleaned and checked for possible damage. External scuffing of the camera case is normal and should be of no concern. The camera view port is made of sapphire and should be cleaned with a soft, damp cloth. - Page 18 REPAIR FACILITIES - USA Repairs, warranty or otherwise, returned to Hathorn must be submitted with a “Return Maintenance Au- thorization.” For “RMAs” please contact: Reliable Drain Camera Repairs Ltd. Address: 739 North Wilson Road, Columbus, OH, 43204 Phone: 1-855-863-9226 FAX: 1-905-604-3400 Email: service@sewercamerarepairs.com...
- Page 19 Address: 13041 N 35th Ave c6, Phoenix, AZ 85029 Phone: 602-375-5337 email: info@azlocators.com Website: www.azlocators.com REPAIR FACILITIES - CANADA Hathorn Corporation - Eastern Canada Address: 255 Shields Court “C”, Markham, ON L3R 8V2 Phone: 1-905-604-7040 FAX: 1-905-604-3400 Email: info@hathorncorp.com Website: www.hathorncorp.com The Drain Camera Shop –...
- Page 20 Hathorn Canada 255 Shields Court, Unit C Markham, Ontario, Canada L3R 8V2 +1 (866) HATHORN Hathorn USA 739 North Wilson Road Columbus, Ohio, USA 43204 +1 (855) 863-9226...
