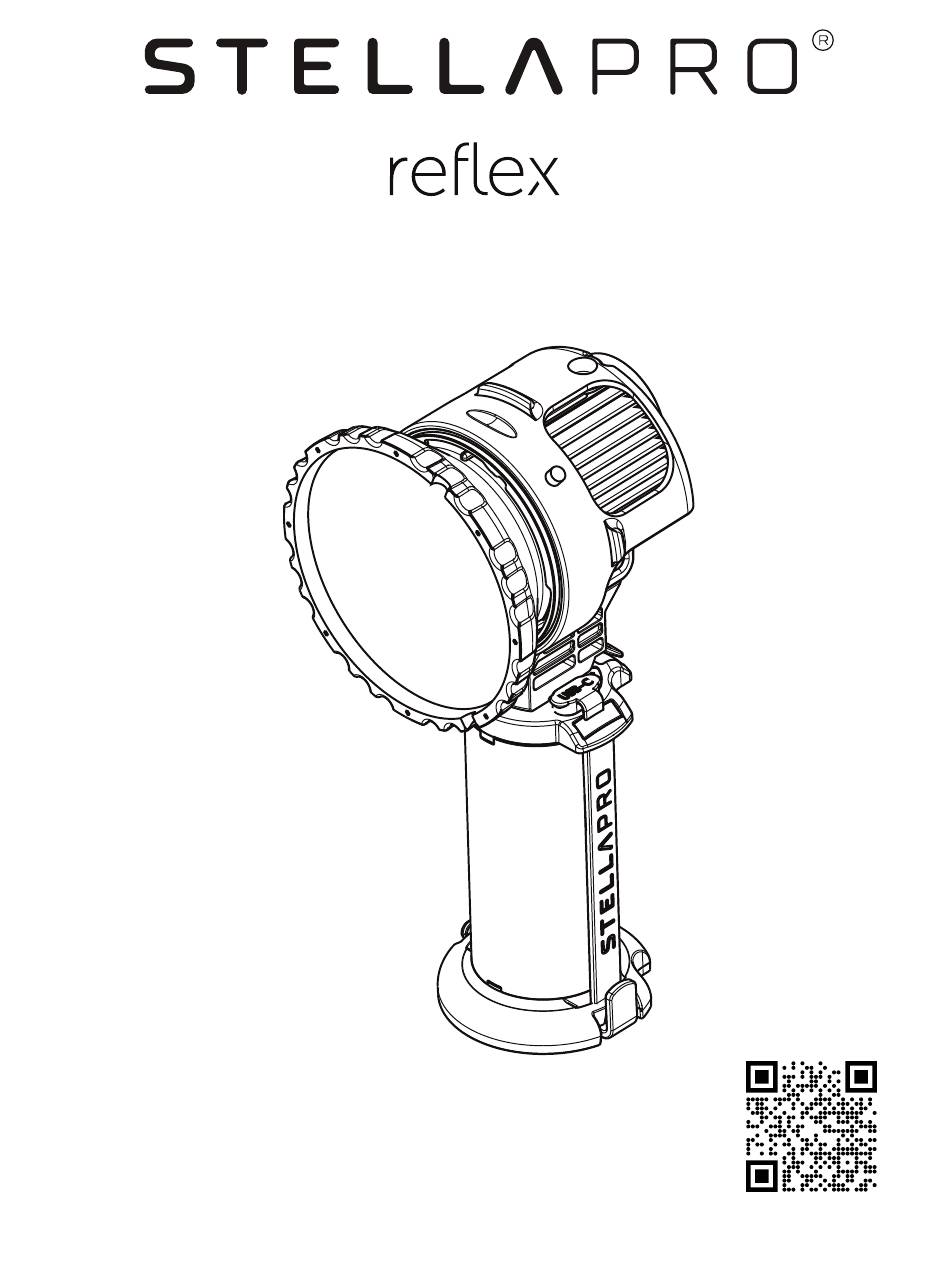

- Page 1 User Manual stellaprolights.com...
-
Page 2: Table Of Contents
Table of Contents Section 1 Reflex Light Section 2 Battery Handle Section 3 Connecting the light to battery handle and powering on Section4 Operation basics Section 5 OLED display Section 6 Menu overview Section 7 Light settings for operation with... -
Page 3: Reflex Light
Section 1 REFLEX LIGHT 1/4”-20 Mounting Point Direct mount OLED Display Speedring Mount Umbrella Mount 3.5 mm port External Trigger Mounting Point USB-C Port DIRECT MOUNT Control Dial Medium Flat Port Spot Optic Cover* Always install a cover or optic over the exposed LED to... -
Page 4: Battery Handle
Power Button Section 2 BATTERY HANDLE USB-C Port Cover Mounting Latch Handstrap / Pole Strap State of Charge (SOC) LEDs (25%, 50%, 75%, 100%) BATTERY INDICATOR LED to indicate battery state Charging (Green) Discharging (Red) Pole Mounting Feature MOUNTING BATTERY HANDLE TO LIGHT STAND Professional Light Stand Sold Separately... -
Page 5: Connecting The Light To Battery
Section 3 CONNECTING LIGHT TO BATTERY Connector tab Push light onto battery until it should no longer “clicks” Tip: Push from the be compressed front top of the optic Unlatched Secured Connect USB-C cord to Reflex light and battery USB-C ports... -
Page 6: Operation Basics
Continuous and Digital Burst (Or advance through menu) • A Medium press (2 sec) enters and exits the the Reflex menu • Long press (4 sec) to enter power off (Unplug when putting in storage or traveling) • Rotate Clockwise to increase output (Or change menu setting) •... -
Page 7: Oled Display
Section 5 OLED DISPLAY 100-6000 Lumens 1.0-4.4 Stops* Stops 1/160-1/2500 Second 4000 LED Overheating (Turn off to cool down) Battery Overheating (Turn off to cool down) Sensor Fault (Return for service) Section 6 To navigate the menu, short press dial to advance the sub-menu. MENU OVERVIEW Rotate dial to change the setting. - Page 8 (not HSS) • Freeze action with light • Best used in low light situations **Duration Mode only available on the Reflex S ***18000 Lumens when using 100W USB-C PD ∝ Link Mode Only exact at shutter speeds faster than 1/200 ∝...
- Page 9 - Rotate dial to cycle mode link ∝ mode: Power or through link modes. Duration ∝ When active Reflex will strobe n times ∝ brighter than current ∝ continuous light. Group & Channel - Rotation - Rotate dial Rotate dial to select...
- Page 10 (1/2500 sec) to 6ms (1/160th sec). 3. Continuous light that Bursts upon triggering • Sync Reflex with trigger (same as Digital Burst Mode) • Set Constant light (using dial or trigger) • Set Burst power with trigger. Trigger signal will cause the light to deliver Burst power.
- Page 11 15,000 full power Digital Bursts Charge Time: 2 hours With a minimum 45W USB-C Charger (Chargers with lower wattage will charge with variable charge times) Reflex Battery Handle 60W Continuous: 100-6000 lumens Digital Burst: 1125-12000 lumens External USB-C PD 100W**...
- Page 12 Direct Mount Accessories Spot Optic 12º 800-0372 Medium Optic 24º 800-0373 Medium Wide Optic 36º 800-0406 Wide Optic 56º 800-0408 Flat Port Cover 800-0340 Dome Diffuser 800-0335 50º Optic 800-0337 Speedring Adapters Chimera Speedring 800-0382 Profoto 800-0400 Bowens 800-0371 Mounts Pro Light Stand Mount 800-0381 Bar Mount...
- Page 13 General Performance with given USB-C Supply Power Rating...
- Page 14 Reflex Mounting Options Professional Light Stand (800-0381) 3.0 Stops 3.0Stops 3.0Stops 1/4”-20 Mounting (Screen Rotated)
- Page 15 Speedring Mount Mount softboxes for Chimera, Profoto, Bowens using a StellaPro Speedring. Reflex Bar Direct Mount (Mount 1 to 5 lights) Direct Mount modifiers 800-0401 require a press-in and clockwise turn to lock. Always operate the Reflex with a Direct Mount...
- Page 16 #FlexYourReflex @stellaprolights Contact seva@lightandmotion.com for support. 905-0487-A-07...
