Summary of Contents for STELLAPRO reflex

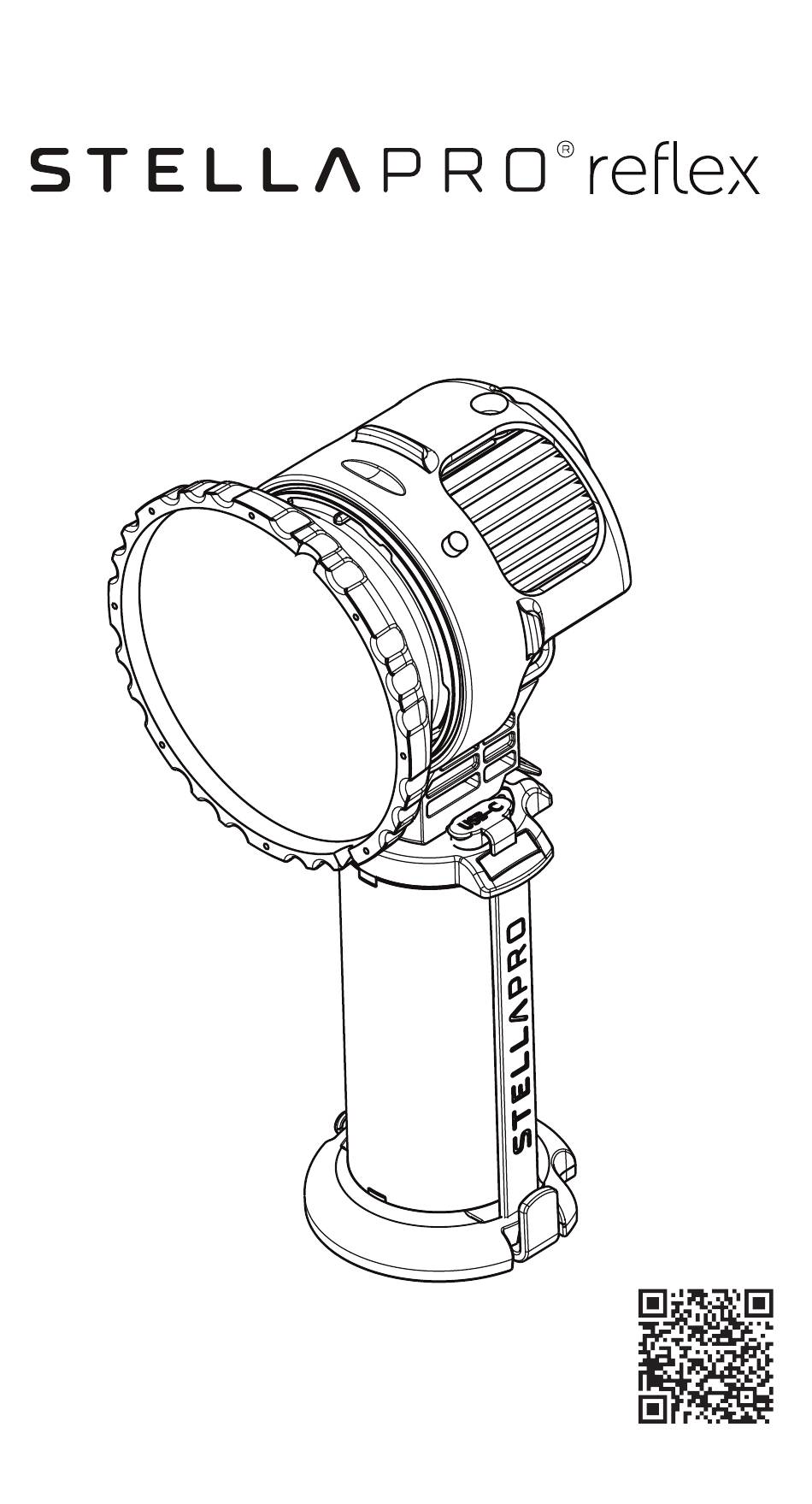

- Page 1 User Manual stellaprolights.com...
-
Page 2: Table Of Contents
Table of Contents Section 1 Reflex Light Section 2 Battery Handle Section 3 Connecting the light to battery handle and powering on Section 4 Operation basics Section 5 OLED display Section 6 Menu overview Section 7 Light settings for operation with... -
Page 3: Reflex Light
Section 1 REFLEX LIGHT 1/4”-20 Mounting Point Direct mount Speedring Mount Umbrella Mount OLED Display 3.5 mm port External Trigger Control Dial USB-C Port Mounting Point DIRECT MOUNT Medium Flat Port Spot Optic Cover* Always install a cover or optic over the... -
Page 4: Battery Handle
Power Button Section 2 BATTERY HANDLE USB-C Port Cover Mounting Latch Handstrap / Pole Strap State of Charge (SOC) LEDs (25%, 50%, 75%, 100%) BATTERY INDICATOR LED to indicate battery state Charging (Green) Discharging (Red) Pole Mounting Feature MOUNTING BATTERY HANDLE TO LIGHT STAND Professional Light Stand Sold Seperately... -
Page 5: Connecting The Light To Battery
Section 3 CONNECTING LIGHT TO BATTERY Connector tab Push light onto battery until it “clicks” should no longer Tip: Push from the front top of the optic be compressed Unlatched Secured Connect USB-C cord to Reflex light and battery USB-C ports... -
Page 6: Operation Basics
Continuous and Digital Burst (Or advance through menu) • A Medium press (2 sec) enters and exits the the Reflex menu • Long press (4 sec) to enter power off (Unplug when putting in storage or traveling) • Rotate Clockwise to increase output (Or change menu setting) •... -
Page 7: Oled Display
Section 5 OLED DISPLAY 100-6000 Lumens 1.0-4.4 Stops* Stops 1/160-1/2500 Second 4000 LED Overheating (Turn off to cool down) Battery Overheating (Turn off to cool down) Sensor Fault (Return for service) Section 6 MENU OVERVIEW To navigate the menu, short press dial to advance the sub-menu. - Page 8 (not HSS) • Freeze action with light • Best used in low light situations **Duration Mode only available on the Reflex S ***18000 Lumens when using 100W USB-C PD Link Mode ∝ Only exact at shutter speeds faster than 1/200 ∝...
- Page 9 Proportional ( ∝ Link - Rotate dial to cycle through link modes. link ∝ Whenactive Reflex will strobe n ∝ times brighter than current continuous light. ∝ ∝ Group & Channel - Rotate dial to select group and channel...
- Page 10 Section 8 UPDATING REFLEX FIRMWARE Download the StellaPro Imaging Control Application Set Reflex Wireless Mode to Bluetooth Exit Reflex Menu In the app scan for Devices Select a Device to connect Enter Serial Number Select a Device to start update...
- Page 11 0.4ms (1/2500 sec) to 6ms (1/160th sec). 3. Continuous light that Bursts upon triggering • Sync Reflex with trigger (same as Digital Burst Mode) • Set Constant light (using dial or trigger) • Set Burst power with trigger. Trigger signal will cause the light to deliver Burst power.
- Page 12 15,000 full power Digital Bursts Charge Time: 2 hours With a minimum 45W USB-C Charger (Chargers with lower wattage will charge with variable charge times) Reflex Battery Handle 60W Continuous: 100-6000 lumens Digital Burst: 1125-12000 lumens External USB-C PD 100W Continuous: 100-9000 lumens...
- Page 13 Direct Mount Accessories Spot Optic 12º 800-0372 Medium Optic 24º 800-0373 Medium Wide Optic 36º 800-0406 Wide Optic 56º 800-0408 Flat Port Cover 800-0340 Dome Diffuser 800-0335 50º Optic 800-0337 Speedring Adapters Chimera Speedring 800-0382 Profoto 800-0400 Bowens 800-0371 Mounts Pro Light Stand Mount 800-0381 Bar Mount...
- Page 14 Integrated variable speed fan automatically turns on when light output exceeds 4000 lumens. Low Speed (4100-6000), High Speed (6100-9000). Operating from external power Reflex will deliver 9000 lumens (18,000 lumens in burst) when connected to 100W or greater external power source.
-
Page 15: Firmware Updates
Ambassadors and community members. Firmware update Please make sure to update your Reflex to the latest firmware to ensure the Reflex is operating to it’s full capabilities. Update performed from the StellaPro Imaging Control app. - Page 16 General Performance with given USB-C Supply Power Rating...
- Page 17 Reflex Mounting Options Professional Light Stand 800-0381 3.0Stops 3.0Stops 3.0Stops 1/4”-20 Mounting (Screen Rotated)
- Page 18 Chimera, Profoto, Bowens using a StellaPro Speedring Reflex Bar (Mount 1 to 5 lights) 800-0401 Direct Mount Direct Mount modifiers re- quire a press-in and clock- wise turn to lock. Always op- erate the Reflex with a Direct Mount modifier installed.
- Page 20 #FlexYourReflex @stellaprolights Contact seva@lightandmotion.com for support. 905-0487-A-05...
