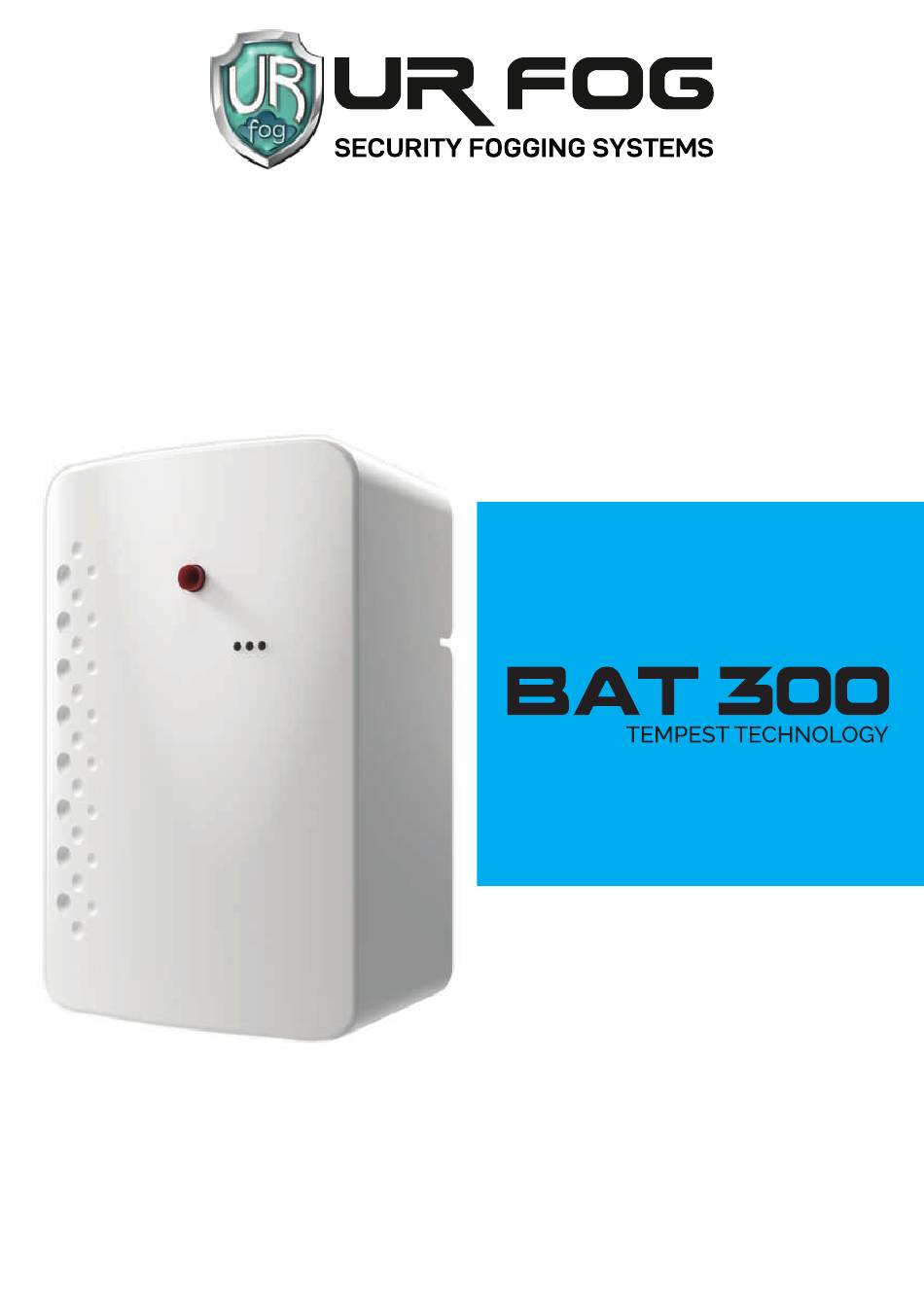

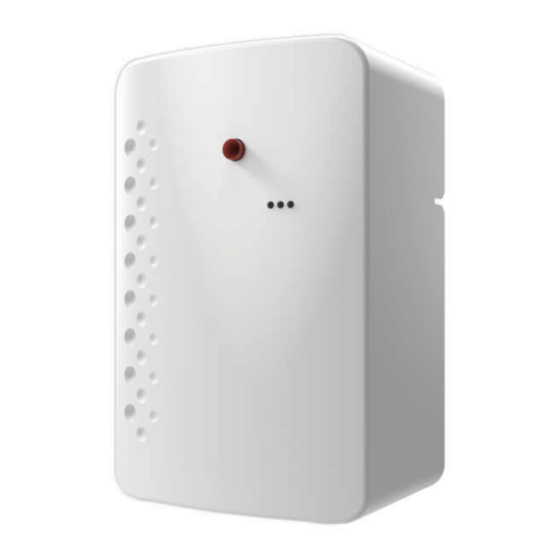

- Page 1 INSTALLATION AND USE MANUAL ENGLISH MANUAL Installation manual vers.1.0 (FW 1.1.1)
-
Page 2: Table Of Contents
General view page 7 Description of the parts (Table D) page 8 Usage scenarios for BAT 300 Tempest Technology page 9 Mode 1: low power, no supply voltage applied page 9 Mode 2: low power, supply voltage applied, slow charging mode... -
Page 3: Introduction
▪ At the date of printing of this manual it has never been pointed out any problem related to any allergy. UR Fog is in no way responsible for any damage or condition of use that has not been required and specifically approved by any specific written request prior to the installation of its products ▪... -
Page 4: Mobile Applications
It is also necessary to take all precautions so that the device cannot start when the vehicle is in motion, so that the fog cannot for any reason be generated PACKAGE CONTENTS ▪ N° 01 security fog generator BAT 300 Tempest Technology ▪ N° 02 special batteries 12V / 9Ah ▪... -
Page 5: Performance (Table C)
Please observe the following instructions and read the entire manual carefully for installing BAT 300 Tempest Technology: Request to UR Fog or its distributors to take part in courses for installers to ensure the optimal installation of the equipment. ▪... - Page 6 For wall installation use the orientable VESA bracket to direct the fog downwards (see chapter 20). The fixing holes of the wall 100 mm bracket are the same of the BAT 300 Tempest Technology. 100 mm 200 mm Positioning and installation heights...
-
Page 7: Cable Passages
CABLE PASSAGES Use the provided holes for the passage of the signals, power and LAN Cat. 5 cables Hole for signal, LAN and battery charging cables Passage for LAN cable ELECTRONIC BOARD General view J10 Internal 24 V batteries power output connector S1 Dual dip-switch to program the shooting time to power the Active CLoud board or other devices J6 Extended 10 pin serial... -
Page 8: Description Of The Parts (Table D)
TEMPEST line Name Function Note To connect the Active Cloud board or the other UR Fog Standard 6 pin serial port connector expansion boards (only in Always-on mode) Besides all the signals on J4 it makes available the power supply... -
Page 9: Usage Scenarios For Bat 300 Tempest Technology
USAGE SCENARIOS FOR BAT 300 TEMPEST TECHNOLOGY By properly setting some jumpers on the pcb, the TEMPEST BAT 300 device can be set to work in one of six possible modes as described below. ATTENTION: all jumpers must be inserted / removed ONLY with the device turned off for both low-power and always-on modes. -
Page 10: Summary Tables
Summary tables The following tables constitute a useful reference to correctly identify and choose the best connection method. The estimated on-time is calculated taken into account a couple of brand new and fully charged original batteries. The impact of a low power PIR sensor connected and powered by the device is also evaluated (not significant). -
Page 11: Connection Of Bat 300 Tempest Technology
+12 V DC powered from an external source any other piece of equipment that requires +12 V DC CONNECTION OF BAT 300 TEMPEST TECHNOLOGY 10.1 Principle of activation To shot fog the following requirements must be fulfilled SIMULTANEOUSLY:... -
Page 12: Connection To The Alarm Panel
Connection to the alarm panel BAT 300 Tempest Technology can be connected to an alarm panel in the same way as other models of the UR Fog range. It can be also driven by the serial interface (i.e., with an Active Cloud Board as example). -
Page 13: Inputs Connection
10.3 Inputs connection The ON/OFF output of this alarm panel is an NPN Open collector open when the system is OFF, which closes permanently to ground (GND) for as long as the same remains in ON. This output is connected to the pin 7 “ARM”. The ALARM output of this alarm panel is an NPN Open collector open when the system is OFF, which closes to ground (GND) for XX seconds in case of intrusion. -
Page 14: Shooting Time Programming
The cubic meters of generated fog are based on the rules defined by the EN 50131-8: 2019 standard which prescribes a visibility of less than 1 meter. The cubic meters of generated fog mentioned in the table are based on the UR Fog standard which prescribes a visibility of 50 cm. -
Page 15: Batteries
In this second case, replace the protection with a new on one. BATTERIES BAT 300 Tempest Technology is powered by two, bespoke, lead acid VRLA 12 V - 9 Ah batteries. With healthy and fully charged batteries it can remain operational without recharging for more than 6 months. -
Page 16: External Leds
NOTE 3: in any case, don’t position yourself below one meter away from the nozzle when the device is switched on. EXTERNAL LEDs BAT 300 Tempest Technology provide three external LEDs. The LEDs will emit a short blink once per minute (Low-power mode) or are always active (Always on mode) as follows:... -
Page 17: Application Of The Window Sticker
PERIODIC CHECKS UR Fog security fog systems do not require special controls. The system monitors its functions 24 hours a day, reporting any anomalies. It is therefore sufficient to manage the reports correctly. -
Page 18: Meaning Of The Led's, Faults & Solutions
MEANING OF THE LED’S, FAULTS & SOLUTIONS TEMPEST line: Meaning of the LED's, Diagnostic and troubleshooting ALWAYS-ON MODE: LED's always ON LED STATUS CAUSE MEANING BUZZER GREEN/BLUE/RED Led's are steady ON together for 5 sec Status Connection of the batteries - system switched ON 3 tones GREEN LED is OFF... -
Page 19: Accessories And Spare Parts
Orientable wall bracket CERTIFICATIONS All UR Fog devices and fluids comply with the provisions of the European and international authorities. Any certifications required in a specific country are the responsibility of that country's distributor. The documents relating to the certifications can be requested via email from assistenza@urfog.com WARRANTY The warranty of UR Fog BAT 300 TEMPEST TECHNOLOGY is 1 year. - Page 20 HYPO FLUIDS FOLLOW THE DATASHEETS INSTRUCTIONS AVAILABLE FOR DOWNLOAD ON WWW.PURIFOG.COM UR FOG Srl reserves the rights to modify the characteristics of the product for the sole purpose of improving its characteristics and performance. UR FOG S.r.l. Via Toscana 38 - 10099 San Mauro Torinese - Italy...
