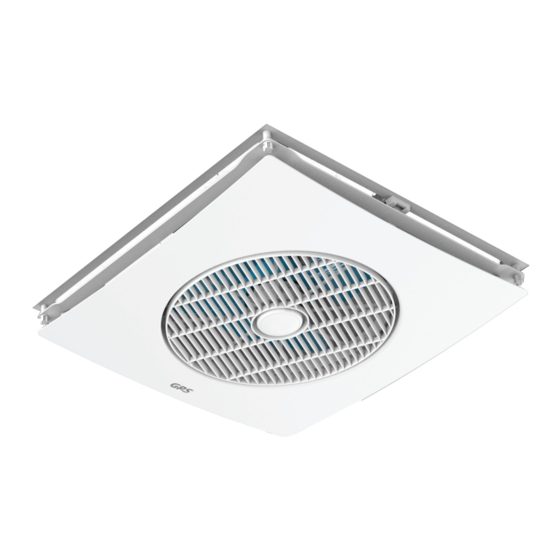

- Page 1 Pre-production release Scan QR code below for latest IOM Installation, Operation & Maintenance Manual ™ NOTICE: This product is to be used only as directed. Read entire manual before use. Do not use unless properly installed. www.globalplasmasolutions.com...
-
Page 2: What's Included
• The IDF-2 shall be installed such that it is at least 7.5' above the floor. • The IDF-2 is to be mounted on a suspended ceiling system (24” x 24”) that can fully support it's weight (11.5 lbs). • For non drop ceilings use the ceiling box mount accessory (sold separately). -
Page 3: Parts List
Parts List Housing Cover Motor Ionizer Fan Blade Fan Cap Bottom Housing Diffuser Diffuser Cap Installation 1. Remove the ceiling tile where the IDF-2 will be installed. - Page 4 2. Insert the IDF-2 diagonally through the opening and place gently onto the 2’ x 2’ ceiling frame. 3. Slide the adjacent ceiling tile away to allow easy access to the terminal block.
-
Page 5: Operation
1. The IDF-2 requires a 120-240 VAC power source. 2. GPS recommends the IDF-2 be connected to a switched power source such as a lighting circuit. 3. If wiring to a non-switched circuit, a means of disconnecting power from the fan is required. -
Page 6: Cleaning And Maintenance
Ionizer Cleaning Cycle The ionizer in the IDF-2 comes with a preset cleaning cycle designed to clean the emitters twice per day. Cleaning and Maintenance Cleaning and maintenance should only be performed by qualified personnel 1. Ensure that the IDF-2 is powered off... - Page 7 4. Remove the bottom housing for access to the fan blades. Use a Philips-head screwdriver and remove the screw located on the side of the fan. Remove 4 thumb screws located on each corner of the fan by rotating counter clockwise. 5.
-
Page 8: Troubleshooting
Diffuser motor malfunction Contact GPS representative for additional assistance Fan makes unusual noise IDF-2 is vibrating / out of balance Ensure IDF-2 is installed correctly Diffuser grille is in contact with main body Check and if necessary reattach the diffuser grille... - Page 9 3101 Yorkmont Road • Suite 400 Charlotte, NC 28208 980-279-5622 www.gpsair.com © 2023 GPS Air GPS-066-11-R23-IDF2 IOM GPS Air is the owner of certain trademarks that appear in our materials. Please visit www.gpsair.com/trademarks for a list of our marks.
