Summary of Contents for GPS IDF-2

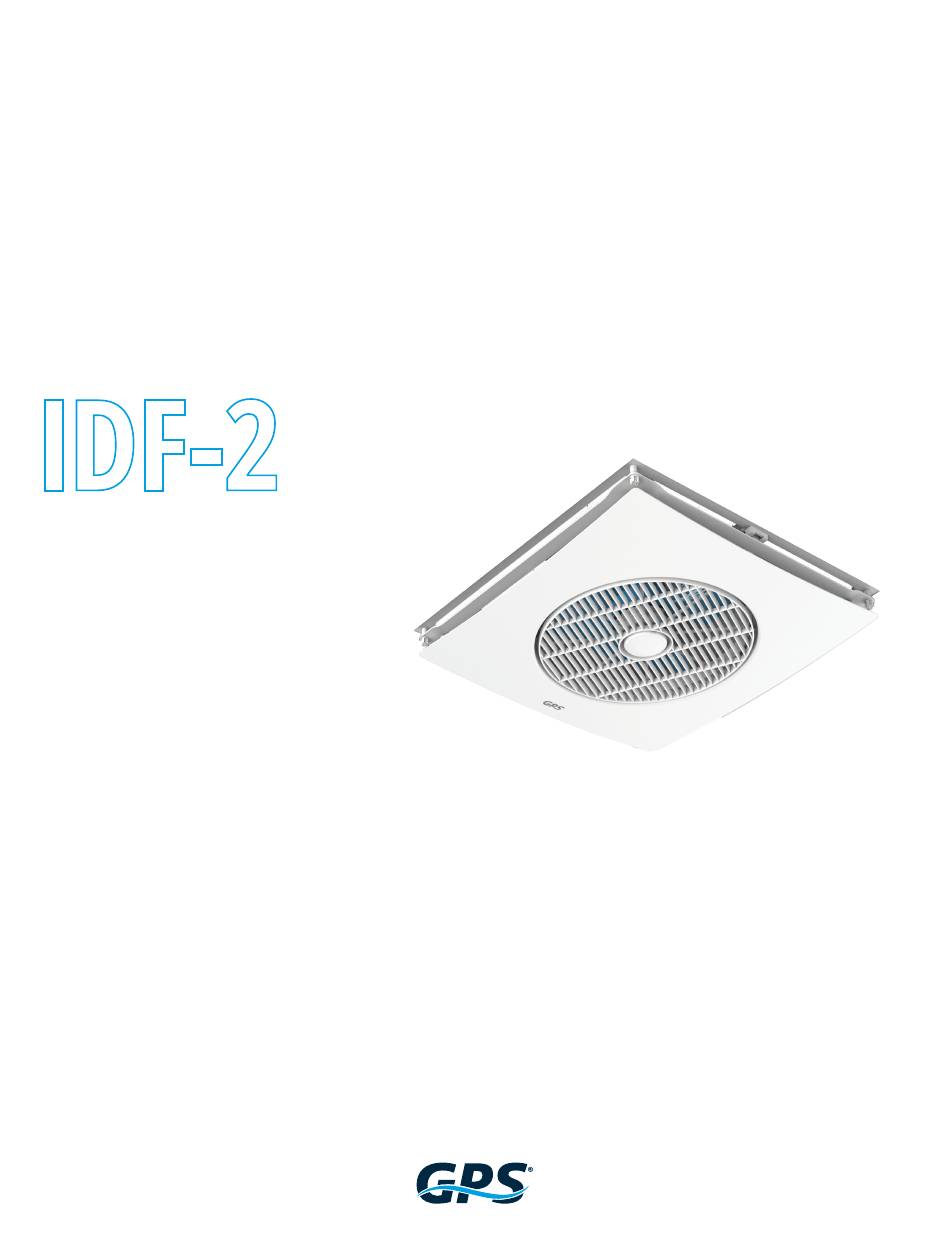

- Page 1 Pre-production release Data subject to change Installation, Operation & Maintenance Manual ™ NOTICE: This product is to be used only as directed. Read entire manual before use. Do not use unless properly installed. www.globalplasmasolutions.com...
-

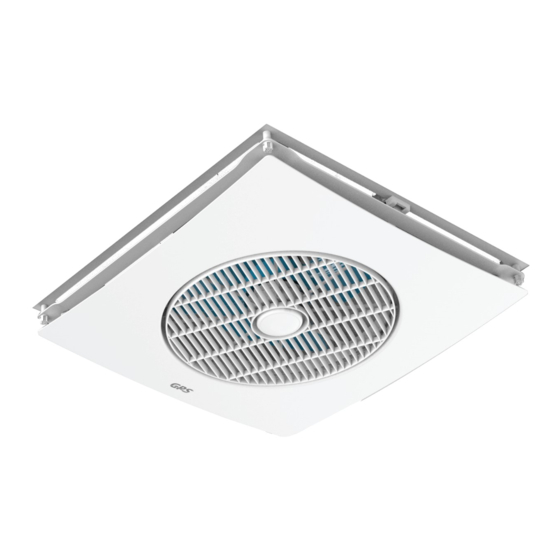

Page 2: What's Included
• The IDF-2 shall be installed such that it is at least 7.5' above the floor. • The IDF-2 is to be mounted on a suspended ceiling system (24” x 24”) that can fully support it's weight (11.5 lbs). • For non drop ceilings use the ceiling box mount. -
Page 3: Installation
1. Review the installation video at our website or scan the QR code opposite. Parts List Housing Cover Motor Ionizer Fan Blade Fan Cap Bottom Housing Diffuser Diffuser Cap 1. Remove the ceiling tile where the IDF-2 will be installed. - Page 4 2. Insert the IDF-2 diagonally through the opening and place gently onto the 2’ x 2’ ceiling frame. 3. Slide the adjacent ceiling tile away to allow easy access to the terminal block.
-
Page 5: Operation
4. Remove the terminal block cover with a Philips-head screwdriver. Wiring 1. GPS recommends the IDF-2 be connected to a switched power source such as a lighting circuit. 3. If wiring to a non-switched circuit a means of removing power is required. -
Page 6: Cleaning And Maintenance
Cleaning and Maintenance 1. Support the diffuser with one hand while removing the difuser cap (turn counter clockwise). Once removed use a clean cloth to wipe the diffuser (highlighted in blue). 2. Use a clean cloth to wipe the area highlighted in blue (shown in the figure below). - Page 7 3. Remove the bottom housing for access to the fan blades. Use a Philips-head screwdriver and remove the screw located on the side of the fan. Remove 4 thumb screws located on each corner of the fan by rotating counter clockwise. 4.
-
Page 8: Troubleshooting
Troubleshooting PROBLEM CHECK SOLUTIONS Remote does not operate fan IDF-2 cannot connect with power Check power and plug (Fan does not rotate) Remote control indicator light does not work Replace battery Signal receiver malfunction Contact GPS representative for additional assistance... - Page 9 3101 Yorkmont Road • Suite 400 Charlotte, NC 28208 980-279-5622 www.gpsair.com © 2023 GPS Air GPS-066-11-R20-iDF2 IOM GPS Air is the owner of certain trademarks that appear in our materials. Please visit www.gpsair.com/trademarks for a list of our marks.
