TECHNICAL MANUAL
VRF INVERTER MULTI-SYSTEM
AIR-CONDITIONERS
(INDOOR UNIT)

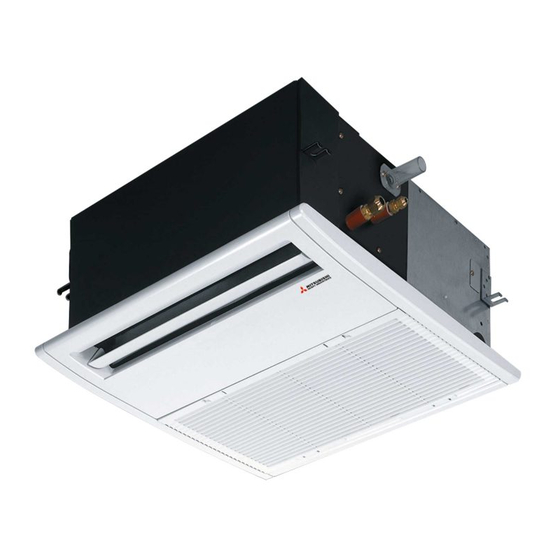

Ceiling cassette-1 way compact type
FDTQ22KXE6F
28KXE6F
36KXE6F
Duct connected (thin)-Low static pressure type
FDUT15KXE6F-E
22KXE6F-E
28KXE6F-E
36KXE6F-E
45KXE6F-E
56KXE6F-E
Duct connected-Compact and flexible type
FDUH22KXE6F
28KXE6F
36KXE6F
Note:
•
(1) This document describes the indoor units with service code /F (with motion sensor system
function).
Manual No.'20 • KX-T-347
