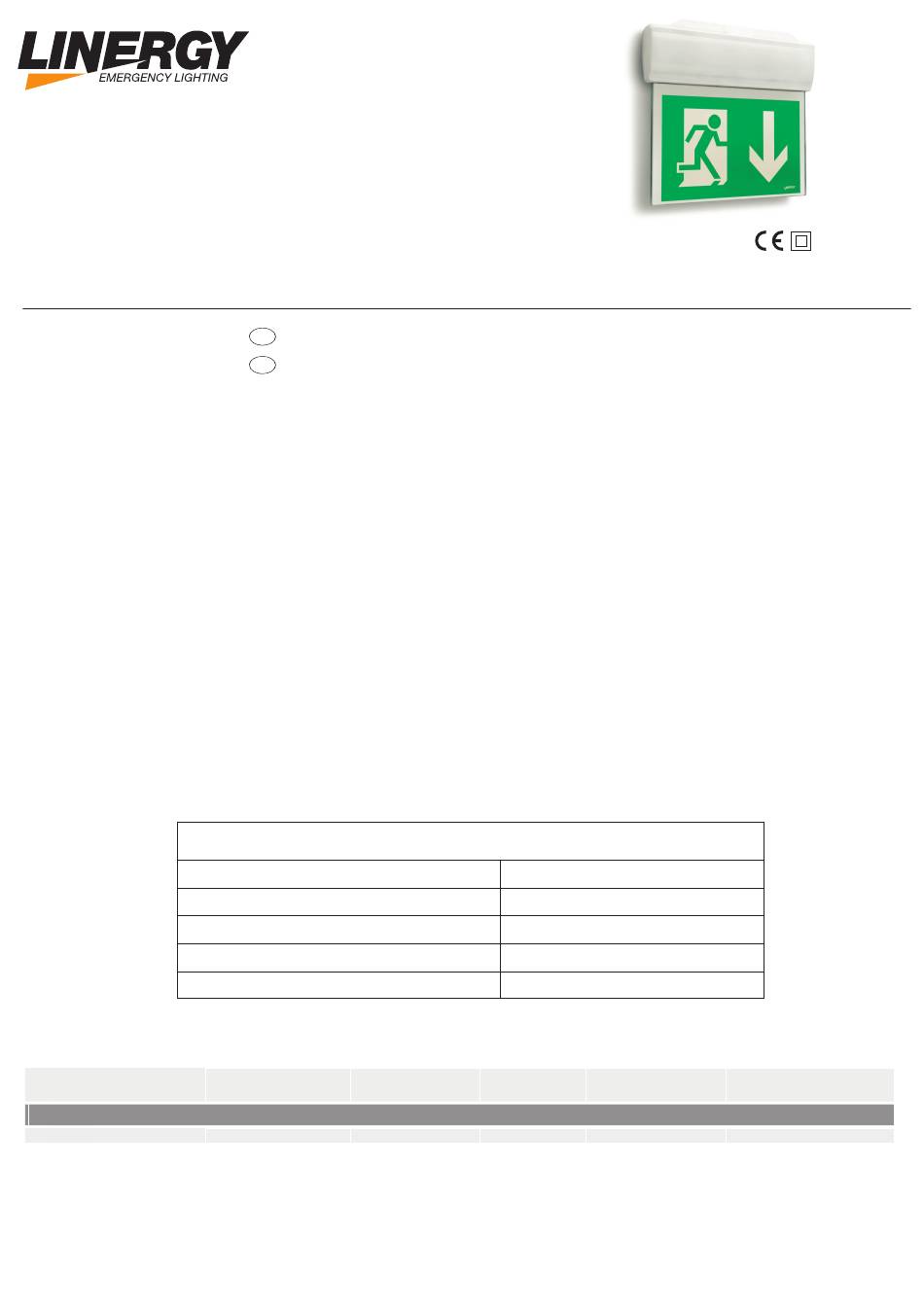

Linergy LEXIT Use Instruction

Spy system, signalling luminaire for centralized monitoring

Advertisement

Quick Links

APPARECCHIO DI SEGNALAZIONE
PER CONTROLLO CENTRALIZZATO
CARATTERISTICHE GENERALI:
- Led spia verde per presenza rete.
- Led spia rosso per segnalazione anomalie solo modelli -ABRT
- Funzionamento con batterie ricaricabili al Ni-Cd.
- Dispositivo di ricarica delle batterie a corrente costante.
- Dispositivo di protezione contro la scarica eccessiva della batteria.
- Possibilità di messa in stato di riposo tramite il comando remoto Commander
(opzionale).
- Corpo in materiale plastico conforme alle normative vigenti.
- Classe di isolamento II
BATTERIE:
Sostituire la batteria ogni quattro anni o quando l'autonomia non è più quella nominale.
Attenzione: Le batterie al Ni-Cd e Ni-MH sono inizialmente scariche, la prima
ricarica deve durare almeno 48h.
FUNZIONI DI TEST, SOLO PER MODELLI ENERGY TEST -ABRT
- La lampada esegue due tipi di test temporizzati: il test funzionale e il test di autonomia.
I test funzionale e di autonomia possono essere effettuati anche manualmente con il
Commander quando la batteria è in ricarica di mantenimento.
Durante il tempo di attesa il led verde lampeggia per segnalare che la lampada sta
aspettando di potere compiere i test.
Test funzionale: viene effettuato ogni 15 giorni e consiste nella accensione del LED di
potenza per una durata di 20 secondi.
Test di autonomia: viene effettuato ogni 90 giorni e consiste nella completa scarica della
batteria.
VERDE ACCESO FISSO / GREEN ON
VERDE LAMPEGGIANTE / GREEN FLASHING
ROSSO LAMPEGGIANTE LENTO / RED SLOW FLASHING
ROSSO LAMPEGGIANTE VELOCE / RED FAST FLASHING
ROSSO ACCESO FISSO / RED ON
CODICE / CODE
LX32N10ABRC
LX32N30ABRC
LEXIT
SPY SYSTEM
SIGNALLING LUMINAIRE FOR
CENTRALIZED MONITORING
ISTRUZIONI PER L'INSTALLAZIONE E L'USO
I

INSTALLATION AND USE INSTRUCTIONS

UK
SEGNALETICA LED / LED SIGNALLING
ASSORBIMENTO /
AUTONOMIA /
CONSUPTION (W)
AUTONOMY
3,0
1,7
230 Vac - 50 Hz

GENERAL CHARACTERISTICS:

- Indicator green Led for the presence of the power supply.
- Indicatore red Led for the warnings signallings, only for -ABRT models.
- Operation with rechargeable Ni-Cd.
- Constant current electronic device for the charge of the battery.
- Electrical protection device for the excessive discharge of battery.
- Possibility to be put in the stand-by mode by remote control Commander (optiona)
- Plastic body in accordance with the rules in force.
- Insulating Class II

BATTERIES:

It is recommended to substitute each battery every four years or when the nominal autonomy
is not guaranteed.
Warning: The Ni-Cd and Ni-MH batteries are sold uncharged: the first charge must be
48h long.

TEST FUNCTIONS, ONLY FOR SELF TEST MODELS - ABRT:

-The lamp makes two types of deliberate time tests: the functional test and the duration
test. The functional test and the duration test can be made also in the manual way with the
use of the Commander in the normal charge mode.
In the time of waiting the green led flashes to indicate that the lamp is waiting for the test.
The functional test: is done every 15 days and consists in the lighting of the fluorescent
lamp for a duration of 10 seconds.
The duration test: is done every 90 days and consists in the complete discharge of the
battery.
PRESENZA RETE, NESSUNA ANOMALIA
MAINS SUPPLY ON, NO WARNING
TEST IN CORSO / TEST IN PROGRESS
TEST DISABILITATI, LAMPADA INIBITA
TEST DISABLED, INHIBIT LUMINAIRE
GUASTO BATTERIA
BATTERY FAULT
ANOMALIA LAMPADA
WARNING LUMINAIRE
TIPO /
TYPE
SPY SYSTEM
1 h
SA
3 h
SA
EN 60598-1
EN 60598-2-22
UNI EN 1838 2002/95/CE RoHS
VISIBILITA' / VISIBILITY
BATTERIA / BATTERY
32 m
Ni-Cd 4,8V 0,5 Ah
32 m
Ni-Cd 4,8V 0,5 Ah
IP 65
ISTLEXITSPY- Ver 2.0
