Page 1

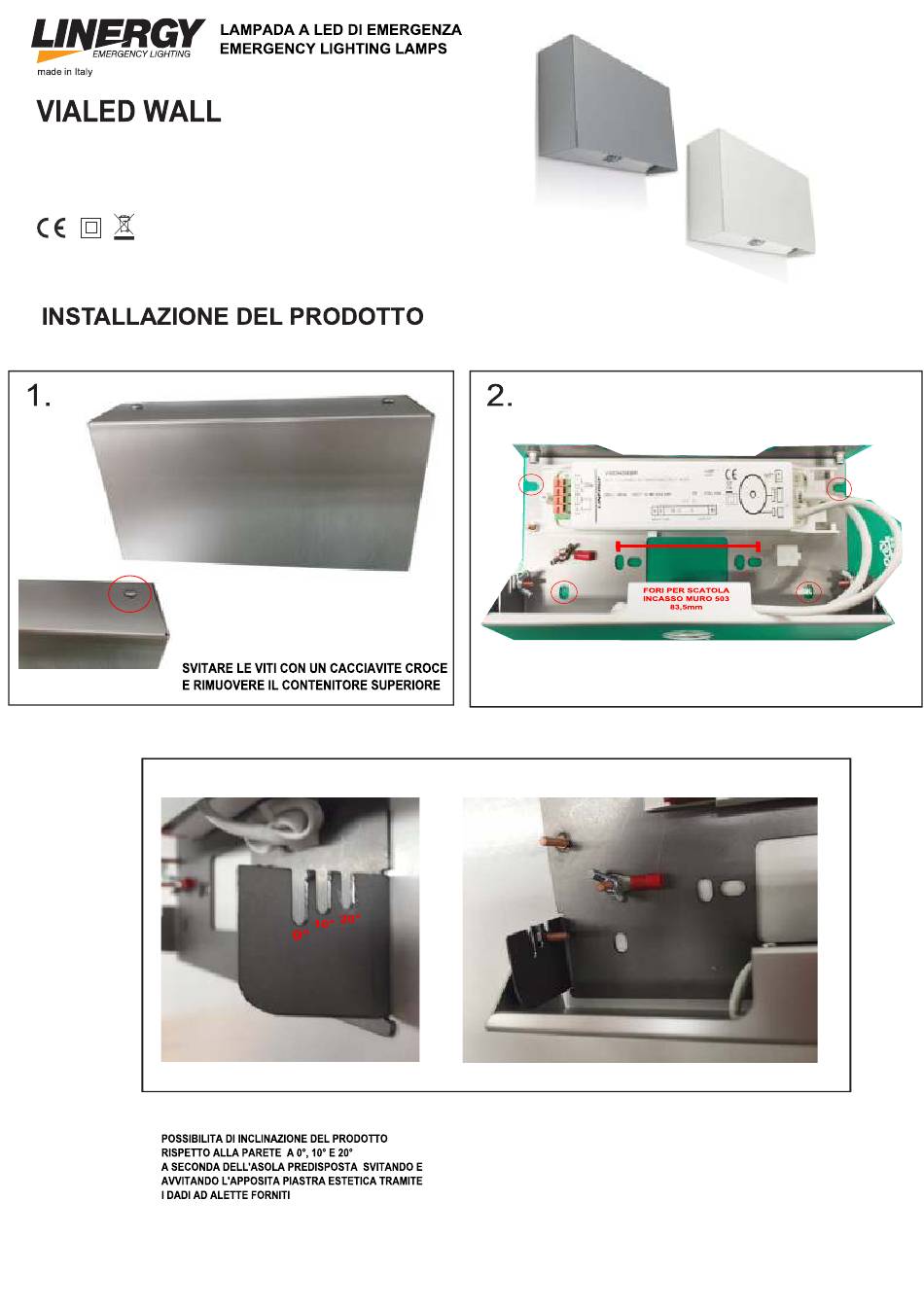

SPY SYSTEM WIRELESS IP 20 230 Vac - 50 Hz INSTALLATION PRODUCT FAR PASSARE I CAVI DALLA FESSURA AL CENTRO E POI FISSARE LA PIASTRA A MURO TRAMITE GLI APPOSITI FORI EVIDENZIATI IN ROSSO unscrew the screws with a screwdriver make the slot in the center and then fix the and remove the upper container wall plate through the holes shown in red...
Page 2
Inserire il disco come in figura per ottenere IP42 solo per lente asimmetrica Insert the disk as shown in the figure in order to have IP42 only for asymmetric lens INSERIRE LE LENTI IN DOTAZIONE INSERT THE LENSES SUPPLIED INSERT THE UPPER CONTAINER REMOVED PREVIOUSLY AND FIX IT WITH THE SPECIAL SCREWS TO COMPLETE THE INSTALLATION FLUSSO/ FLUX...
Page 3
SCHEMI DI COLLEGAMENTO / WIRING DIAGRAMS BATT J4 LED2 CAVO LED VERDE/ROSSO VIALED DRIVER MODULE GREEN / RED LED CABLE on/off LED1 CAVO LED LED CABLE Batteria / battery BATT cavetto connesso di default LED2 VIALED cable, default connection DRIVER MODULE on/off LED1 FUNZIONAMENTO WIRELESS - WIRELESS OPERATION...
Page 4
Autonomy test: it is performed every 90 days and consists in the complete discharge of the On line technical support battery. support@linergy.it LINERGY SRL - via A. De Gasperi 9 - Acquaviva Picena (AP) - ITALY - tel.0735.5974 - fax 0735.597474 - www.linergy.it - info@linergy.it -ISTVWSPY-W - Ver. 1.0...
