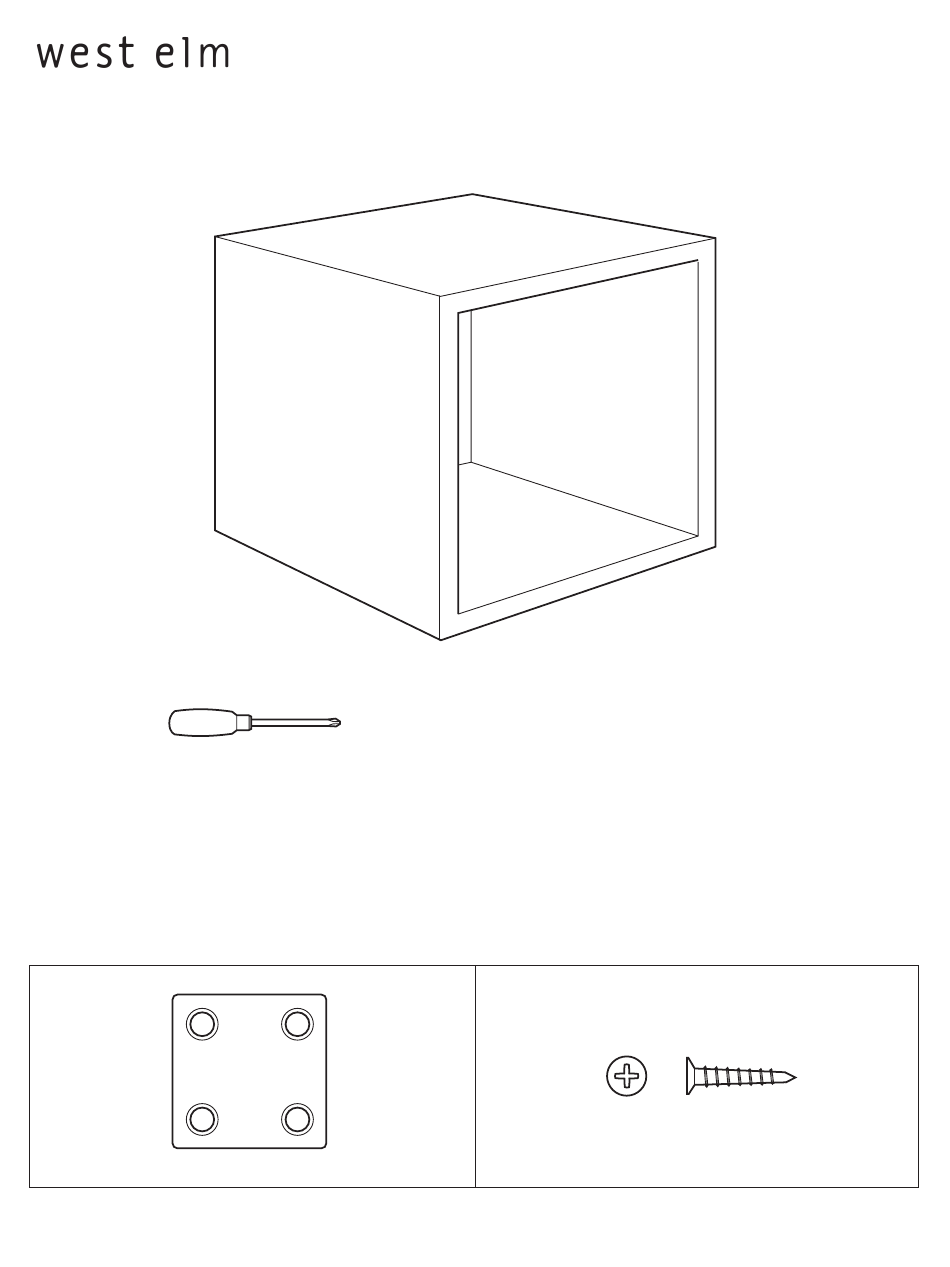

Tools required:
!
Do not throw away packaging materials until assembly is complete.
!
Assemble this item on a soft surface, such as cardboard or carpet, to protect the finish.
!
Use mounting hardware to secure unit(s) to base and units together when placed beside or on top of each other.
!
Use overbalance protection hardware (included with base) when stacking 3 units high.
!
Do NOT stack more than 3 units high.
MOUNTING HARDWARE (included with each modular unit):
A
mounting plate 2x
6183156 / 6183164 - 05/24/04

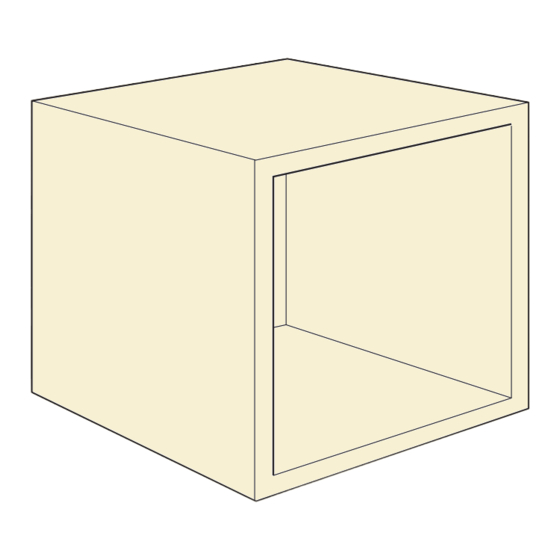

: modular storage collection - open cube
B
screw 4x
assembly instructions
page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for West Elm modular storage 6183156
Summary of Contents for West Elm modular storage 6183156
- Page 1 : modular storage collection - open cube assembly instructions Tools required: Do not throw away packaging materials until assembly is complete. Assemble this item on a soft surface, such as cardboard or carpet, to protect the finish. Use mounting hardware to secure unit(s) to base and units together when placed beside or on top of each other. Use overbalance protection hardware (included with base) when stacking 3 units high.
- Page 2 : modular storage collection - open cube assembly instructions 1. Connect unit to base or units together with mounting plates (A) and screws (B). Insert screws into pre-drilled holes as shown. Tighten with a Philip's head screwdriver. secure units together when stacking secure units together when stacking...
- Page 3 : modular storage collection - open cube assembly instructions Examples of how units can be placed on bases (back view): 6183156 / 6183164 - 05/24/04 page 3 of 4...
- Page 4 : modular storage collection - open cube assembly instructions Examples of how units can be placed on bases (back view): 6183156 / 6183164 - 05/24/04 page 4 of 4...
