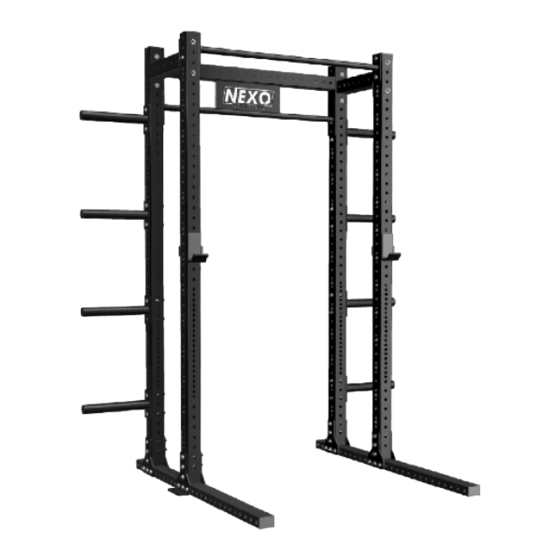

Nexo N300 Instructions Manual

Commercial half rack
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Commercial Half Rack

Advertisement

loading
Need help?

Need help?

Do you have a question about the N300 and is the answer not in the manual?

Questions and answers

Related Manuals for Nexo N300

Summary of Contents for Nexo N300

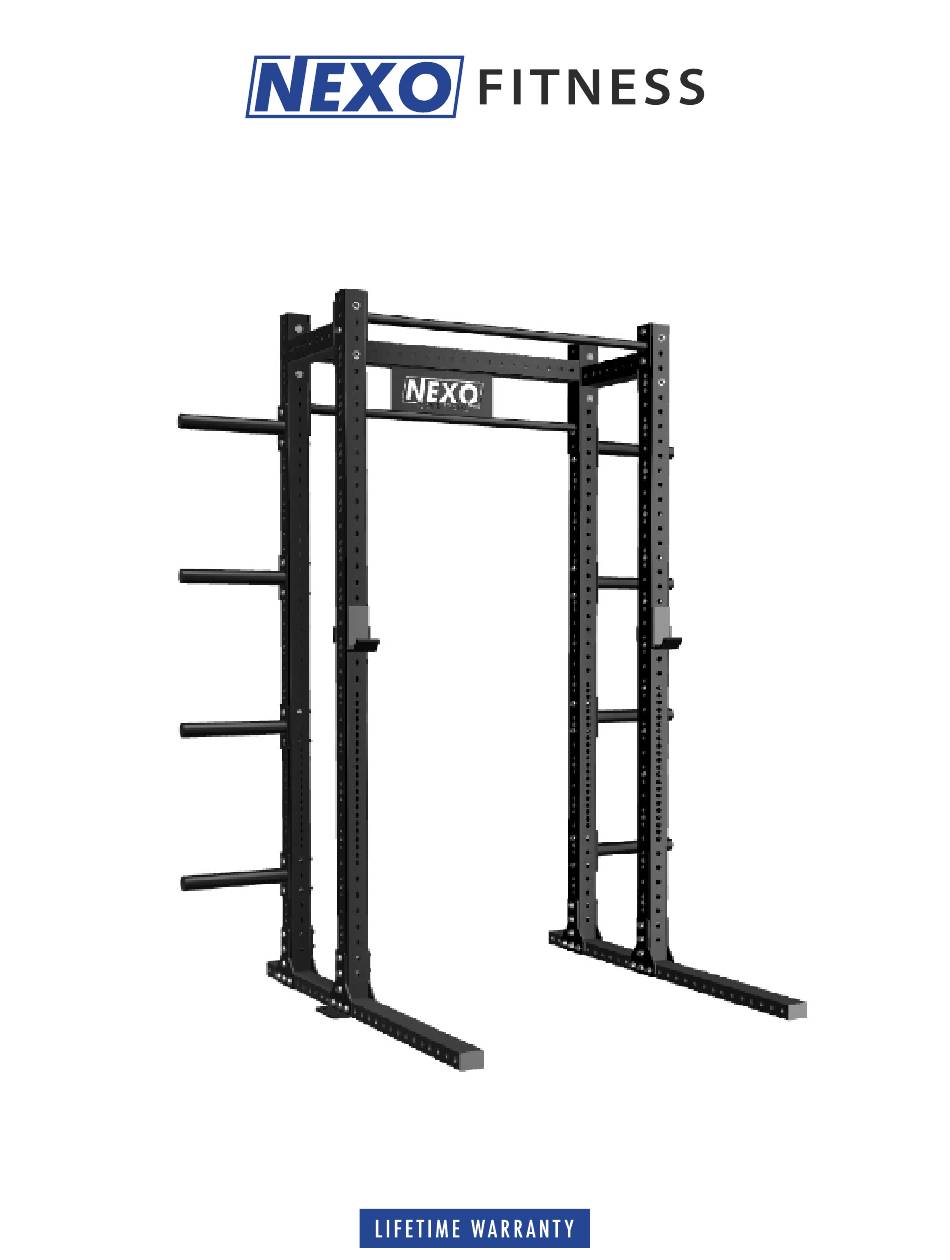

  • Page 1 Commercial Half Rack...

  • Page 2: Parts Check

    PARTS CHECK All nuts and bolts use a 19mm socket or wrench. 4x Uprights 2x Lower Crossbeams 2x Square Beams 1x Pull-up Bar 6x Upright Brackets 2x Bolt Down Brackets 2x J-Cups 56x Bolt Sets 8x Weight Pegs 1x Nameplate...
  • Page 3 STEP 1 Assemble each side of the rackon the ground—the only difference between each side is the position of the Bolt Down Brackets. Using 2x Uprights, 1x Lower Crossbeam, 1x Square beam, 3x Upright Brackets, 1x Bolt Down Bracket, and 16x Bolt Sets for each side. Start the rear bracket on the 3rd hole from the back of the crossbeam and the front bracket 7 holes after the rear bracket.
  • Page 4 STEP 2 With a partner, stand each side up and connect the Pull-up bar at your desired height using 4x bolt sets.
  • Page 5 STEP 3 Now assemble the nameplate beam to the rear upright using 4x Bolt Sets.
  • Page 6 STEP 4 Assemble the 8x Weight Pegs at your desired locations and then tighten up all bolts. Congrats! Your rack is ready to use, be sure to check your bolts before every workout If you have any questions at all please don’t hesitate to call us at 904.747.0789 or email sales@strengthdepot.com...
