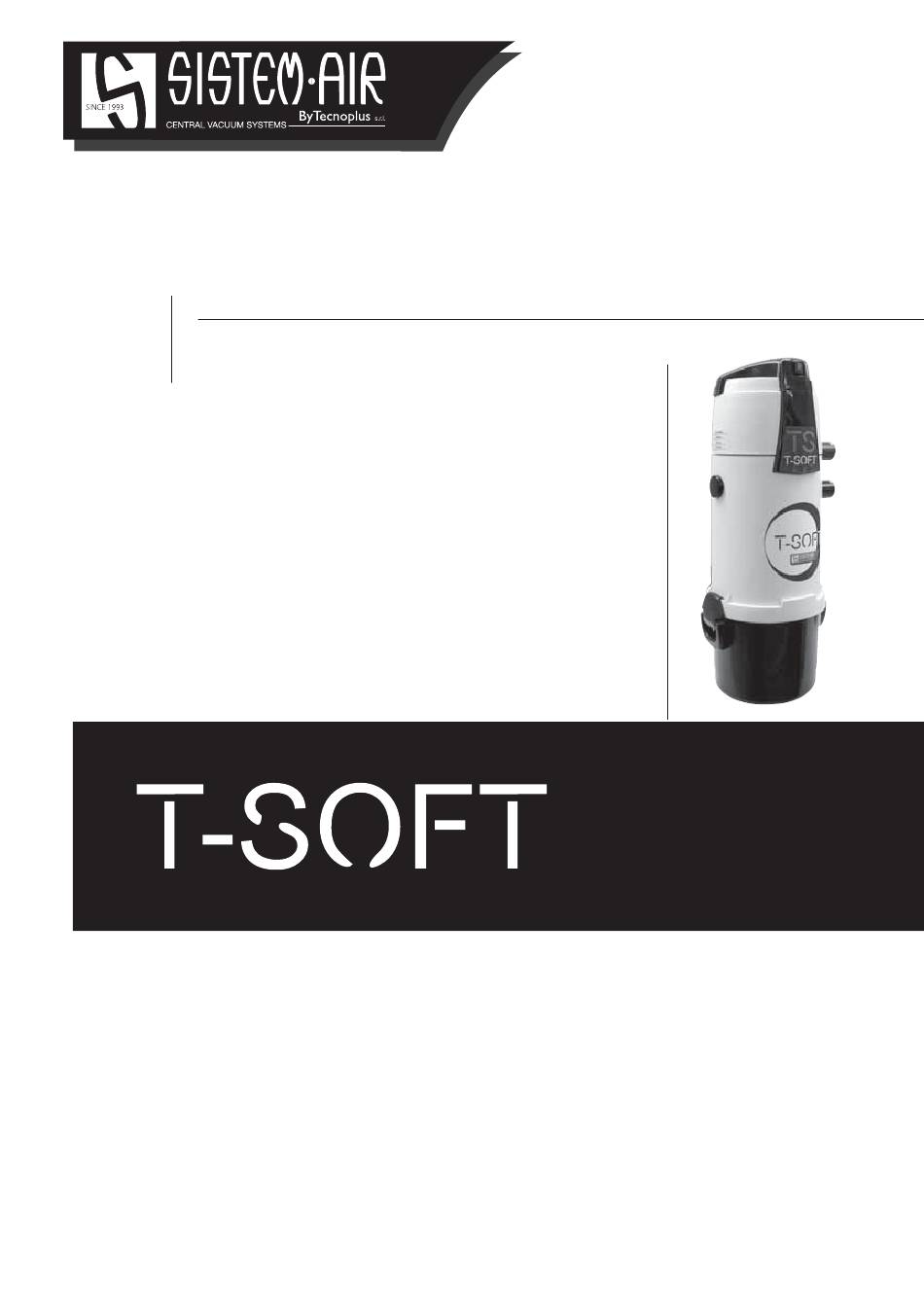

- Page 1 w w w . s i s t e m a i r . c o m USER MANUAL V 1.0.0...

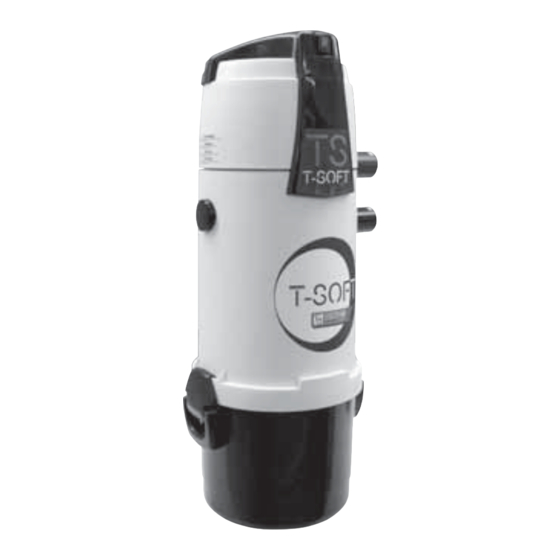

- Page 3 User manual • Type: vacuum cleaner civil sector Line • Model: T-SOFT T-SOFT • Revision 1.0.0 INDEX TECNICAL FEATURES AUTHORIZED USE OF THE VACUUM CLEANER UNAUTHORIZED USE OF THE VACUUM CLEANER SAFETY FEATURES 4.1 Warnings 4.2 IP protection degree 4.3 Electrical insulation degree 4.4 Declaration of absence of dangerous substances 4.5 Fixed closure guards safety 4.6 Movable closure guards safety...
-
Page 4: Tecnical Features
User manual T-SOFT ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 1 - TECNICAL FEATURES T-SOFT Model Article 8004.SF Air inlet/outlet Ø mm Protection degree Power supply V ac 220/240 Frequency Motor power 1,35 Absorption Inlet power supply V dc Max air volume Depressione mbar Filtering surface... -
Page 5: Authorized Use Of The Vacuum Cleaner
2 -AUTHORIZED USE OF THE VACUUM CLEANER The T-Soft vacuum cleaner has been designed exclusively to vacuum clean dust, very small-size solids and dry materials. The use of the central vacuum cleaner is authorized for household and civil uses, connected to a PVC wall-traced piping network and to a standard home electrical wiring. The vacuum cleaner can be installed in domestic dwellings with the following characteristics: •... -
Page 6: Safety Features
All materials and components used to manufacture this product comply with CE safety regu- lations. All relevant certifi cations are held at the offi ces of TECNOPLUS S.R.L. In compliance with safety regulations detailed in the Machinery Directive 2006/42/CE (transposed into... - Page 7 There are no movable closure guards assembled on the appliance. Every guard assembled is consid- ered a fi xed guard and is fastened with special screws. TECNOPLUS s.r.l. reminds you that it is abso- lutely forbidden to replace the screws used for the design and manufacture the appliances with screws with feature different characteristics.
- Page 8 User manual T-SOFT ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 4.7 Identifi cation plate It is present on the side of the tube plate CE network attack. Do not remove or damage the label. Name of the manufacturer Central type ......................CE compliance data Model: Electrical insulation...
- Page 9 Unscrewing the screw and re- move the top cover Remove the plate; unscrew the screw under the sticker; re- move the front panel Reassemble, by changing the position of the front panel Reassemble the top cover, place the power ca- ble of the card by inserting it into the guides and replace the disk spongy dustproof so close the cable exit hole.
-
Page 10: Installation
User manual T-SOFT ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 6 - INSTALLATION - ATTENTION - THE UNDERMENTIONED OPERATION MUST BE CARRIED OUT BY QUALIFIED STAFF 6.1 Preliminary operations The suction system is shipped to the customer completely assembled and packed. Before switching the machine on, the following checks are advisable: •... - Page 11 6.3 Installation of the suction unit The vacuum cleaner must be securely and permanently fi xed to a solid wall using the bracket provided and the suitable wall anchors or plugs taking into account that the total weight to be supported can be seven/eight times that of the system itself.
- Page 12 User manual T-SOFT ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 6.4 How to connect to the pipe network 1. Using the sleeve, connect the dust inlet coupling of the vacuum cleaner, identifi ed with (A) in the picture, to the suction pipe from the piping network. 2.
-
Page 13: Electric Connection
6.5 Electric connection ATTENTION! The electric connection must be carried out by qualifi ed staff ONLY Before plugging in the suction unit, make sure that the main power supply corresponds to the suctuin unit power supply (please refer to data indicated on the identifi cation plate). The constructor declines all responsibility for damages to persons or objects due to an electric system not in compliance with the regulations in force. -
Page 14: Maintenance
User manual T-SOFT ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 7 - MAINTENANCE ALWAYS UNPLUG THE POWER SUPPLY CABLE FROM THE POWER SUPPLY SOKET AND ALWAYS WEAR PROTECTION GLOVES AND GOGGLES BEFORE CARRYING OUT ANY TECHNICAL OR MAINTENANCE OPERATION. 7.1 Programmed routine maintenance Maintenance should be carried out according to the effective running time of the system so to ensure effi... - Page 15 7.4 Unloading the dust container Switch the suction system off by pressing the ON/OFF switch Remove the dust bin Remove the conveyor cone Empty the dust bin Put back into place the cone conveyor. Reassemble the dust bin inside its housing under the suction system and lock the closing handles. Switch the suction system on by pressing the ON/OFF switch.
- Page 16 User manual T-SOFT ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 7.5 Reconditioning of the fi lter cartrige ATTENTION YOU MUST ALWAYS CHECK THE RIGHT POSITIONING AND TIGHTENING OF THE FILTER CARTRIDGE. A WRONG POSITIONING OR A LOOSE FILTER CARTRIDGE MAY CAUSE A SERIOUS DAMAGE TO THE PRODUCT.
-
Page 17: Repairs And Spare Parts
8 -REPAIRS AND SPARE PARTS 8.1 Servicing criteria Any intervention on the vacuum cleaner for repairs and/or maintenance which are not expressly authorized in this manual is absolutely forbidden. Any repair for breakage or malfunctioning must be carried out by qualifi ed Technical Assistance personnel. Any intervention of non-authorized personnel will result in the invalidation of any guarantee of the product and the manufacturer will not be held responsible for any eventual damage to persons and/or objects due to such interventions. -
Page 18: Troubleshooting
User manual T-SOFT ByTecnoplus s.r.l. CENTRAL VACUUM SYSTEMS 9 - Troubleshooting PROBLEM CAUSE SOLUTION The power supply cable in Plug in the power supply unplugged cable The start push button of the Press the start push botton suction unit is unplugged No air suction in all the inlets The start signal cable is Plug in the start cable (micro... - Page 19 Register your warranty Registra la tua garanzia Enregistrez votre garantie Registrieren Sie Ihre Garantie Registre su garantía sistemair.it/registrazione-prodotto...
- Page 20 F0920524 Sistem Air 27020 Gravellona Lomellina (PV) ITALIA - Via Cilavegna, 53 - GPS: N: 45° 19’ 28” ; E: 8° 45’ 32” Group Tel. + 39 0381 650082 - Fax +39 0381 650120 - info@sistemair.com...
