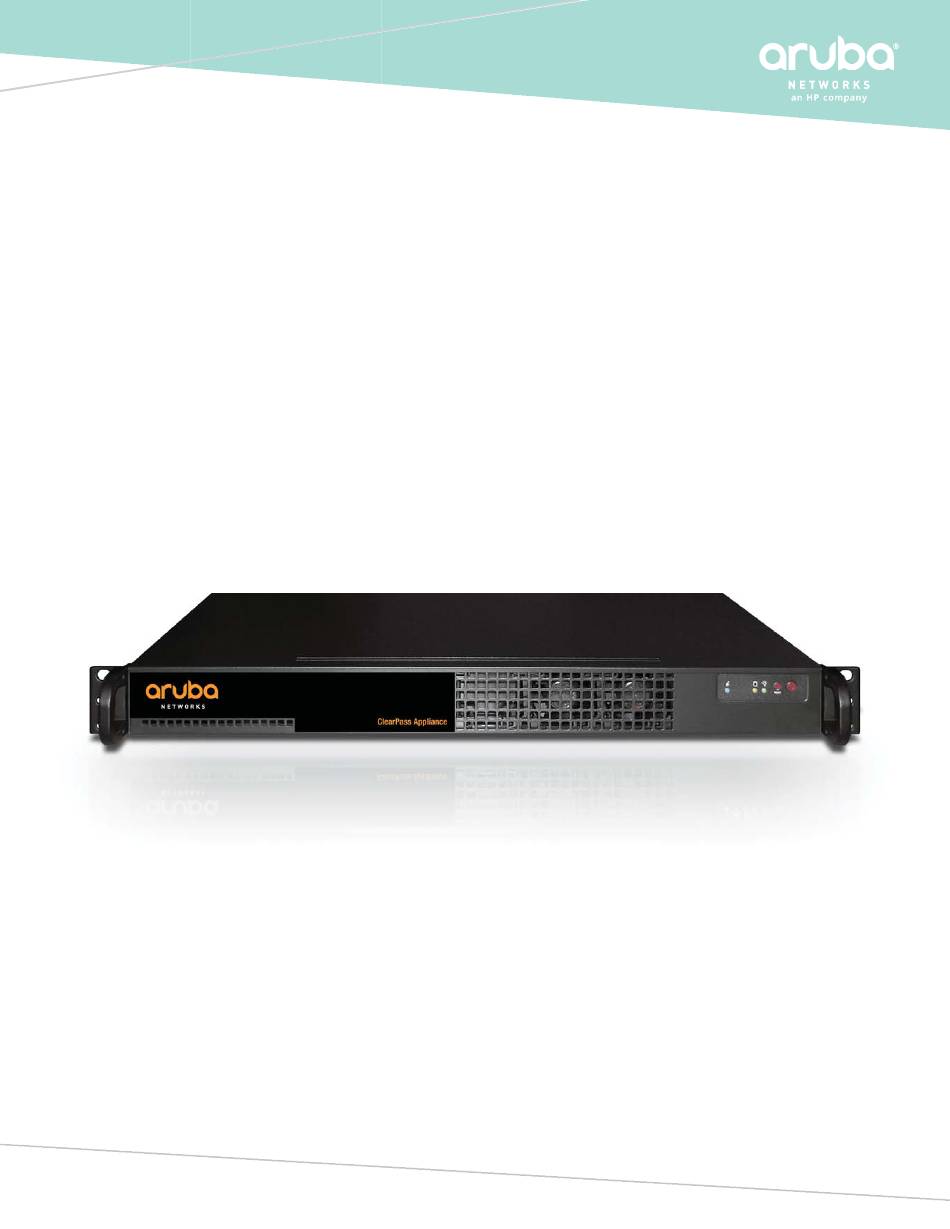

- Page 1 ClearPass Appliance Hardware Installation Guide...
-
Page 2: Table Of Contents
HARDWARE INSTALLATION GUIDE HARDWARE INSTALLATION GUIDE CLEARPASS APPLIANCE CLEARPASS APPLIANCE Table of Contents Section 1 Safety Notice and Warnings .......... -
Page 3: Safety Notice And Warnings
HARDWARE INSTALLATION GUIDE HARDWARE INSTALLATION GUIDE CLEARPASS APPLIANCE CLEARPASS APPLIANCE Safety Notice and Warnings FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. -
Page 4: Electrical And General Safety Guidelines
HARDWARE INSTALLATION GUIDE HARDWARE INSTALLATION GUIDE CLEARPASS APPLIANCE CLEARPASS APPLIANCE Electrical and General Safety Guidelines CAUTION This appliance is intended for installation in restricted areas only. Initial setup and maintenance should be performed by qualified personnel. CAUTION Power down the appliance following the operating system’s proper power-down procedure using the front panel power button. - Page 5 HARDWARE INSTALLATION GUIDE HARDWARE INSTALLATION GUIDE CLEARPASS APPLIANCE CLEARPASS APPLIANCE Electrical and General Safety Guidelines (continued) WARNING Disconnect the power supply at the circuit breaker before accessing any components. Turning off the system power supply switch does not reduce the risk of electrical shock from the power supply terminal block.
-
Page 6: Site Preparation
HARDWARE INSTALLATION GUIDE HARDWARE INSTALLATION GUIDE CLEARPASS APPLIANCE CLEARPASS APPLIANCE Site Preparation Setup Location, Rack, and Appliance Precautions • Elevated Operating Ambient Temperature - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment might be greater than room ambient temperature. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer. -
Page 7: Installing The Appliance In A 4-Post Rack
HARDWARE INSTALLATION GUIDE HARDWARE INSTALLATION GUIDE CLEARPASS APPLIANCE CLEARPASS APPLIANCE 6A. Installing the Appliance in a 4-Post Rack Step 1 • On each side of the rack, install two rack clips in the top and bottom of a group of three holes, as shown. -
Page 8: Installing The Appliance In A 2-Post Rack
HARDWARE INSTALLATION GUIDE HARDWARE INSTALLATION GUIDE CLEARPASS APPLIANCE CLEARPASS APPLIANCE 6B. Installing the Appliance in a 2-Post Rack Step 1 • Install the appliance in the 2-post rack as shown. Insert one M5 x 12 screw* and one M5 x 12 cone... -
Page 9: Rear Panel Connections And Cabling
HARDWARE INSTALLATION GUIDE HARDWARE INSTALLATION GUIDE CLEARPASS APPLIANCE CLEARPASS APPLIANCE Rear Panel Connections and Cabling Power supply module fan Reserved for future use (eth3) Reserved for future use (eth2) Power supply AC inlet USB ports VGA port Serial port Management port (eth0) Unit identification button... -
Page 10: Front Panel Operation
Red LED Red LED 1344 CROSSMAN AVENUE, SUNNYVALE, CA 94089 1-866-55-ARUBA | TEL: +1 408-227-4500 | FAX: +1 408-227-4550 | INFO@ARUBANETWORKS.COM www.arubanetworks.com ©2015 Aruba Networks, Inc. Aruba Networks’ trademarks include AirWave ® , Aruba Networks ® , Aruba Wireless Networks ®...
